CTEK Z4200U SkyRouter - Manual (Page 15)

26 October 2012
11
4.2 Interfaces
4.2.1 Configuring The Wireless Interface
The configuration screen for the Model Z4200 (EVDO and 1xRTT) wireless interface is shown below in Figure 8 and
described in the text following. Figure 10 and its associated text describes the wireless interface provided with the Model
Z4400 for use on HSPA, UMTS, GPRS, and EDGE networks.

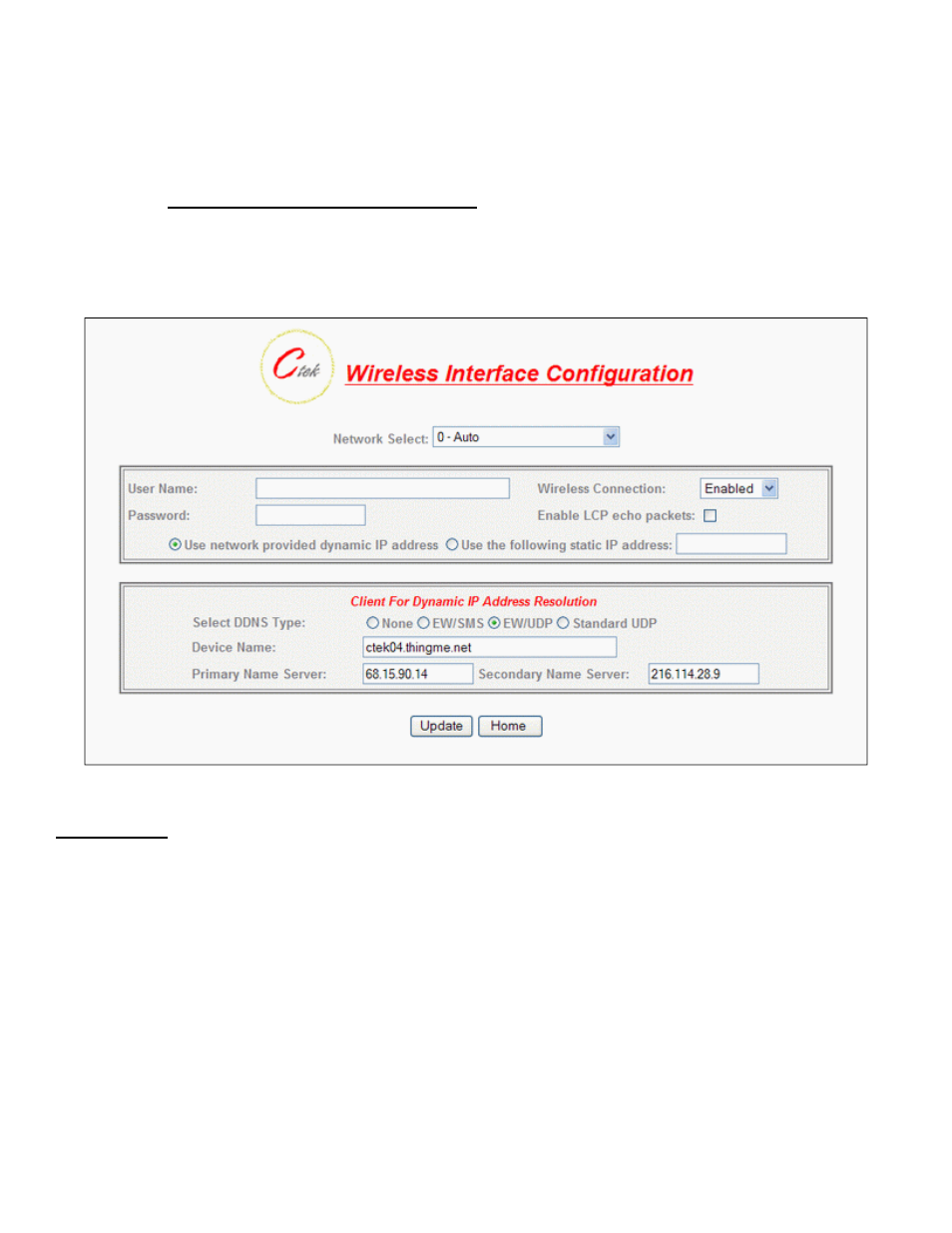

Figure 9 - Z4200 (CDMA) Wireless Interface
Network Select – Note: This setting should only be changed after consulting with Ctek Support. This pull down
menu allows the user to control the home network setting of the CDMA connection, effectively limiting the scope of the
Preferred Roaming List (PRL) assigned by your wireless network operator. The possible settings are shown below. The
EV-DO choices are only available on the Z4200.
