Roam Status – Indicates the network’s view of the current geographic location of your router. The possible values are
“Not Roaming”, or “Roaming”. An indication of Roaming may or may not impact your data transmission costs. Charges
are a function of your rate plan, not necessarily linked to the networks notion of roaming.
Call Status – Indicates the current status of network registration. Possible values are “Attached”, or “Not Attached”.
WCDMA Channel - The air interface channel number that the radio is currently operating on
RRC State - The current state of the Radio Resource Control. Indicates up and down channel capabilities.
Current IP Address – The Internet Protocol (IP) address assigned to this router by the serving wireless network. If this
field is blank a connection does not currently exist.
Subscriber ID (IMSI) – Identifies the subscriber. IMSI is contained in the SIM.
Equipment ID (IMEI) – Identifies a particular piece of hardware, specifically the radio within the SkyRouter
Radio Type – Displays the Radio Manufacturer
Firmware Rev. – Displays the firmware revision level of the radio.
Phone Number (MSISDN) – The network address of the unit
Short Message Service Center Address. - A number prefixed with a plus (+) sign that specifies the service center that
will handle SMS traffic. Provided by the network operator.
Model – The model number of the radio installed.
Hardware Rev. – If available displays the revision level of the radio module
View All Available Networks (button) - When pressed this button will add a third panel to the Wireless Status screen
that will display all HSPA/UMTS/GSM networks visible to the radio. It can take 30 or more seconds for this panel to be
populated while the radio scans all available spectrum.
4.3.2 Ethernet Status
Indicates the current LAN side IP address that the router is using. MAC Address is a vendor and machine specific
identification code.

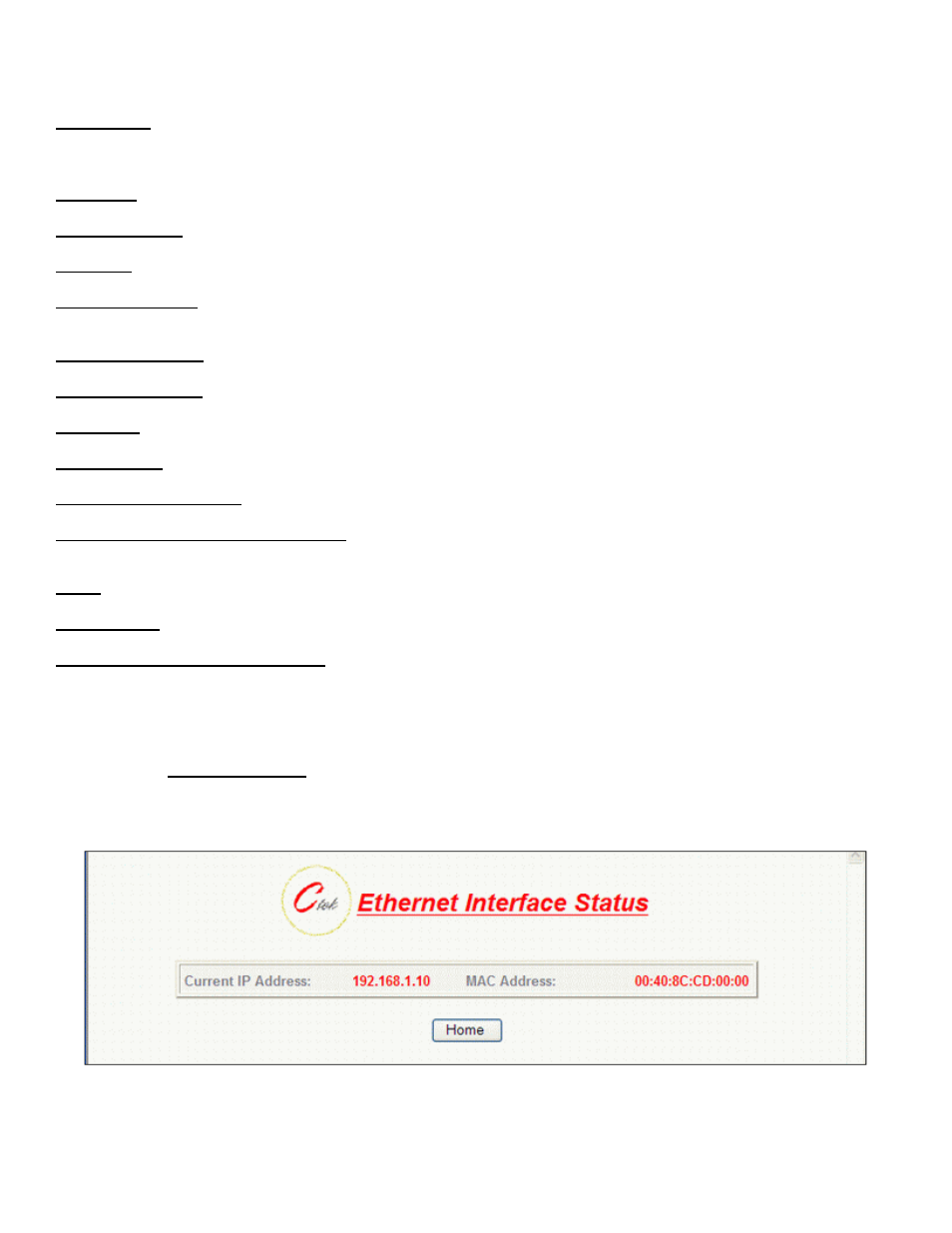

Figure 19 - Ethernet Status
