26 October 2012
23
Wireless Status Details Screen (Z4200)
Definitions – Detailed Display
The Wireless Status Details screen is subdivided into four panels, Radio Configuration, Current Status, EV-DO Status and
1xRTT status. All values found on the Summary screen are repeated on the Details screen.
Radio Configuration Panel
Radio Type – Indicates the type of programming originally loaded into the radio module. Distinct radio types do not exist
for all networks meaning that a unit operating on a given network may have been repurposed from one of the existing
radio types.

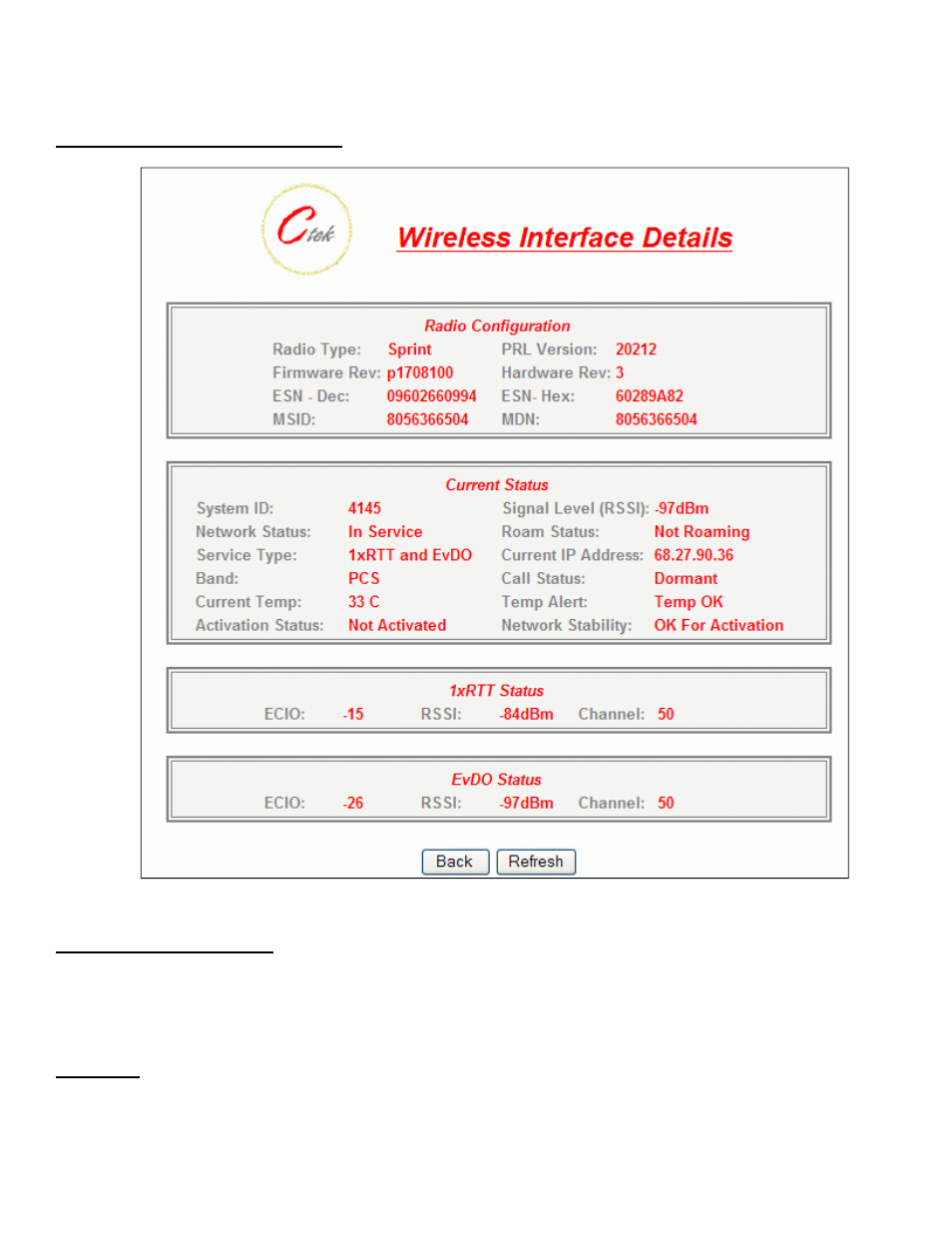

Figure 17 - Wireless Status Details Z4200
