2.3 DIP Switches on the iServer
For Dipswitch access you must remove the main board from the case. Refer to the
Disassembly Instructions in your Quickstart or Operator’s Manual.

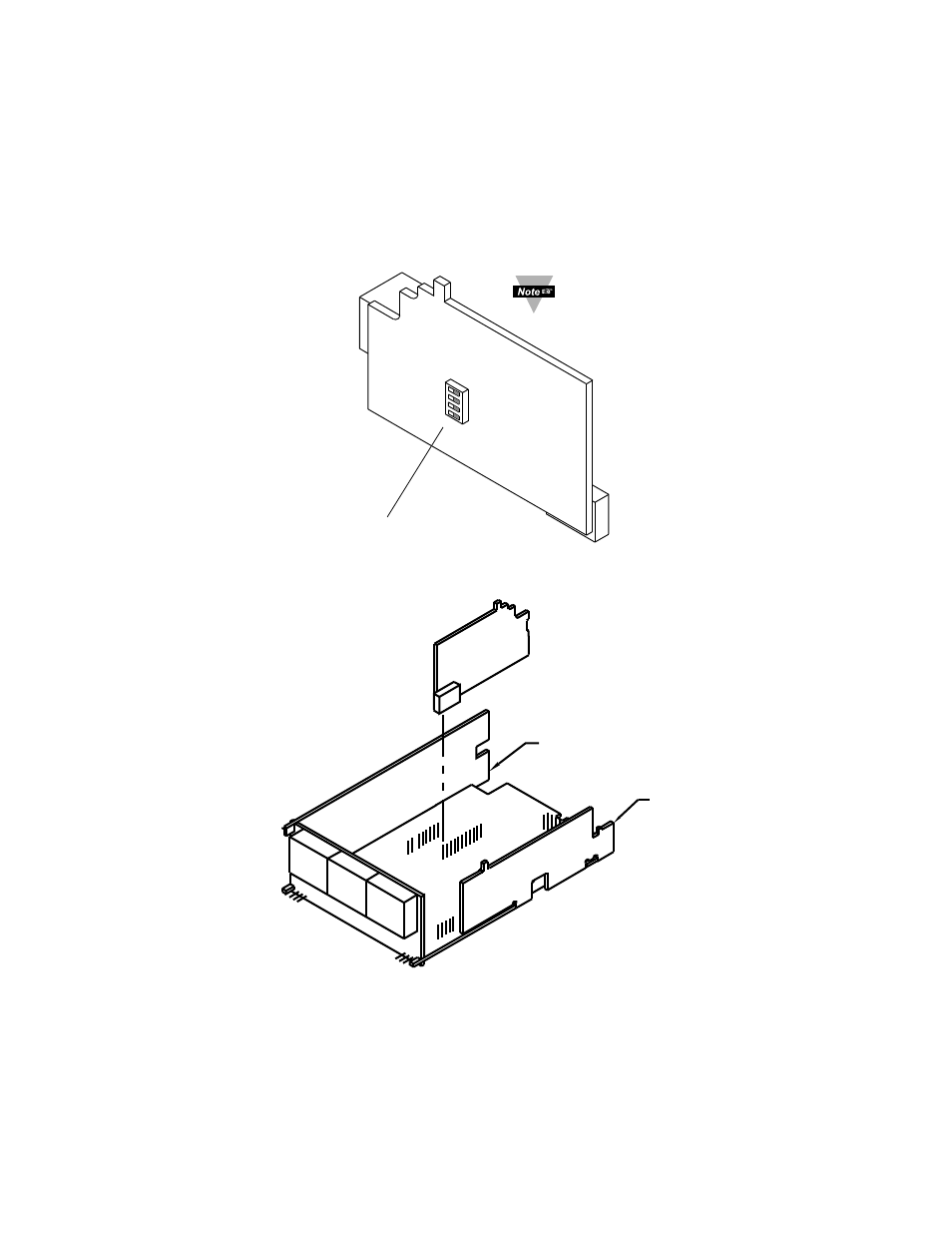

Figure 2.2 DIP Switches on the iServer

Figure 2.3 Option Card Installation

SIGNAL INPUT BD

AC POWER BD

ETHERNET BD

J10

J11

J12

P11

11

4

1A

4

11

10

1

SW2

J4

4

ON

1

OFF

P11

The iServer is shipped with all

DIP switches in "OFF" position

1 To change the IP address

from the serial port

2 To change to default factory

settings

3 To enable/disable DHCP
4 To enable/disable Terminal

Server function
