4
PART 2
HARDWARE
2.1 Physical Characteristics and Mounting
For physical dimensions and installation instructions reference the Quickstart and
Operator’s Manual .
2.2 Rear Panel of Meter with Embedded Ethernet Server

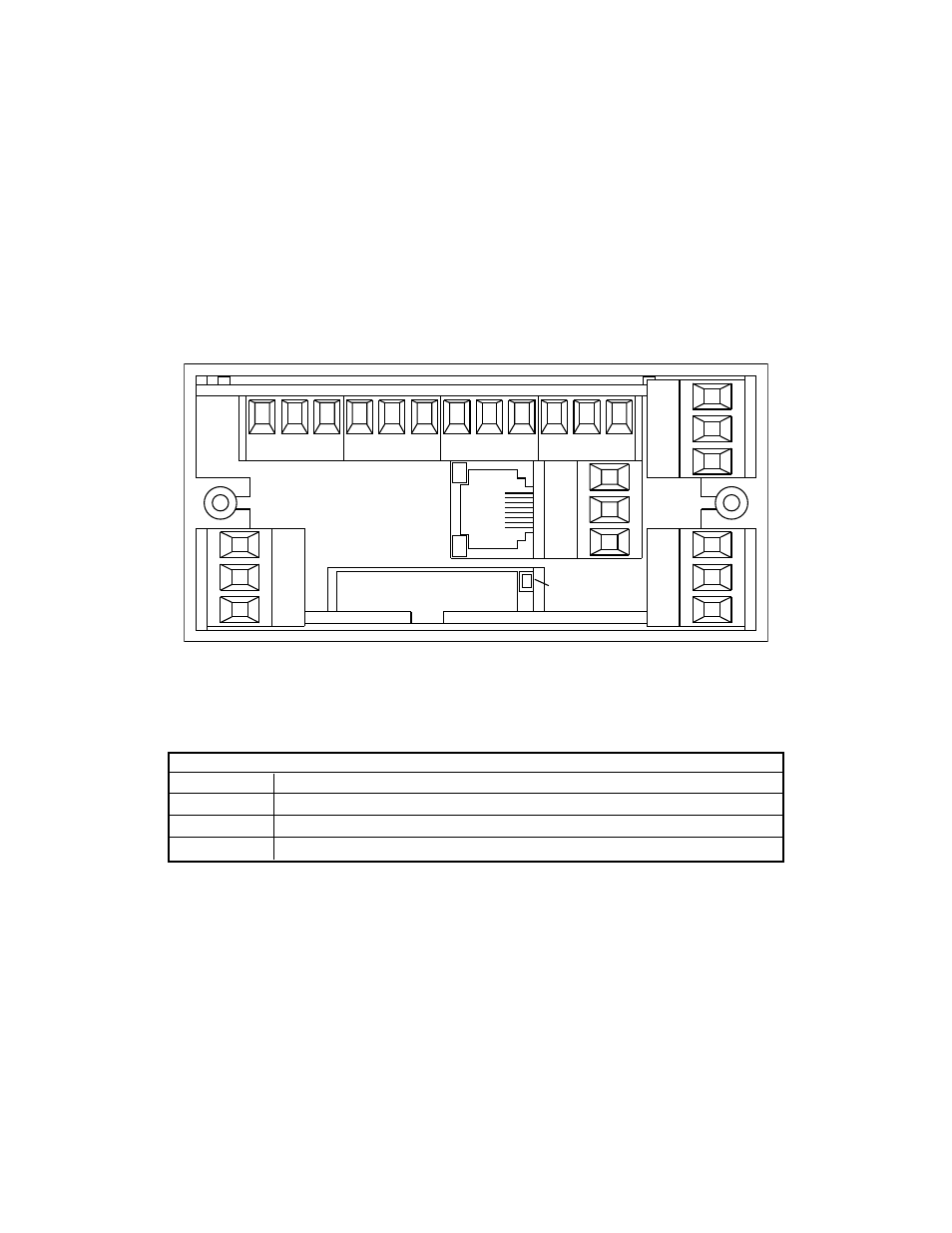

Figure 2.1 Rear Panel View of Meter
with Embedded Ethernet Server
Table 2.1 Rear Panel Annunciators
Network Communication Interface Section:
ETHERNET RJ45 interface for 10BASE-T connection.
RESET Button: Used for power reseting the iServer.
COL LED (Red) Blinking: Indicates network activities (receiving or sending packets).
ON LED (Green) Solid: Indicates good network link.
1 1 1 1
1
1
1
1
1
1 19
P6 P7 P18A P18B
J4
P2
P9
P3
P5
P1
ETHERNET
RESET
COL
ON
