1.2 Description
This iServer is designed to connect industrial devices with serial interfaces to the
Ethernet network using the TCP/IP protocol. It contains an Ethernet Server interface.
The standard features include:
• Use standard Web Browser (TCP/IP protocol), HTTPGET DOS program or Telnet
Simulation, for network connectivity.
• Use a standard home page or customize web page for OEM applications.
For this Ethernet Option, the Communication Menu is only used for internal
interface with the Ethernet Option. There is no RS-232 or RS-485 for the user
to access. The setting in the Communication Menu should be: 9600 baud rate,
1 stop bit, odd parity and RS-232. For the server side, the settings would be
the same.

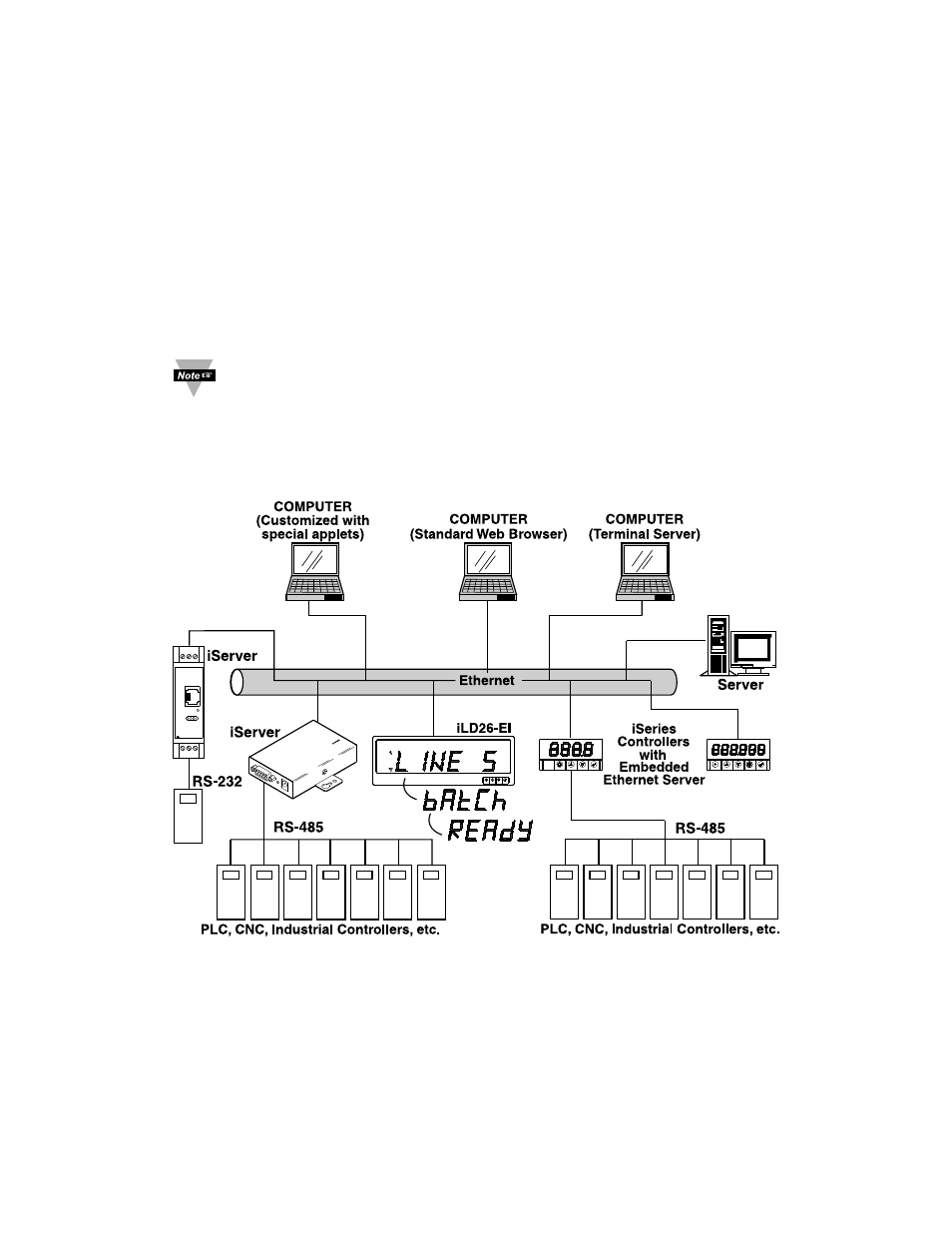

The following example illustrates how you can hookup the devices with serial interface
on the net using the iServer:
Figure 1.1 iServer on the Ethernet Network
TX RX RTN
COMMUNICATIONS
ETHERNET
DC POWER IN
RX TX ON COL
RESET
+ - N/C
Meters and
