PART 3
NETWORK CONFIGURATION

3.1 Network Protocols

The iServer can be connected to the network using standard TCP/IP protocols. It
also supports ARP, HTTP (WEB server), DHCP, DNS and Telnet protocols.

3.2 Ethernet (MAC) Address

MAC (Media Access Control) address is your computer's unique hardware number.
When you're connected to the LAN from your computer, a correspondence table relates
your IP address to your computer's physical (MAC) address. The MAC address can be
found on the label of your device and contains 6 bytes (12 characters) of hexadecimal
numbers XX:XX:XX:XX:XX:XX hex

For example: 0A:0C:3D:0B:0A:0B

Remove the small label with the default IP address and there will be room to put
your IP address. See Figure 3.1.

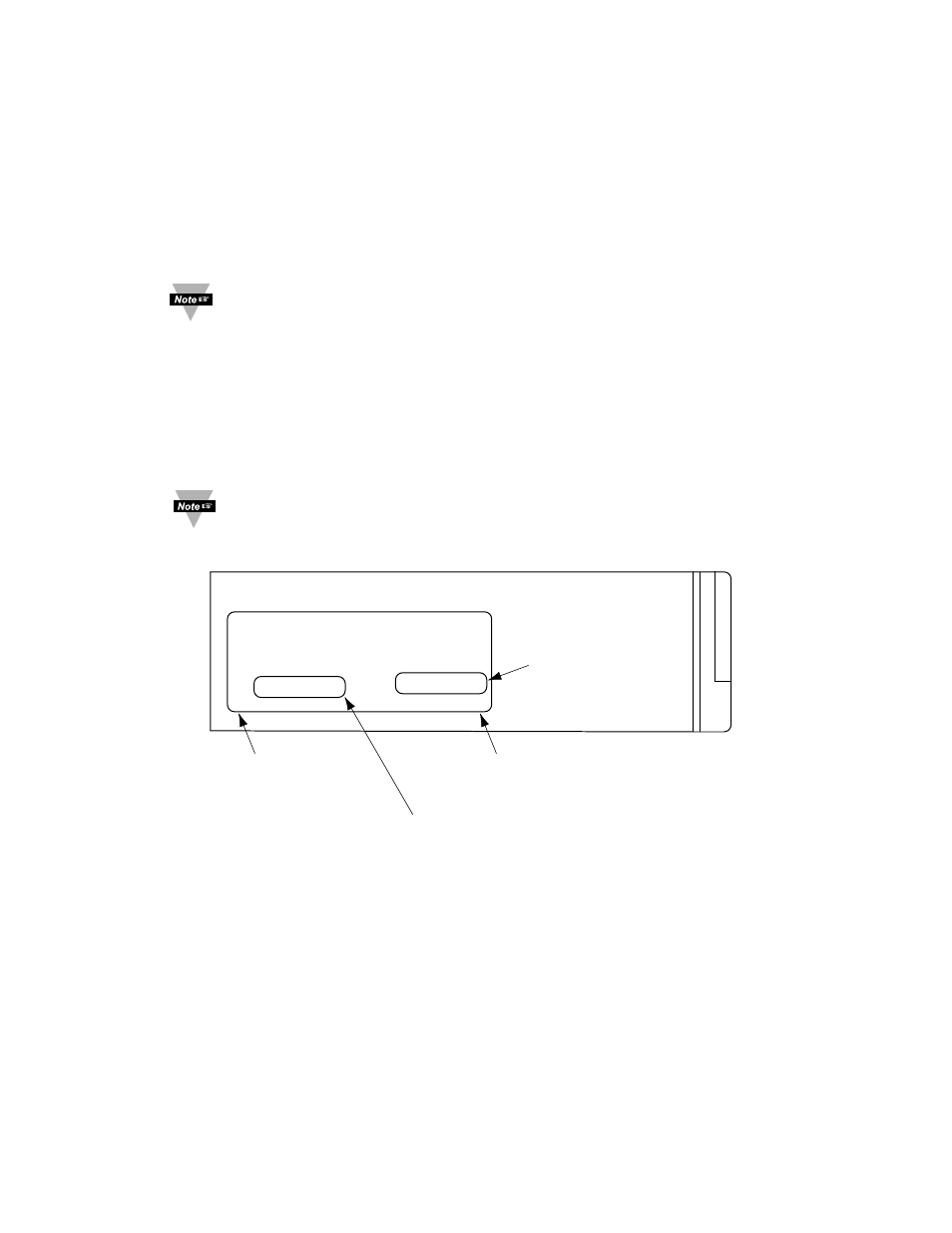

Figure 3.1 Labeling

REMOVE DEFAULT IP ADDRESS

LABEL AND PUT NEW

CUSTOMER'S IP ADDRESS

MICRO-PRO

VERSION #

HEX CODE

CASE SIDE

MODEL NO:
SERIAL NO:
VOLTS: 90 -240V~
FREQ: 50/60 HZ WATTS: 8.5W
IP:

#.# #.#

iSERVER

VERSION #

192.168.1.200

MAC

00:00:00:00:00:00
