4.5.1 Read Devices

• Read variables from up to eight different devices.

• Read up to eight variables from the same device.

• Read and write the setpoint values to the device.

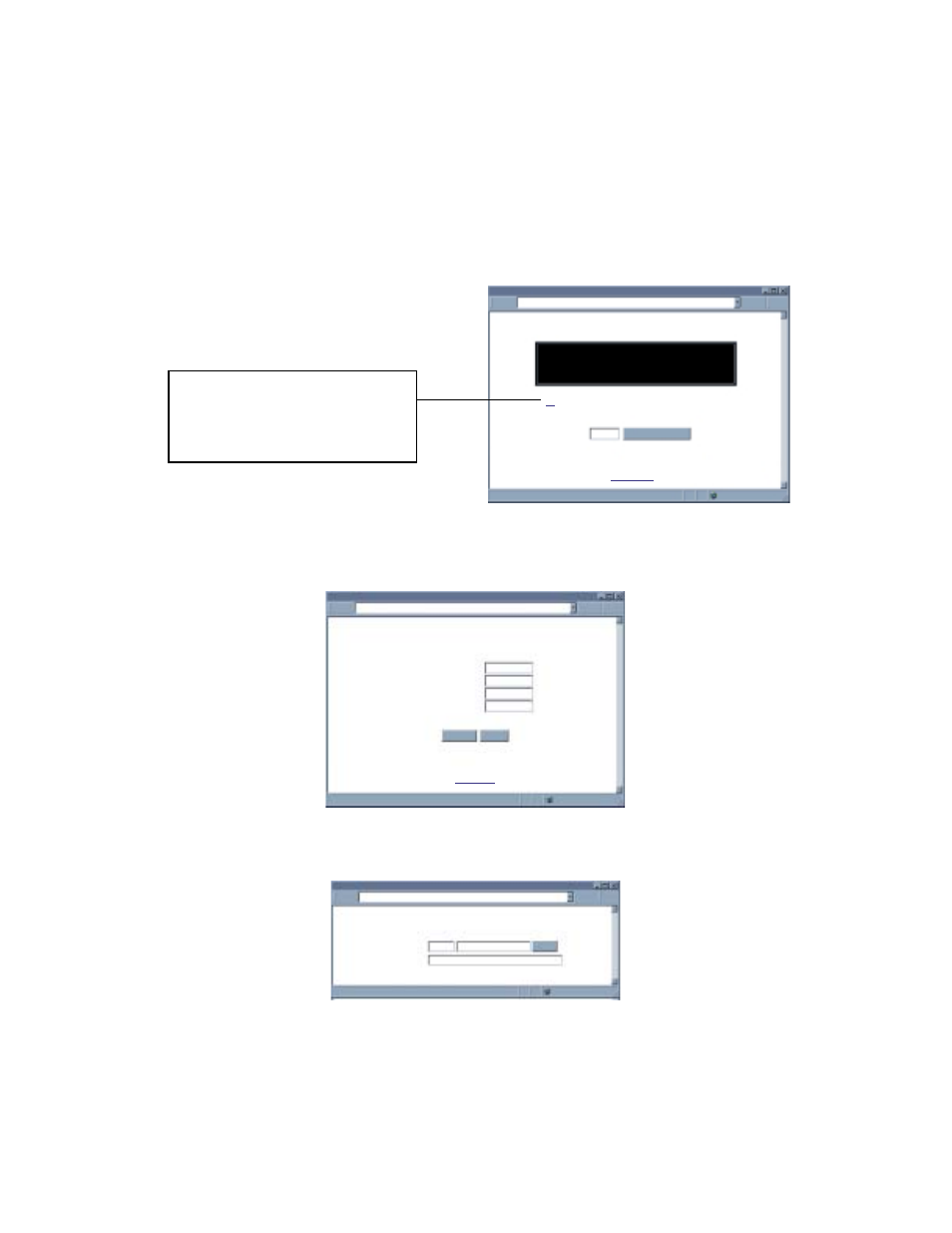

Figure 4.5 Read Devices

4.5.1.1 Device Setpoints

• When you click on Device No in the Read Device Page, you can edit the Setpoints.

Figure 4.6 Device Setpoints

4.5.2 Send Raw Command

• Send single command and receive response.

Figure 4.7 Serial Device Query

Command

Response

* X01

X01092.4

SERIAL DEVICE QUERY

http://192.168.1.200

Address

Send

SERIAL DEVICE QUERY

DEVICE SETPOINTS

DEVICE SETPOINTS

http://192.168.1.200

Address

Device No. (R21)

Main Menu

Setpoint #2:

0.

Setpoint #3:

0.

Setpoint #4:

0.

Setpoint #1:

0.

Update

Reset

14

1

. INFB 092.4 Deg.C

Auto Update

READ DEVICES

http://192.168.1.200

Address

000

READ DEVICES

092.4 Deg. C

Main Menu

Click on Device No. on the left to query/change Device Setpoints

If you have 000, click the Auto Update
button to manually refresh the page.
If you want to change the time
interval of the page refresh, enter the
amount of seconds in the box.
