4.2 Rear Panel Sockets

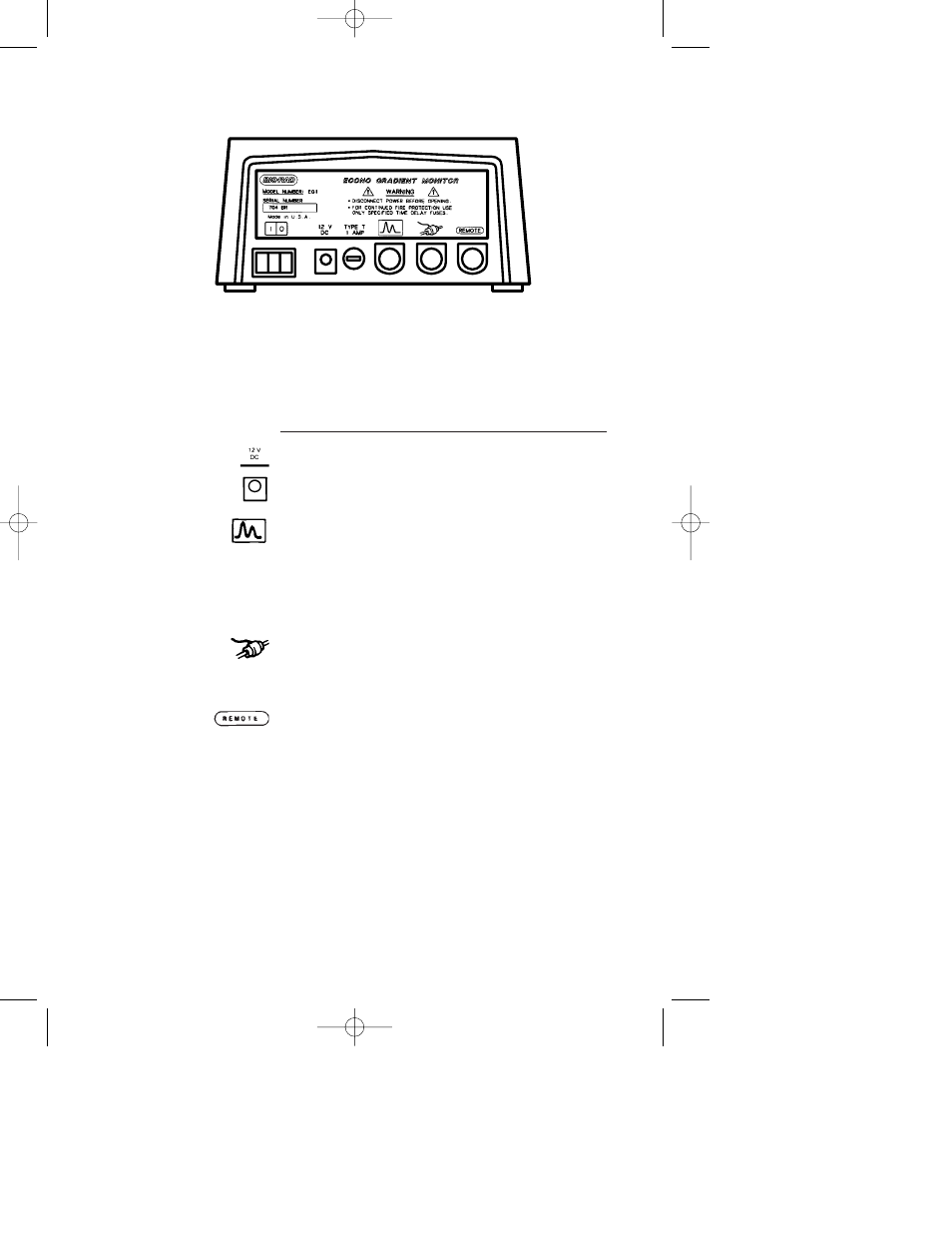

Fig. 3.2. Rear panel sockets.
The rear panel of the Model EG-1 Econo Gradient Monitor control unit
contains an On/Off power switch and four sockets for electrical
connections (see Figure 3.2). A brief description of each socket follows.
Display
Function
Power Entry
For connection of the 12 VDC
power adaptor.
Signal Output
For connection of chart recorders,
Socket
integrators and computers to the
Model EG-1 Econo Gradient
Monitor using standard Bio-Rad
cables. See Section 4.2 and
Appendix B.
Flow Cell
For connection of the flow cell’s
Socket
Signal Cable.
Remote Socket
This feature is not implemented
in the Model EG-1.
