Section 4
Description and Features
The Model EG-1 Econo Gradient Monitor consists of a control unit and
a flow cell. The control unit houses the electronics and user interface. The
flow cell connects to the control unit and is external for flexible placement.
The following tables and illustrations describe the features of the
Model EG-1 Econo Gradient Monitor.
4.1 Front Panel Functions

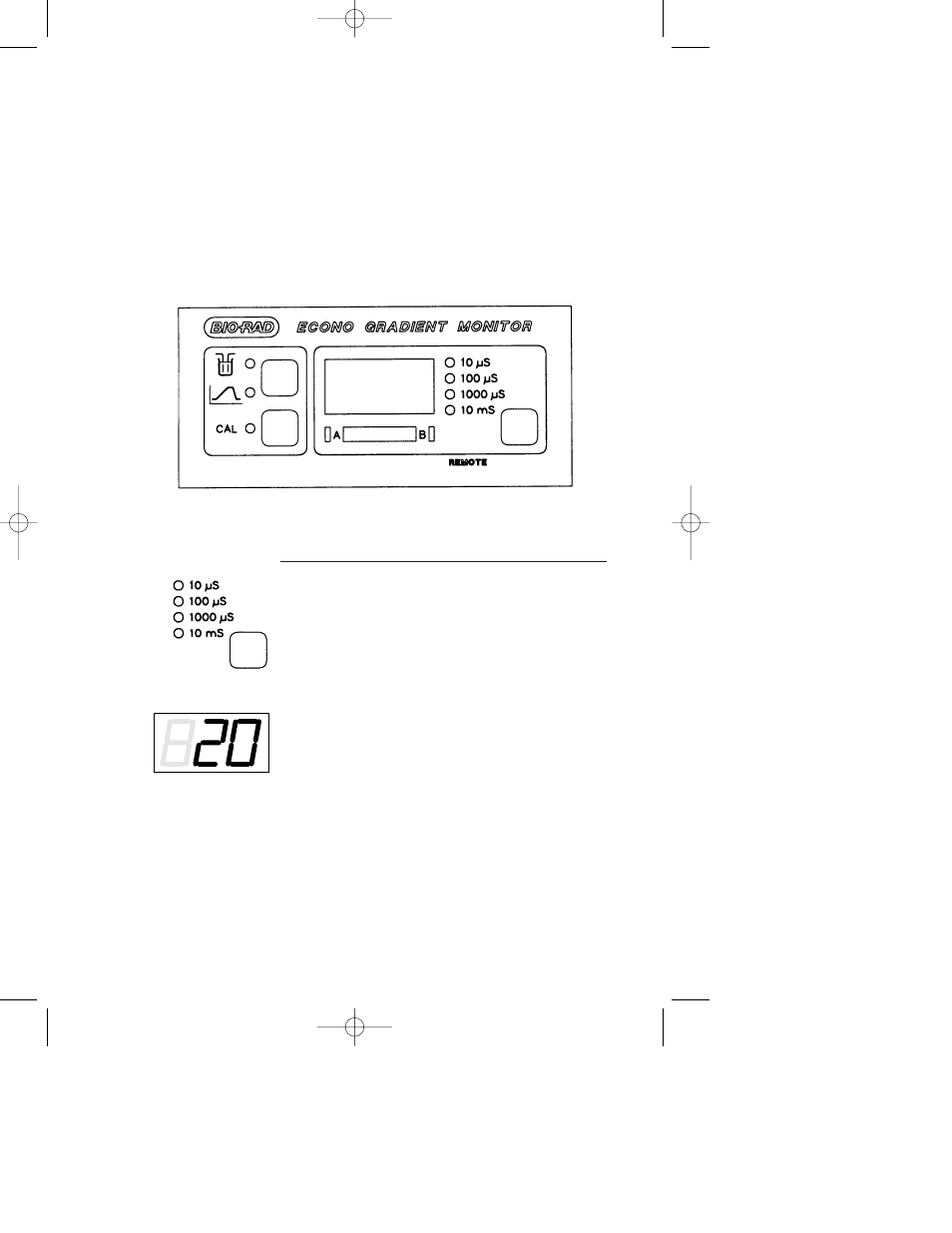

Fig. 3.1. Front panel controls.
Display Function
Range Selector In the Conductivity mode, the
Range Selector allows the user to
select one of four range settings
between 10 micro-Siemens
and 10 milli-Siemens full scale.
The strip chart recorder output
will be scaled accordingly.
3-Digit Display The 3-digit display shows con-
ductivity in Siemens, in accor-
dance with the range selected.
