Below are the recommended tubing lengths when installing the instrument:
• SV-3 to Waste [31 inches (78 cm)]
• Pump Outlet to MV-6 [22 inches (57 cm)]
• SV-3 to Fraction Collector -or- Conductivity Cell to BioFrac [25 inches
(63 cm)]
• MV-6 to Waste [33 inches (84 cm)]
• Sample Loop [23 inches (59 cm)]
• Mixer to Buffer A [26 inches (67 cm)]
• Mixer to Buffer B [26 inches (67 cm)]
• MV-6 to Column Inlet [8 inches (21 cm)]
• Mixer to Pump Inlet [22 inches (55 cm)]
• Conductivity Cell to SV-3 [8 inches (20 cm)]
• Column Outlet to UV [9 inches (23 cm)]
• UV to Conductivity Cell [8 inches (20 cm)]
Section 12
Connecting Cartridge and Sample Loop
1. Bio-Scale ™ Mini cartridges CAN be installed in the same holder that
supports the conductivity flow cell (shown in Figure 6).

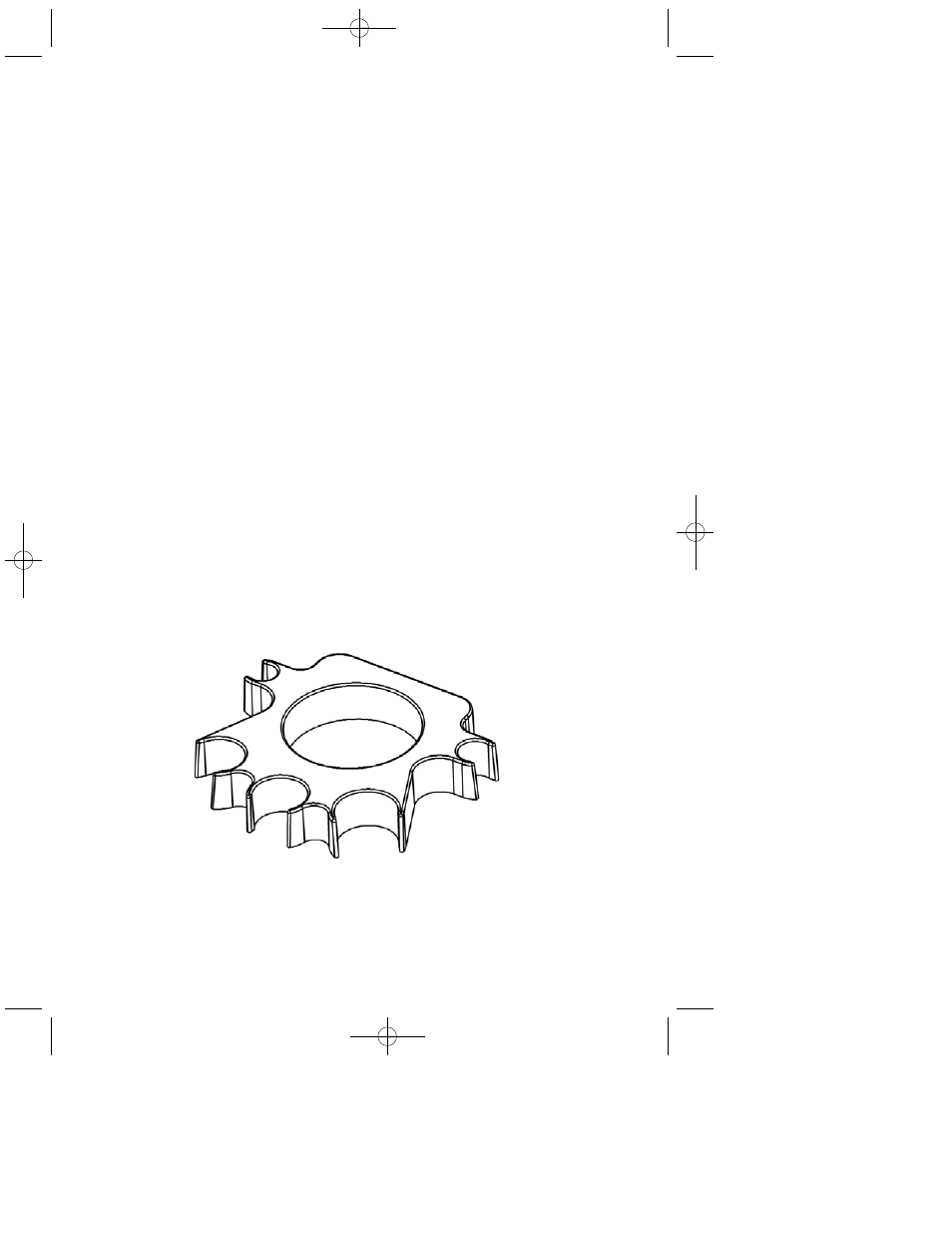

Fig. 6.
9
