Appendix cable connection diagram – Bio-Rad Bio-Plex Manager™ Software, Standard Edition User Manual
Page 10
Appendix

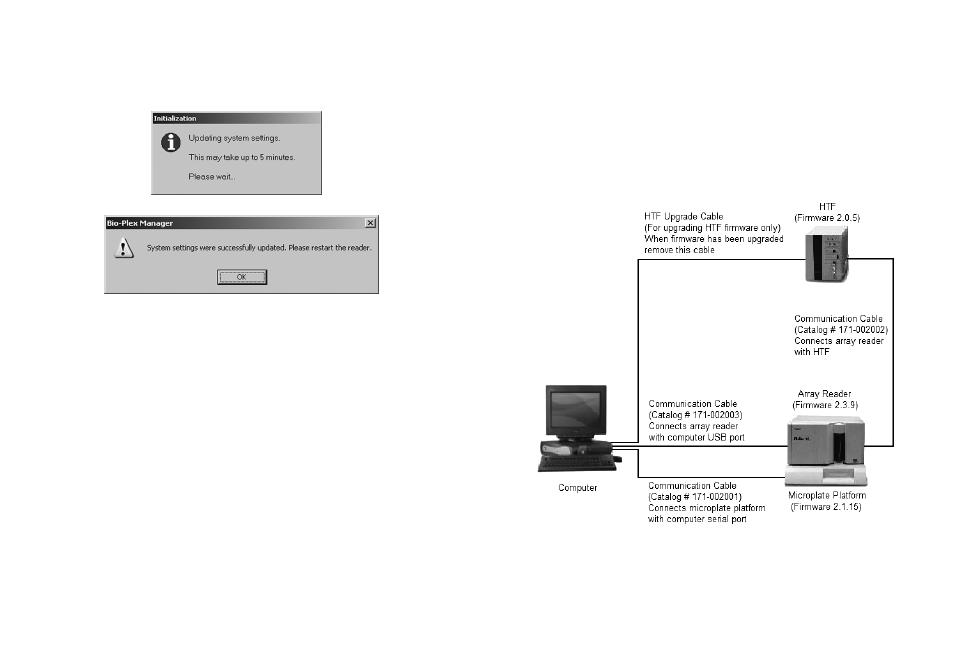

Cable Connection Diagram
15
6.
Exit the application and power off the array reader. Then power on
the array reader and restart the Bio-Plex Manager 4.1 software
application. The following two dialog boxes will appear in succession:
7.
To restart the array reader, first exit from Bio-Plex Manager. Cycle
the power on the array reader and relaunch Bio-Plex Manager.
Congratulations—the Bio-Plex Manager 4.1 software installation is
complete!
NOTE: If the system settings were not set properly, follow the
instructions on any error message that appears. If problems are
encountered, contact your local Bio-Rad office, or in the US,
call 1-800-4BIORAD (1-800-424-6723).
14
