USING THE DEPTH KEY
The current water depth is permanently displayed in the
bottom LCD area in metres, feet or fathoms. The unit is

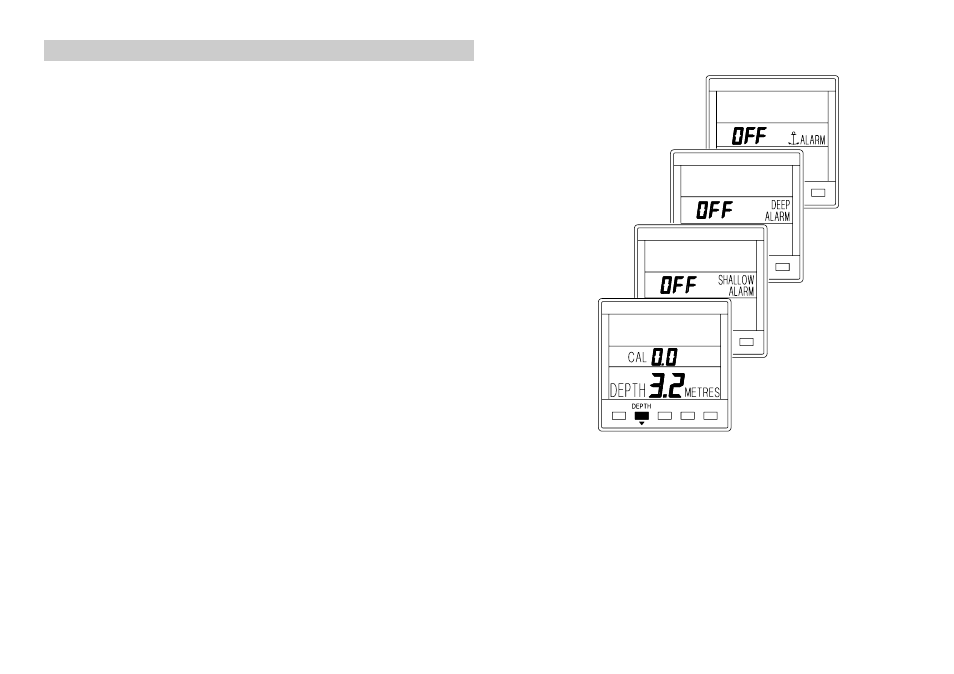

factory set to metres. The depth displayed is from the depth
datum, see DEPTH DATUM. Press the DEPTH key to cycle
through the following options:
CAL The Depth Datum can be adjusted so the
displayed water depth is from the water-
line, the depth sensor (transducer) or the
keel or outdrive depth. The unit is factory
set to display water depth from the
transducer.
SHALLOW When enabled it will sound if the water
ALARM depth is less than the alarm value.
DEEP When enabled it will sound if the water
ALARM
depth is more than the alarm value.
ANCHOR When enabled it will sound if the water
ALARM depth is outside two alarm limits.
The Network QUAD unit can measure and display water
depth in the following ranges:
• 0.7 to 180 metres
• 2'4" to 590'
• 0.37 to 98.4 fathoms
Accuracy ± 2% or ± 0.2m.(± 8")
