Page 8
6 |
Display installation |
ZM Series User Manual

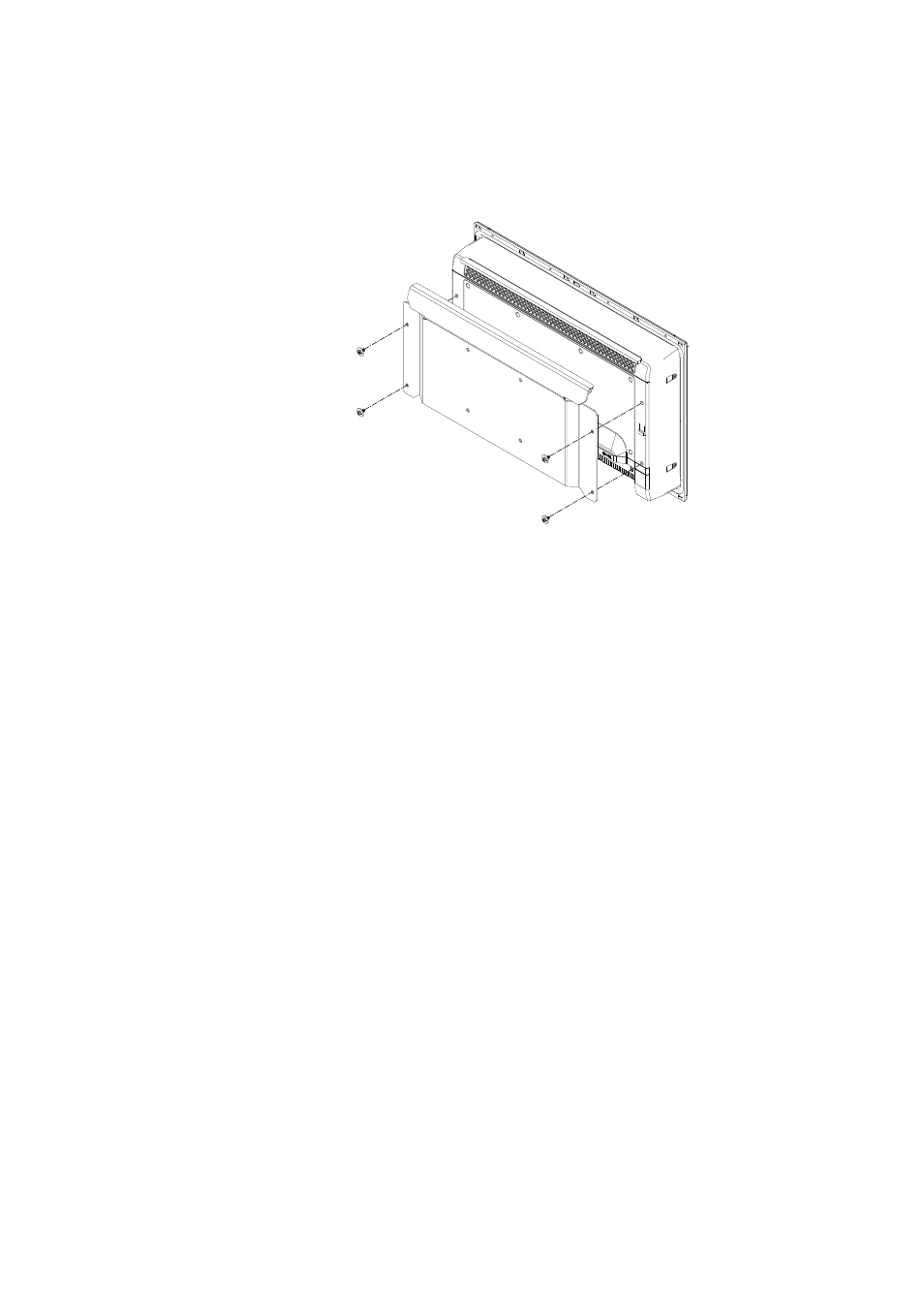

VESA mounting the display
A VESA bracket adaptor is available as an optional part for all display sizes, allowing a variety of
wall and free standing bracket mounting options. The fasteners for attachment to the display
are included with the bracket.
Monitors mounted using a Vesa bracket have IPX2 rating, and should be mounted in an area
sheltered from rain and sea spray.
¼
Note:
the monitor should not be tilted forward by more than 15 degrees, as this compromises
the IPX2 rating. In fully enclosed helm stations, this limitation may be disregarded.
¼
Note:
the bracket mounting points on the monitor are only intended to carry the weight of
the monitor - do not install monitor in such a place where it may be used as a handhold, or
have additional equipment attached to it.
