Dimensional drawings | ZM Series User Manual

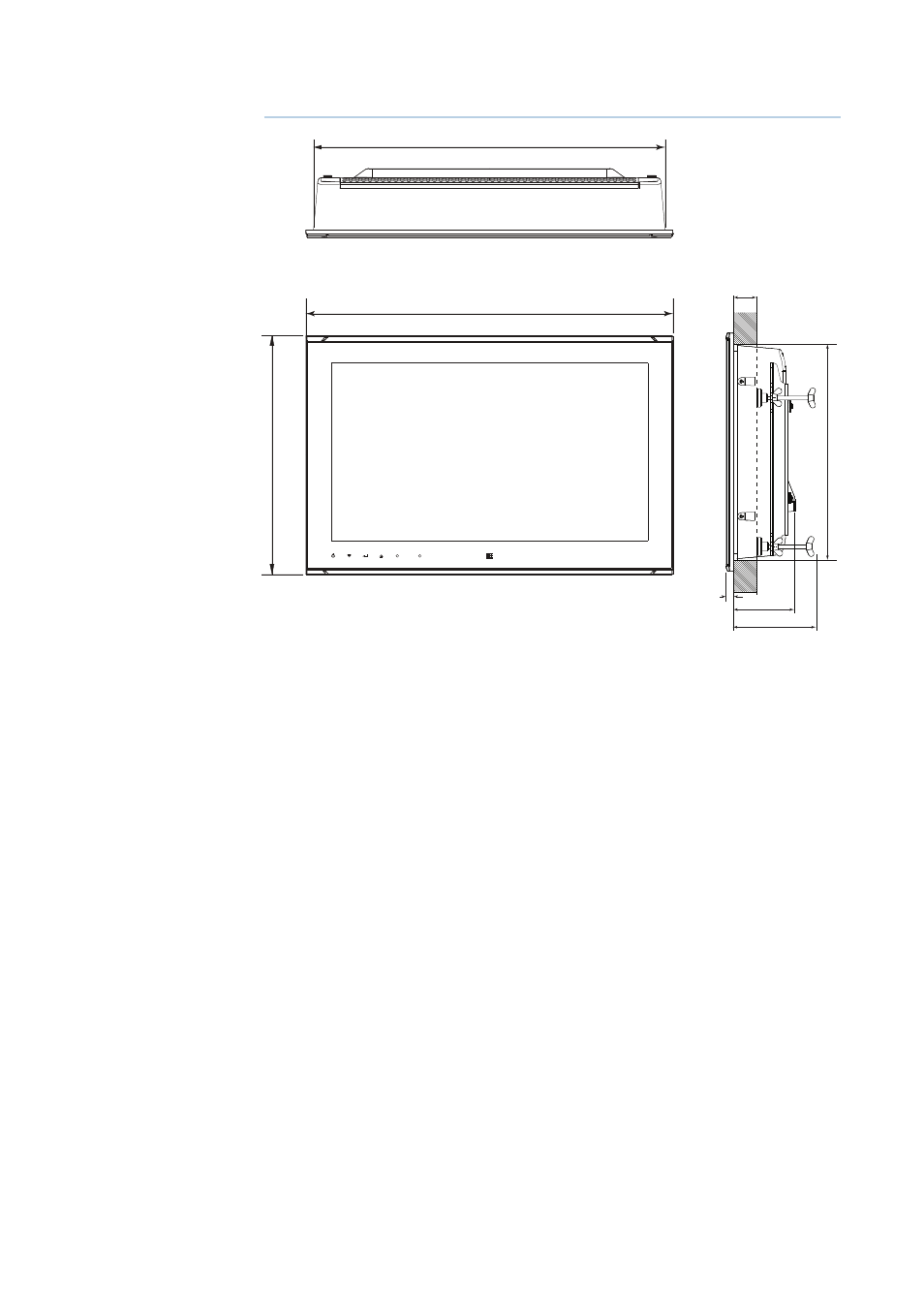

Dimensional drawings
ZM16: 400mm ZM19: 478mm
ZM16: 260mm
ZM19: 305mm
ZM16: 383mm ZM19: 461mm
MAX 25.4 mm (1.00")
8 mm (0.31")
66.0 mm (2.60")
MAX 88.0 mm (3.46")
ZM16: 233mm
ZM19: 278mm
6
