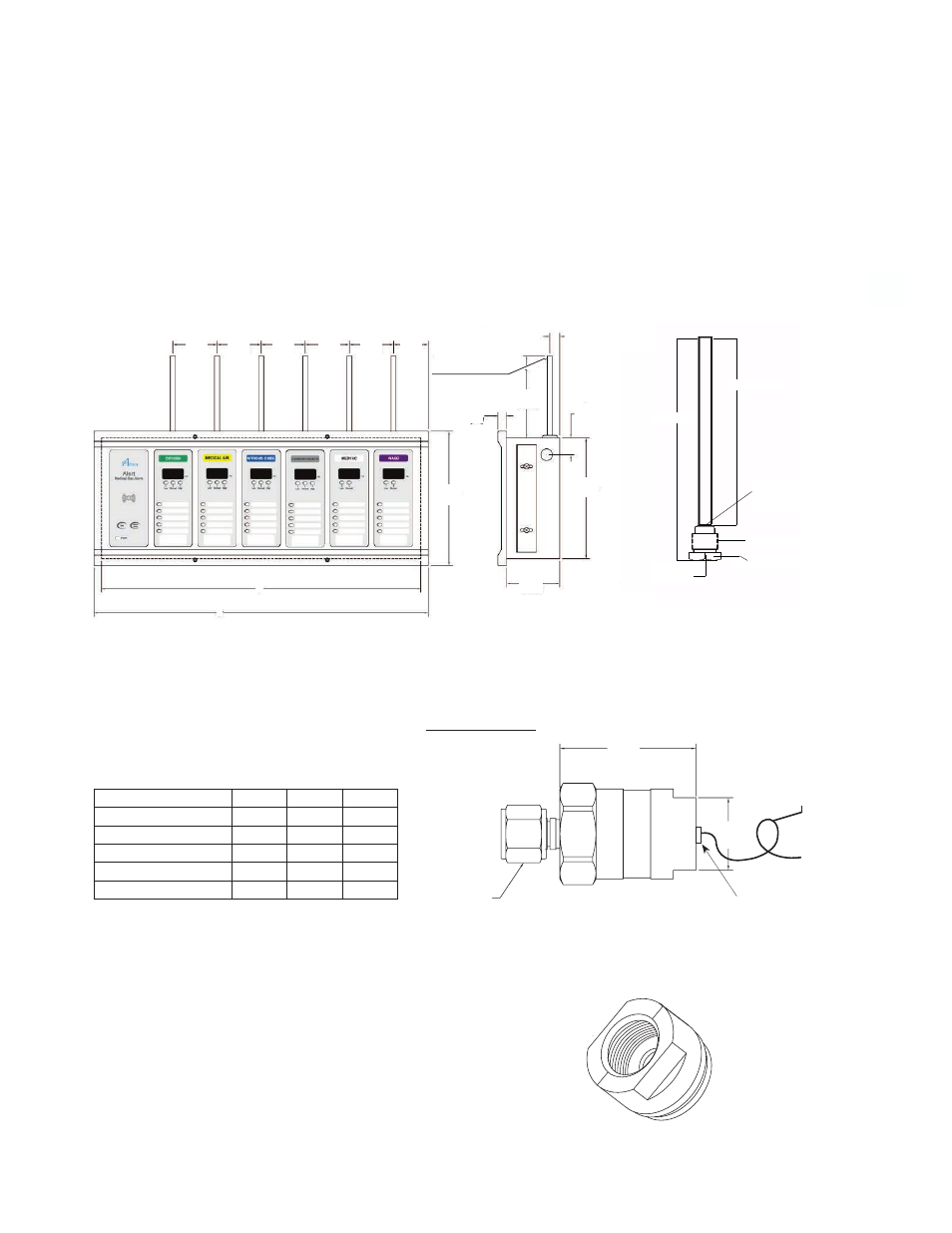

Amico Pipeline
4
[102]
9
[229]
1-1/4
[32]
3/4
[19]
Only supplied with
Local Sensors
1/4” [6.4mm] (I.D.)
Type “K” Copper Pipe
7-3/16
[182]
5/8
[16]
A
B
3-5/6
[84]
3-5/6
[84]
3-5/6
[84]
3-5/6
[84]
3-5/6
[84]
2-5/8
[66]
10
[254]
Note: DISS Demand check valves by 1/4”
NPT, supplied with each remote sensor.
Local/Remote Sensor
(approximate, can vary)
1.88
[48]
Wrench Flats
1
[25]
DISS
CONNECTOR
1/2”-14 NPSM [13]
(see Thread Specs.)
1/2” Conduit
Connection
Number of Display Modules
A
B
Gang
1 module
7 (178)
8 (203)
2
From 1 to 2 modules
11 (272)
12 (305)
3
From 1 to 3 modules
14 (356)
15 (381)
4
From 1 to 4 modules
17 (439)
18 (465)
5
From 1 to 6 modules
24 (610)
25 (635)
7
#22 Gauge twisted pair
shielded cable 6”-8”
[0.1m - 0.2 m] supplied
Brazing Filler
Metal AWS Spec.
BAg-7
1/2-14NPSM THD.
Brass 1[25] HEX
7.50[191]
1/4[6] NPT
6.375[162]
Inch
[mm]
