Amico Nema 4 Master Alarm - Manual (Page 17)

www.amico.com 17
InchHg / KPA / BAR selections
Factory Default - InchHg

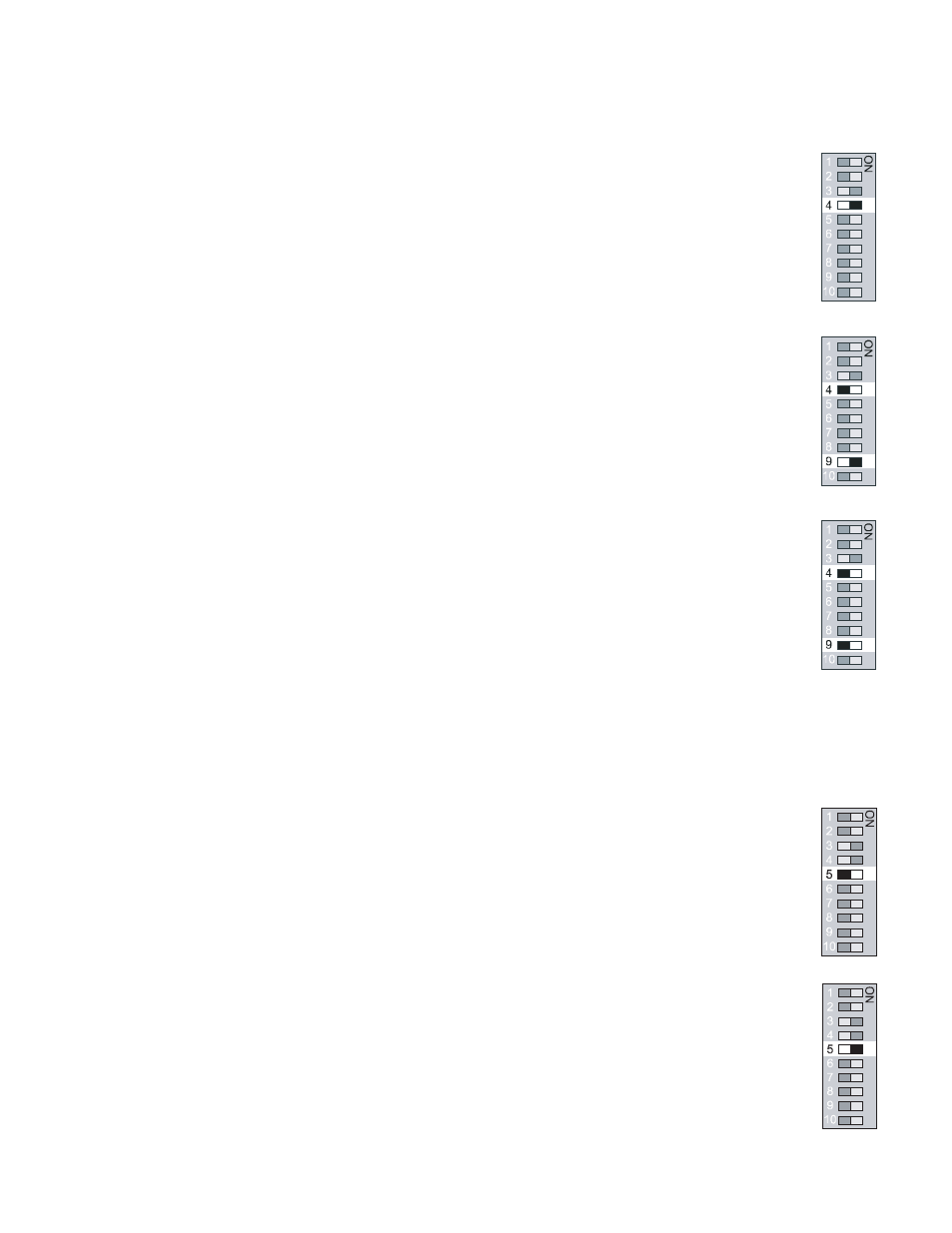

For InchHg mode, set the switch #4 to the ON position. The LED indicating InHg located next to the
VACUUM source reading will illuminate.
For KPA mode, set the switch #4 to the OFF position and the switch #9 to the ON position. The LED
indicating KPA located next to the VACUUM source reading will illuminate.
For BAR mode, the KPA indicating source must be changed to BAR by use of a label. Set the switch
#4 to the OFF and the switch #9 to the OFF position. The LED indicating BAR located next to the
VACUUM source reading will illuminate.
COMMON SETTINGS FOR PRESSURE AND VACUUM
Repeat Alarm Enable/Disable
Factory Default - Disable
Disable
Set switch #5 to the OFF position to disable the repeat alarm.
NOTE: When the repeat alarm function is disabled, the alarm will not repeat.
Enable
Enable Mode: (Factory Default 30 min, when enabled).
Set switch #5 to the ON position.
PLEASE NOTE: The Module with the Lowest set Repeat Time is the one that controls the Repeat
Time. For example if one Module is set for 5min and one for 30min and both are Repeat Alarm en-
abled, the Alarm will now Repeat every 5min.
