Front Gang Assembly
Note: The center and wing gang assemblies will install
the same. The only difference is, that the gang
assemblies and turnbuckles will be different from
center to wings. Cylinder base end will be hooked
to ear on center and wing frames. See machine
layouts in appendix section for proper gang loca-
tions. See wing gang bar & fold assembly 3500-
4000 for complete parts breakdown. You will prob-
ably need to hook all hydraulics up, See “3500
Hydraulic Wing Lift & Gang” on page 17 through
See “4000 Hydraulic Fold” on page 20 and
charge systems before installing gang assemblies,
See “Purging Hydraulic System” on page 23.

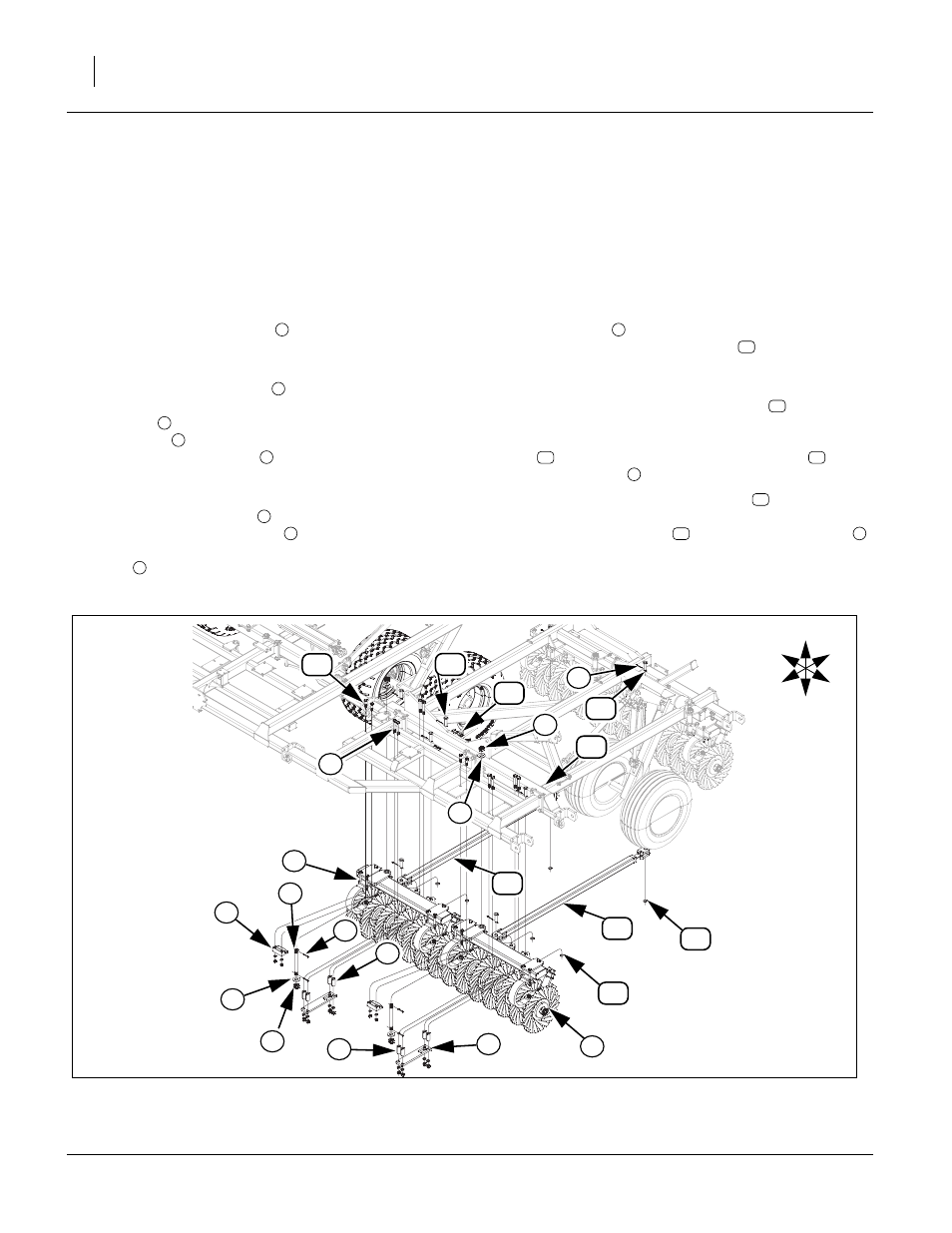

Refer to Figure 13
52. Position gang assemblies
in correct location on
floor or ground and carefully lower machine down to
gang assemblies.
53. Install the gang pivot bolt through aligned tubes
on gang bars and brace bars. Secure with 1 1/4 flat
washers
(one on top and one on bottom), 1 1/4
slotted nut (one on top and one on bottom) and
two 3/16 x 2 cotter pins . Tighten bolts snug,
torque to 350 to 400ft-b. Cotter pins may be bent
over to secure.
54. Install the round tubes (four on each gang bar)
between bottom front plate (slotted hole toward
rear) and plate on brace bars. Install the 3/4 x 6 hex
bolts
, 3/4 lock washers and 3/4 nuts.
55. Install bracket on bottom side of gang bar plate,
secure with 5/8 x 3 1/2 hex bolts , 5/8 lock wash-
ers and 5/8 nuts.
56. Install either 586-444S turnbuckle assembly (center
section) or 586-445S (wing sections) , adjustable
end on ear on front of rear gang bars and fixed end
on ear of front gang bars. Secure with 1 x 3 1/4 clevis
pin
, 1.5 x 1.00 x 0.075 machine washer and 3/
16 x 2 cotter pin .
57. Now the rod end of gang cylinders may be
hooked up with the 1 x 3 1/8 clevis pin, 1.5 x 1.00 x
0.075 machine washer
and 3/16 x 2 cotter pin .
58. Bolt may be tightened to specs, See “Torque Values
Chart” on page 35 and all cotter pins may be bent.
1
2
3
4
5
6
7
8
9
10
11
12 13
5
14
13 5
Figure 13
Front Gang Assembly 42881
