Application Overview
Tank, plumbing and setup requirements differ for
anhydrous (A) and conventional systems (L). The next
few pages provide an overview of both systems.
Anhydrous: System Components
Single-Cooler Section Control Configuration - see
page 160 through page 164 for alternates.
Legend:
Callout numbers A11 through A86 identify the same
applicator and tank components throughout this manual.
Liquid NH
3
Liquid Flow
NH
3
Vapor Vapor Flow
Direction of Flow Exception Flow
A57
A12
A13
A15
A67
A65
A56
A60
A61
A16
A17
A18
A14
A11
A58
A59
A47 A23
A48
A48
A47
A19
A21
A22
A34
A24
A42
A20
A27
A28
A33
A44
A41
A31
A30
A29
A26
A25
A32
A46
A43
A45
A49
A45
A40
A36
A37
A35
A38
A39

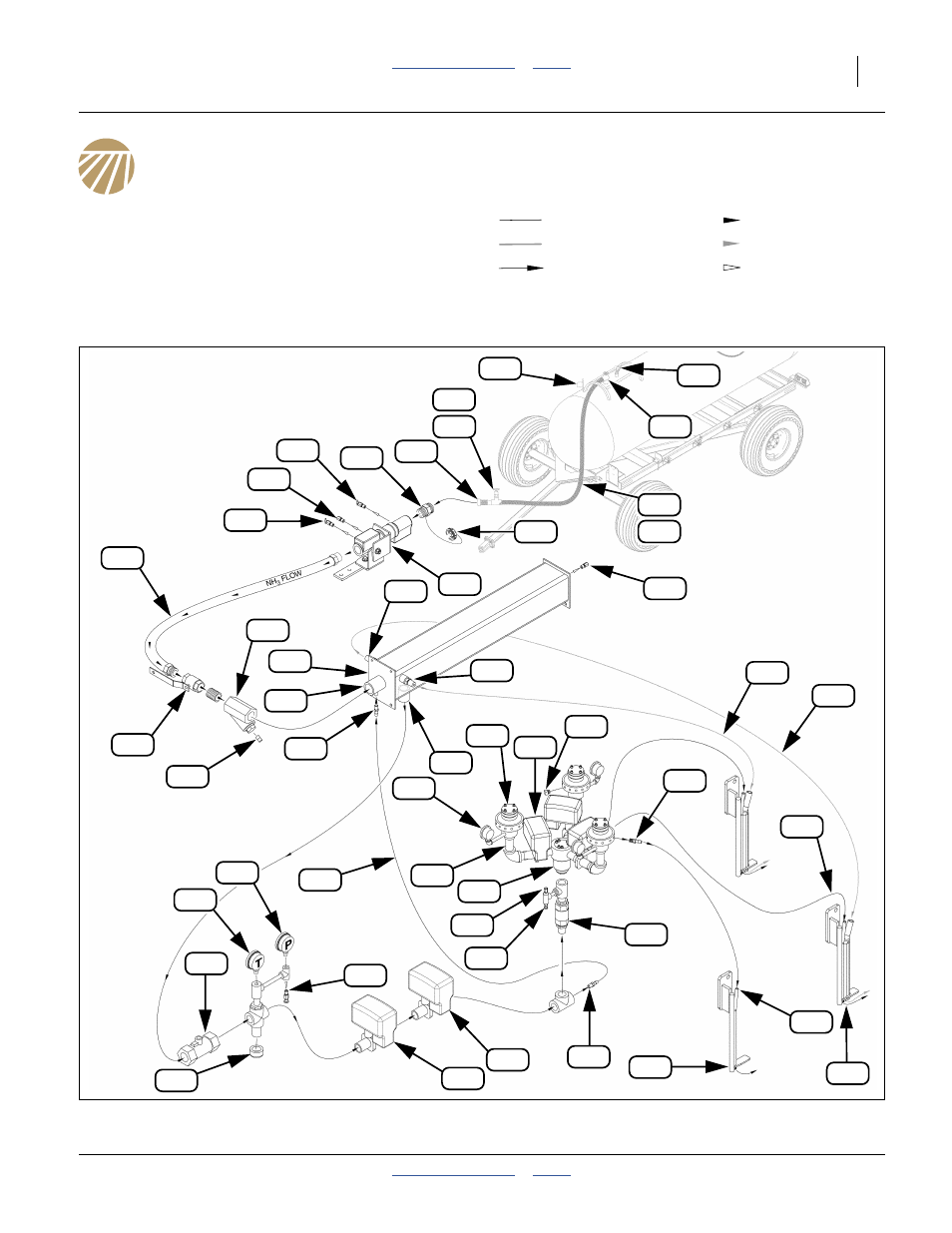

Figure 4
Anhydrous Ammonia (NH
3
) Plumbing (Single-Cooler w/ Section Control)
