Install Wing Extension
Note: If installing both anhydrous and conventional side
dress, use the 417-125H wing extension provided
in kit 417-124A.
Refer to Figure 101
If the wing extension is already installed, continue at
“Dismount Rear Vantage I Coulters” on page 182.
10. Select one new:
407-906H NP4000 SIDEDRESS WING
and eight sets new:
802-055C HHCS 5/8-11X2 GR5
804-022C WASHER LOCK SPRING 5/8 PLT
803-021C NUT HEX 5/8-11 PLT
11. With the Great Plains decal to the left, and the amber
reflector front, attach the extension to the end of
the left wing.
Note: Once installed, the extension itself never needs to
be removed.
Refer to Figure 102
12. Measure a distance of one row space
from the
center-line of the left wing outside row unit. Use a
grease pencil or similar means to mark the position
for the side dress row unit on the extension
weldment.
Install Coulter Mount
This applies only to kit 407-907A and three-coulter
configurations. For single-coulter configurations (kits
407-940A and 407-941A), skip to “Install Liquid
Coulter” on page 183. If the quick-attach mount is
already installed, skip to “Dismount Rear Vantage I
Coulters” on page 182.
13. Select one new:
417-023D QUICK-ATTACH CLTR MNT
two new:
806-016C U-BOLT 5/8-11 X 6 1/32 X 5 3/4
and four sets new:
804-022C WASHER LOCK SPRING 5/8 PLT
803-021C NUT HEX 5/8-11 PLT
14. Position the quick-attach mount at the rear side of
the front tube of the extension weldment, small notch
up. Loosely secure with U-bolts
, lock washers
and nuts . Align the top notch with the center-line
mark. Secure the nuts.

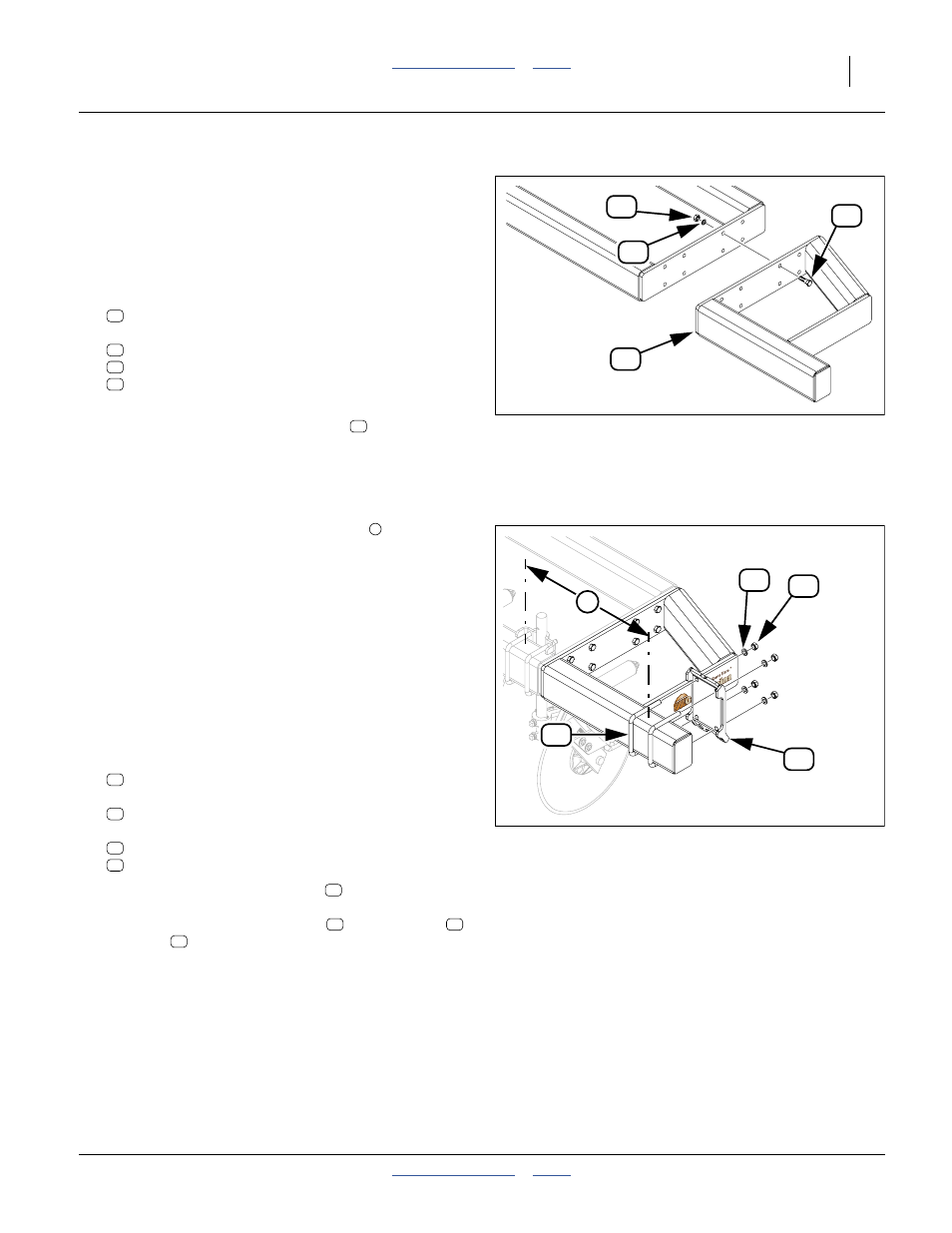

Figure 101
Install Wing Extension
34972
19
36
41
34
19
36
41
34
19
Figure 102
Install Quick-Attach Mount
34975
44
21
41
34
r
r
21
44
41
34
21
44 41
34
