11 Installation Instructions
Assembly Instructions for 402-179A & 402-180A
Replace Nozzle Body Clamp
Refer to Figure 1
1. Detach nozzle body from nozzle body
clamp. Remove old clamp from supply tube.
Keep elbow fitting and orifice plate for re-
use. Discard check valve and clamp.
NOTE: New nozzle body clamp has check valve
built into it. Separate check valve is no longer
necessary.
2. Attach new nozzle body clamp to fertilizer
supply tube. Reinstall orifice plate, elbow
fitting, and nozzle body.
3. Repeat steps for all clamps.
Replace Fertilizer Hose Plastic Coupler
Refer to Figure 2
1. Uncouple fertilizer hose. Remove slip-on
coupler attaching fertilizer supply line to
opener attachment tube.
2. Replace coupler with new push-lok connec-
tor. Recouple hose.
3. Repeat steps for all hoses.
23422

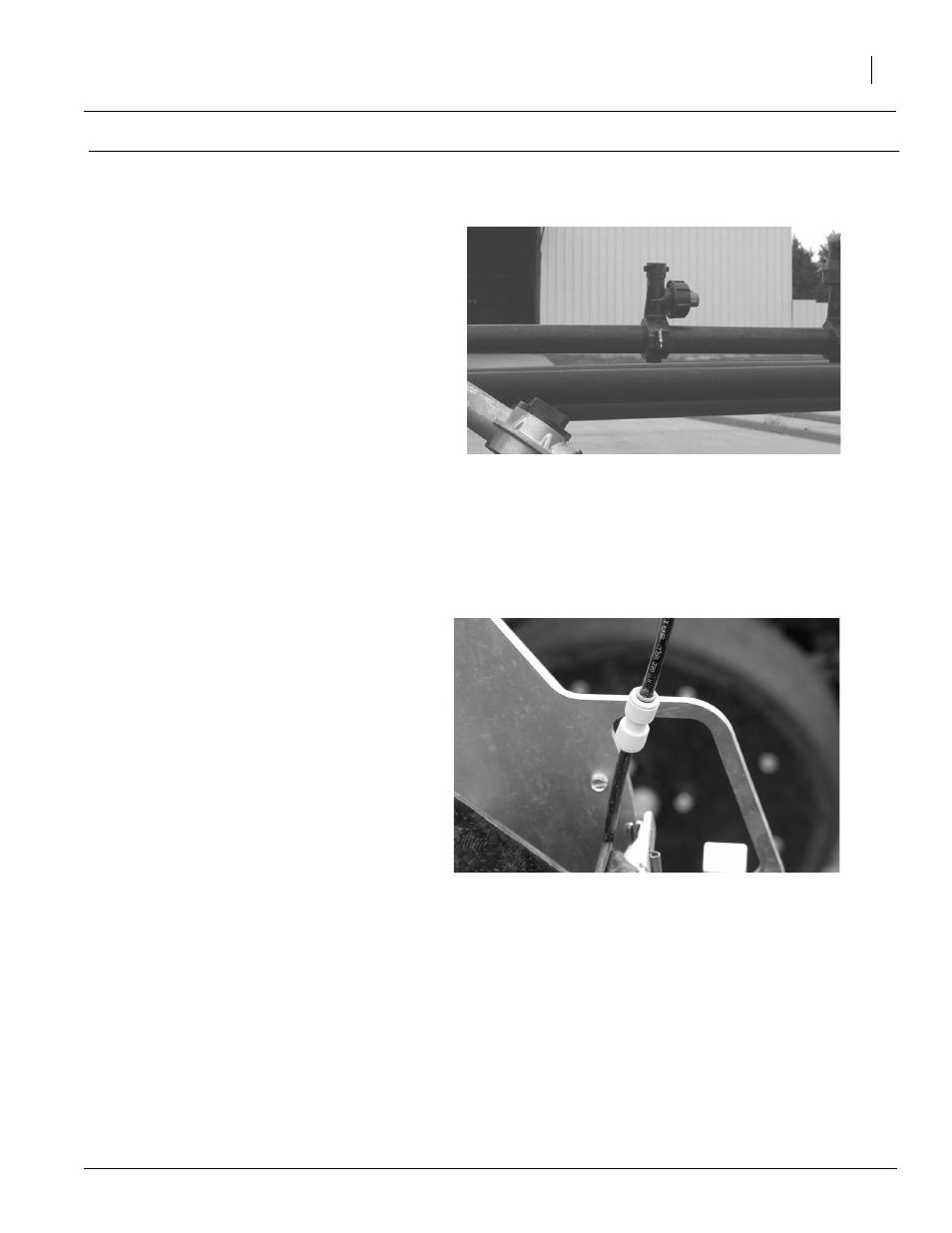

Figure 1
Nozzle Body Clamp
23423
Figure 2
Push-Lok Connector
