2005 Field Update Kits 10
Refer to Figure 19
10. Cover hoses entering pullbars with vinyl
sleeves - shiny side of sleeve against hoses.
Position hose sleeve with 10" of sleeve inside
pullbar and 14" outside . This covers hoses
passing through tongue and hitch area. Se-
cure sleeve in place with velcro strips and use
a cable tie at each end to keep it from sliding.
11. Wrap hoses exiting pullbars with vinyl sleeves
- shiny side of sleeve against hoses. Sleeve
will extend 2-3" past support ring below pull-
bar pivot pin. Use cable tie at each end to keep
sleeve in place.

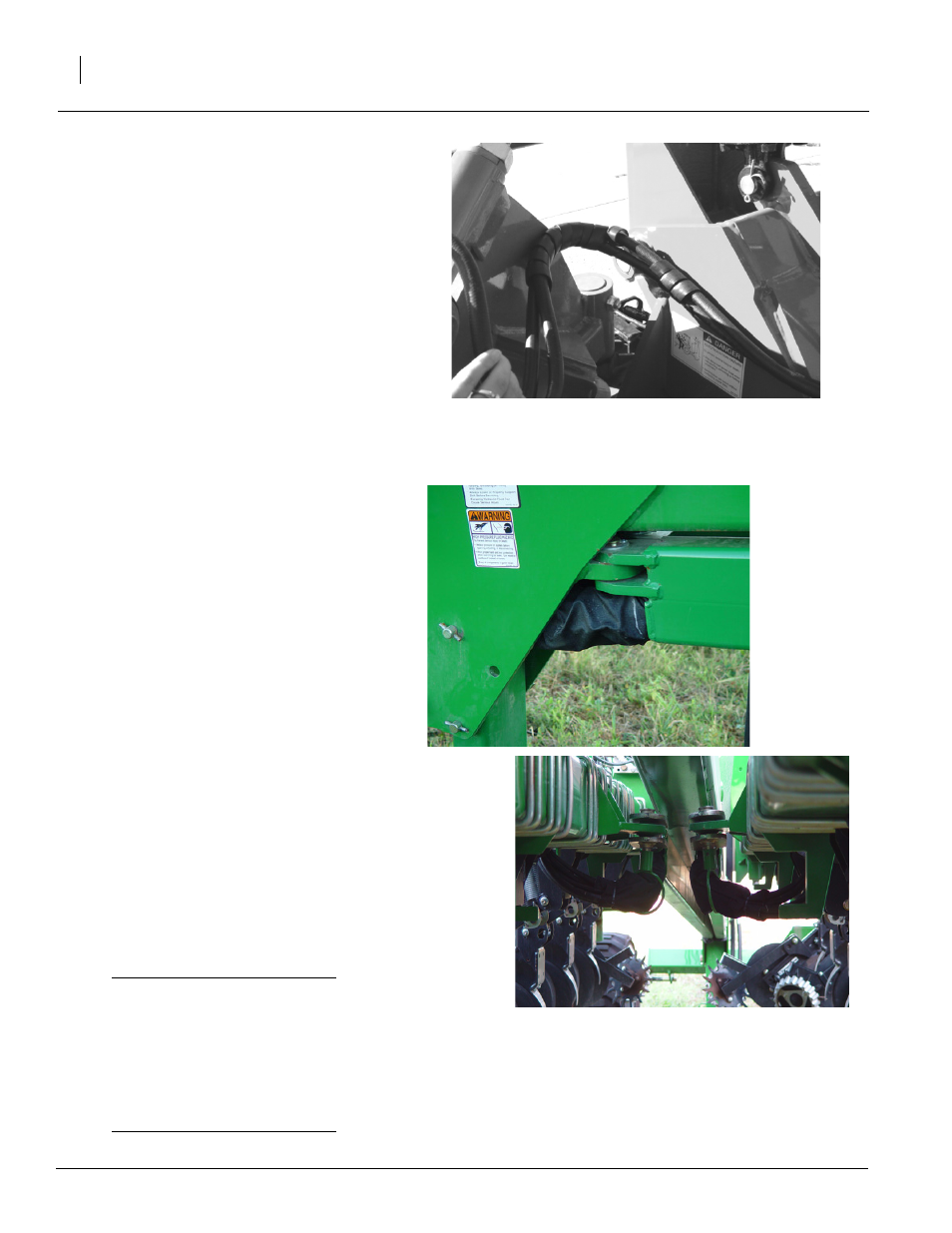

Figure 19
Vinyl Sleeves
Refer to Figure 18
7. Remove 3/8-16 x 2 3/4 bolt from marker pivot
pin. Secure 13/16 hose clip to pivot pin using
removed bolt. Using hose clip, secue hydraulic
hose that goes to gauge wheel lift cylinder.
8. The two 1 foot sections will wrap hydraulic hos-
es going to gauge wheel lift cylinder. Start
wrapping hoses from hose clip out toward cyl-
inder.
9. Repeat steps 4 and 5 on opposite side of
planter.
23419
Figure 18
Hose Clip and Spiral Hose Wrap
IMPORTANT! This is the end of instruc-
tions for the YP1225 and YP1625 Base Kit
Updates. If the planter is equipped with
fertilizer, please continue on to the next
page for instructions on installing the
YP1225 and YP1625 Fertilizer Kit Up-
dates.
