WASHABLE

FILTER

SUPPORT

FILTER

RETAINER

WASHABLE FILTER OR

DISPOSABLE MEDIA FILTER

IN FILTER CABINET

A00232

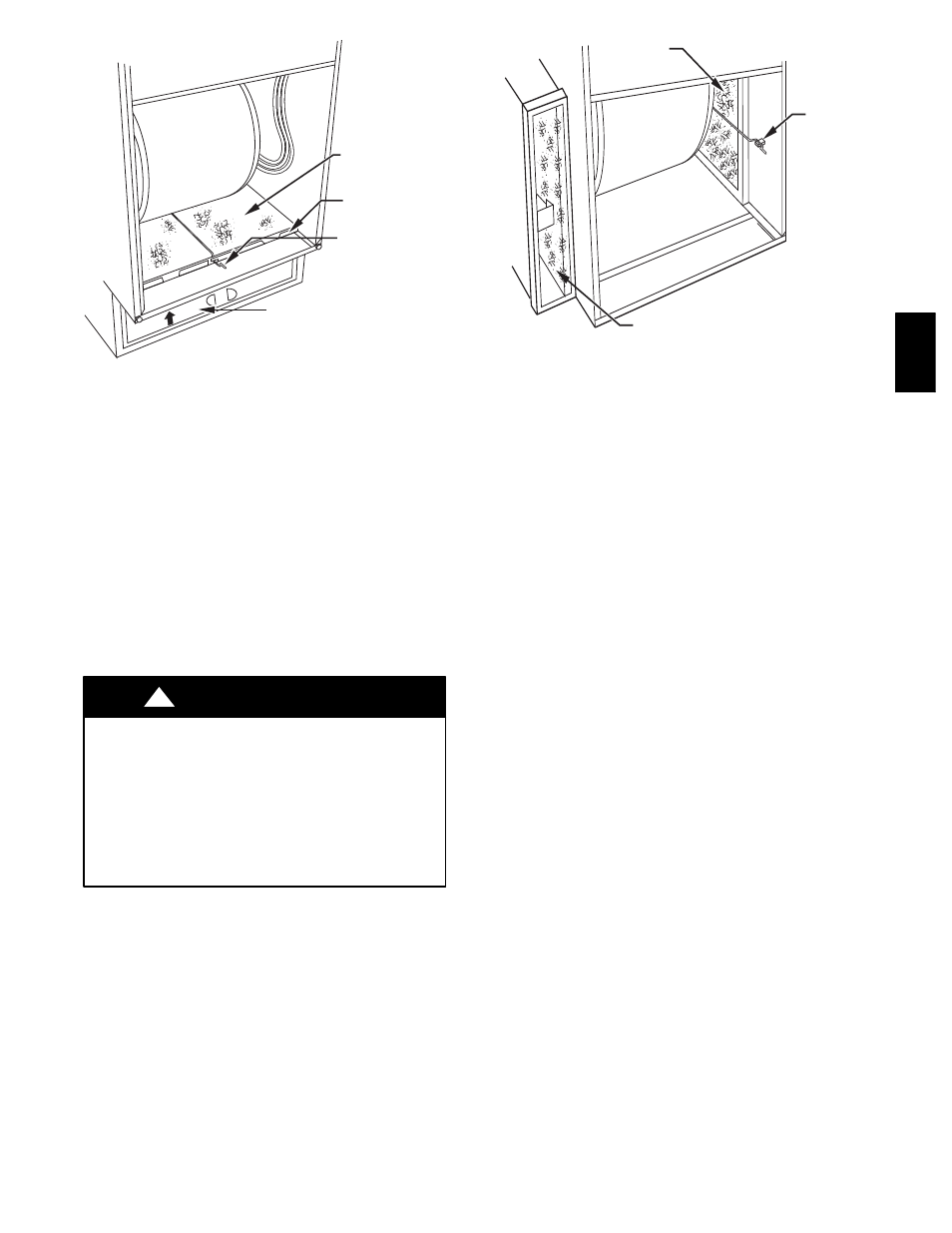

Fig. 3 -- Bottom Filter Arrangement

The minimum maintenance that should be performed on this

equipment is as follows:

1. Check and clean or replace air filter each month as needed.
2. Check blower motor and wheel for cleanliness annually.
3. Check electrical connections for tightness and controls for

proper operation each heating season. Service as
necessary.

4. Check for proper condensate drainage. Clean as necessary.
5. Check for blockages in combustion--air and vent pipes

annually.

6. Check burners for cleanliness annually.

A. CLEANING AND/OR REPLACING AIR FILTER

The air filter arrangement may vary depending on the application
or orientation.

CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal

injury or death.
Never operate unit without a filter or with the blower access

panel removed. Operating a unit without a filter or with the

blower access door removed could cause damage to the

furnace blower motor. Dust and lint on internal parts of

furnace can cause a loss of efficiency.

WARNING

NOTE: If the filter has an airflow direction arrow, the arrow
must point toward the blower.
To clean or replace filters, proceed as follows:
If filter is installed in filter cabinet adjacent to furnace:

1. Turn off electrical supply to furnace.
2. Remove filter cabinet door.
3. Slide filter out of cabinet.
4. If equipped with permanent, washable filter, clean filter by

spraying cold tap water through filter in opposite direction
of airflow. Rinse filter and let dry. Oiling or coating of the
filter is not recommended.

5. If equipped with factory specified disposable media filter,

replace only with a factory specified media filter of the

same size.

FILTER

RETAINER

WASHABLE

FILTER

IN FURNACE

WASHABLE FILTER OR

DISPOSABLE MEDIA

FILTER IN FILTER CABINET

A00233

Fig. 4 -- Filter Installed for Side Inlet

6. Slide filter into cabinet.
7. Replace filter cabinet door.
8. Turn on electrical supply to furnace.

If filter is installed in furnace blower compartment:

1. Turn off electrical supply to furnace.
2. Remove main furnace door and blower access panel.
3. Release filter retainer wire. (See Fig. 3 or 4.)

NOTE: Filters shown in Fig. 3 and 4 can be in furnace blower
compartment or in filter cabinet, but not in both.

4. Slide filter out of furnace.
5. Furnaces are equipped with permanent, washable filter(s).

Clean filter by spraying cold tap water through filter in
opposite direction of airflow.

6. Rinse filter and let dry. Oiling or coating filter is not

recommended.

7. Slide filter into furnace.
8. Recapture filter retaining wire.
9. Replace blower access panel and main furnace door.

10. Turn on electrical supply to furnace.

B. BLOWER MOTOR AND WHEEL MAINTENANCE

To ensure long life, economy, and high efficiency, clean
accumulated dirt and grease from blower wheel and motor

annually.
The inducer and blower motors are pre--lubricated and require no
additional lubrication. These motors can be identified by the

absence of oil ports on each end of the motor.
The following items should be performed by a qualified service

technician.
