Leveling the Drill
20 Series Opener Height
Refer to Figure 5
Using 3-point hitch, initially adjust drill so bottom of
opener tool bar tube runs 24in above ground when drill
is lowered in the field.
Refer to Figure 6
Note: When drill is level, parallel links will be running
slightly uphill towards the front.
The 1in dimension shown is a general dimension that
will vary with planting conditions.
Make sure the opener mount is running higher than the
opener body. This will ensure an ample reserve for opener
up-float in case the opener strikes a rock or other object.
25 Series Opener Height
Refer to Figure 7
Using 3-point hitch, initially adjust drill so bottom of
opener tool bar tube runs 26in above ground when drill
is lowered in the field.
Refer to Figure 8
Note: When drill is level, parallel links will be running lev-
el or slightly uphill towards the front.
The 1-inch dimension shown is a general dimension that
will vary with planting conditions.
Make sure the opener mount is running higher than the
opener body. This will ensure an ample reserve for opener
up-float in case the opener strikes a rock or other object.

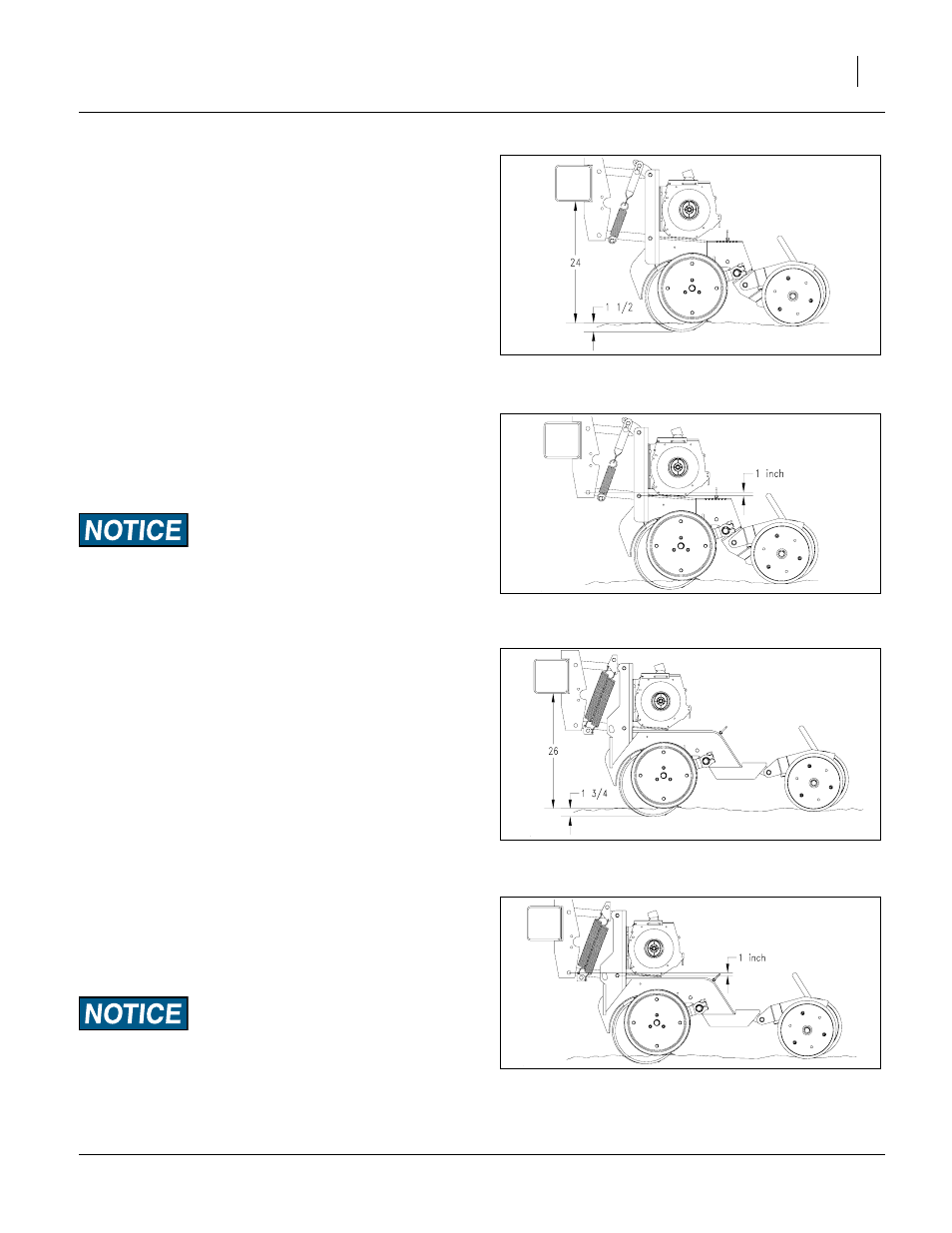

Figure 5
20 Series Initial Height
18280
Figure 6
20 Series Front/Back Level
18288
Figure 7
25 Series Initial Height
22530
Figure 8
25 Series Front/Back Level
22823
