1 x 12 Closing Wheel Option
The closing wheels can be adjusted for down pressure,
alignment and offset.
Down Pressure. Adjust the closing wheel so it has enough
down force to close the seed trench without unnecessary
compaction.
Start with T-handle in first notch. See Figure 3-8. If the seed
trench does not close, move handle to next notch and try
again. Keep moving handle back just until the seed trench
closes.

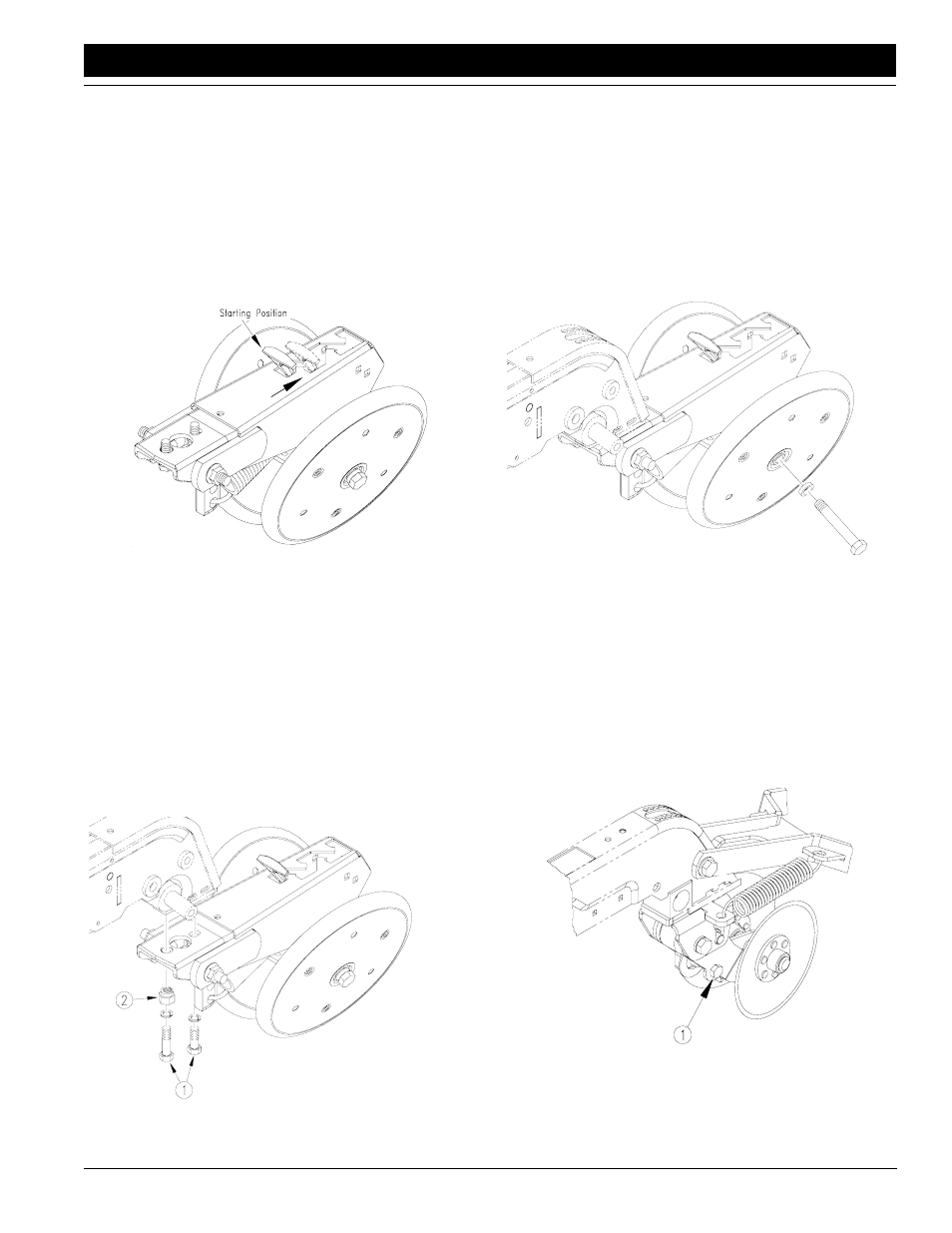

17888
Figure 3-8
Closing Wheel Down Pressure
Alignment. If one closing wheel is running in the seed
trench or closing wheels are not centered over the seed
trench, adjust closing wheels as follows.
1. Raise planter slightly to remove weight from closing
wheels.
7. Loosen two 1/2-inch mounting bolts (1) shown in Fig-
ure 3-9.
8. Turn adjuster cam (2) left or right to center wheels over
the seed trench.
9. Torque 1/2-inch mounting bolts as recommended on
Torque Value Chart, “Appendix,” page 30
17889
.
Figure 3-9
Closing Wheel Alignment
Offset. The closing wheels can be offset to help prevent
trash from plugging the closing wheels.
To offset the closing wheels:
1. Raise planter slightly to remove weight from closing
wheels.
2. Remove 5/8-inch bolt attaching wheel to press-wheel
arm. See Figure 3-10.
3. Move closing wheel to rear mounting hole and reattach
with 5/8-inch bolt. Torque bolt as recommended on
Torque Values Chart, “Appendix,” page 30.
17893
Figure 3-10
Closing Wheel Offset
If the closing wheels are not offset, mount wheels in the
front holes of press-wheel arm.
Closing Disk Option
For proper seed-to-soil contact, the closing disks must
have enough down pressure to close the seed trench with-
out unnecessary soil compaction.
To adjust down pressure on closing disks, ratchet spring
cam to next cam height by turning head of support bolt (1)
clockwise. Refer to Figure 3-11.
17890
Figure 3-11
Closing Disk and Tube Holes
