4 2013- Single Fold Marker Front Parts Great Plains Mfg., Inc.
113-850M Front Parts 2013-10-10
Install Right Mount
Refer to Figure 5
10. Select one new:
SFM-8669 Mounting Bracket Right SFM
two new:
FNS-024346 806-044C 5/8x5-1/16x5-1/2"
U-bolt U-BOLT 5/8-11 X 5 1/32 X 6
and four sets new:
FNS-56RPC 5/8"-11 NC Hex Nut
FNS-66RP 5/8" Split L/W YZ
11. With the arm to the rear, flat plate up, loosely install
the mounting bracket on the rear wing tool bar,
just outboard (right) of the wing cylinder mount
tube
.
12. Adjust the initial position of the bracket for a dis-
tance:
74.9 cm (29
1 ⁄
2
in.)
measured from the from right outside face of a
mount tab to the right rear end of the rear tool bar
(due to weld fillets, this measurement is approxi-
mate).
Leave fasteners finger-tight until step 28.
Null4:
Null4:

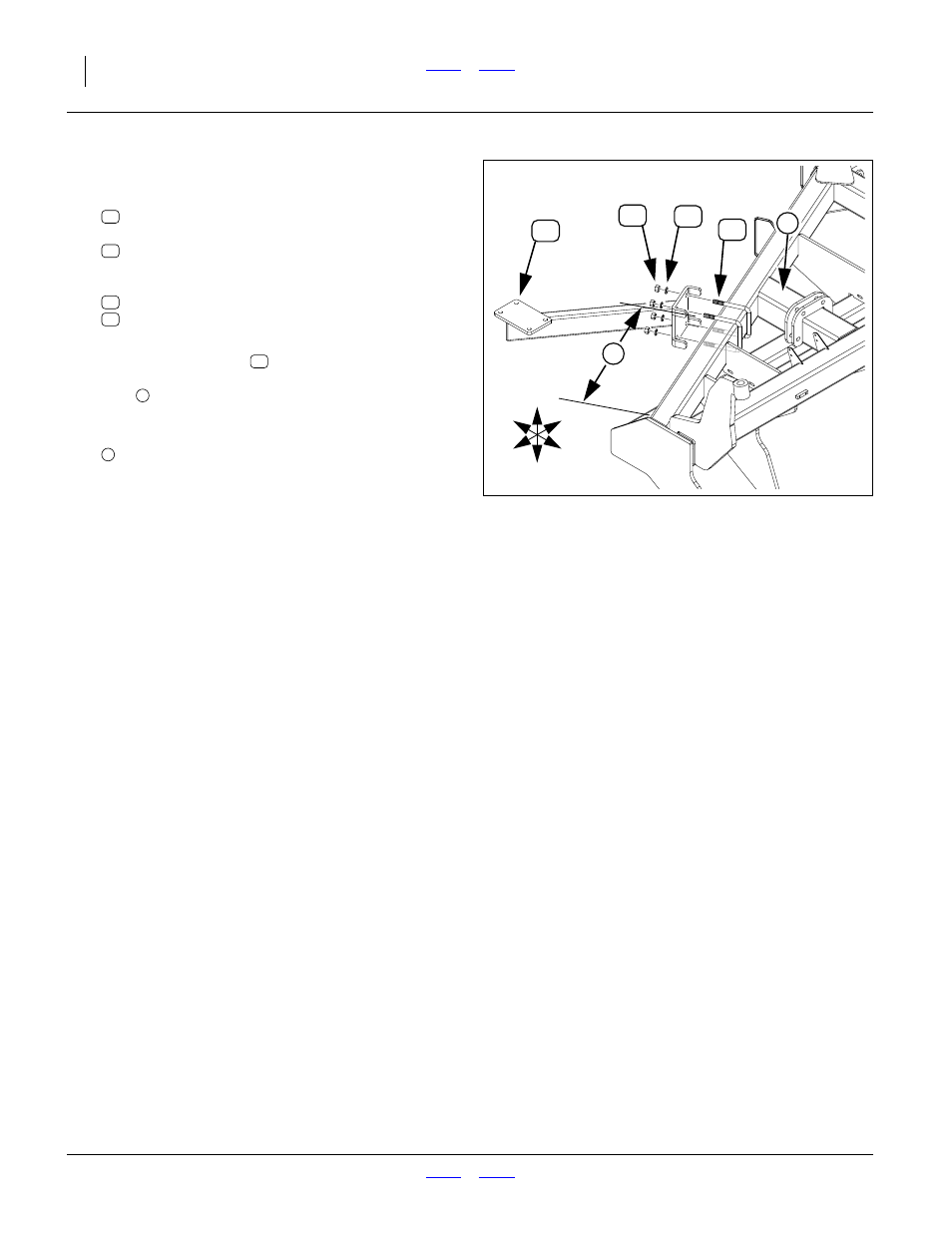

Figure 5
Install Right Mount
31338
22
41
67
38
U
D
R
L
F
B
1
3
67
22
38
41
67
1
3
