22 2013- Single Fold Marker Front Parts Great Plains Mfg., Inc.
113-850M Front Parts 2013-10-10
SA-9041 Disc Assembly Contents
Haukaas part numbers and descriptions are listed first.
New parts in the kit show these identifications.
For replacements, order the Great Plains part numbers
(if different) shown below the Haukaas numbers.
Null4:
Null4:

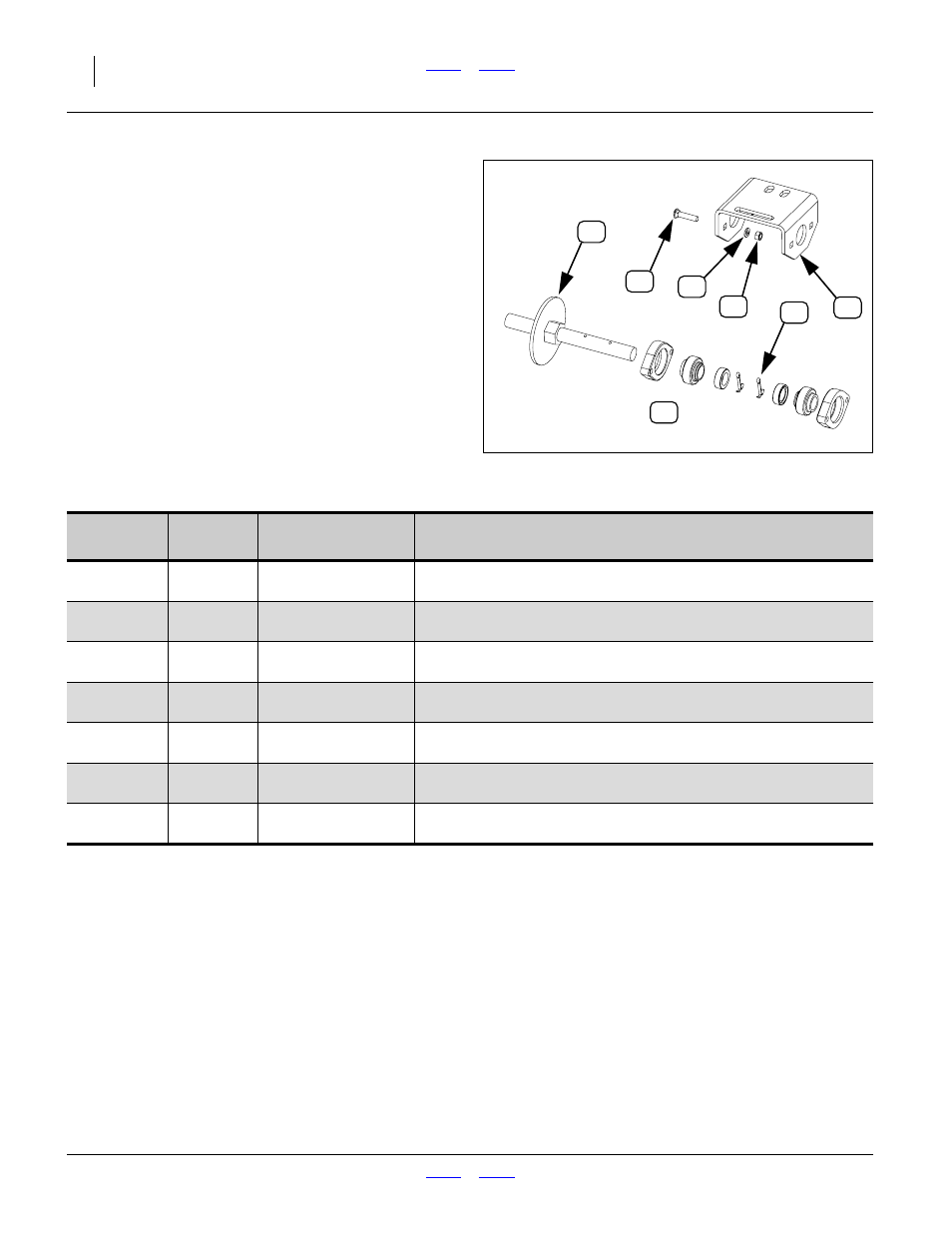

Figure 23
Haukaas Disc Assembly
31334
79
78
77
71
35
80
{
46
Figure 23
Callout
Quantity
in Kit
Haukaas Part No.
GP Part Number
Haukass Part Description
Great Plains Part Description
35
See
page 19
FNS-52RPC
803-014C
3/8" NC Hex Nut
NUT HEX 3/8-16 PLT
46
See
page 19
FNS-8CB-1BP
FNS-8CB-1BP 3/16 x 1-1/2 Cotter-Pin
3/16 x 1-1/2 Cotter-Pin
71
See
page 21
FNS-62RP
804-013C
3/8" Split L/W YZ
WASHER LOCK SPRING 3/8 PLT
77 8
FNS-221B5PC
802-453C
3/8x1-1/2" Carriage Bolt 5 PL
RHSNB 3/8-16X1 1/2 GR5
78 2
SA-8056
SA-8056 Disc Assembly Bracket
HAUKAAS DISC ASSEMBLY BRACKET
79 2
SA-8084
SA-8084 Disc Axle
HAUKAAS DISC AXLE
80 4
BRG-2476
BRG-2476 1" Bearing & Housing Assembly (2 Blt)
HAUKAAS 1" BRG & HSG COMP 2BLT
