Great Plains Manufacturing, Inc. Assembly 15
03/06/2014 566-224Q
5113-5115 Wings
Refer to Figure 17
66. Attach wings
with 3/4 x 2 1/2 hex bolts 3/4 lock
washers and 3/4 nuts.
67. Tighten all u-bolts to specs, See “Torque Values
Chart” on page 17.
Note: Folding models will be shipped with wings attached.
Light Brackets
Note: Model 5109 light brackets will be installed in the
proper location but turned towards inside of ma-
chine. See machine layout in Appendix for proper lo-
cation.
Refer to Figure 18
68. Remove 1/2 x 4 1/32 x 7 1/4 u-bolts
from light
bracket assembly . Rotate light bracket assembly
180 degrees. Re-install 1/2 x 4 1/32 x 7 1/4 u-bolts ,
secure with 1/2 lock washers and 1/2 nuts.
69. Tighten all u-bolts to specs, See “Torque Values
Chart” on page 17.
70. Attach light plug to light wiring harness that is
pre-assembled to frame.

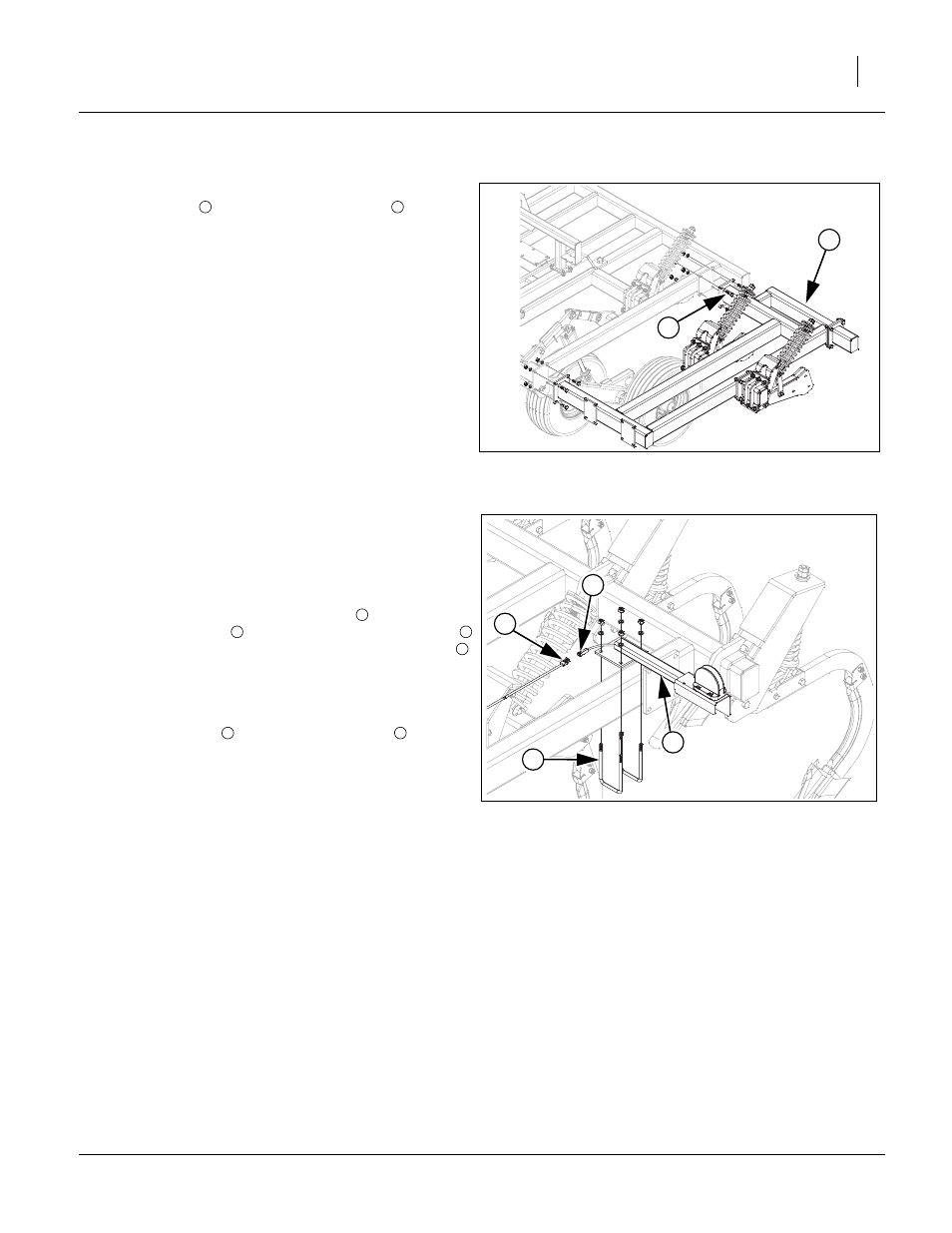

Figure 17
5113-5115 Wings
42728
1
2
1 2
1
2
4
3
Figure 18
Light Brackets
42644
2
1 1
2
3 4
