4. Touch [ More ] for next screen.
Refer to Figure 13
Continue at “Channel Setup: Hydraulic Drive” on
page 32.
Channel Setup: Hydraulic Drive
5. Touch Channel Setup .

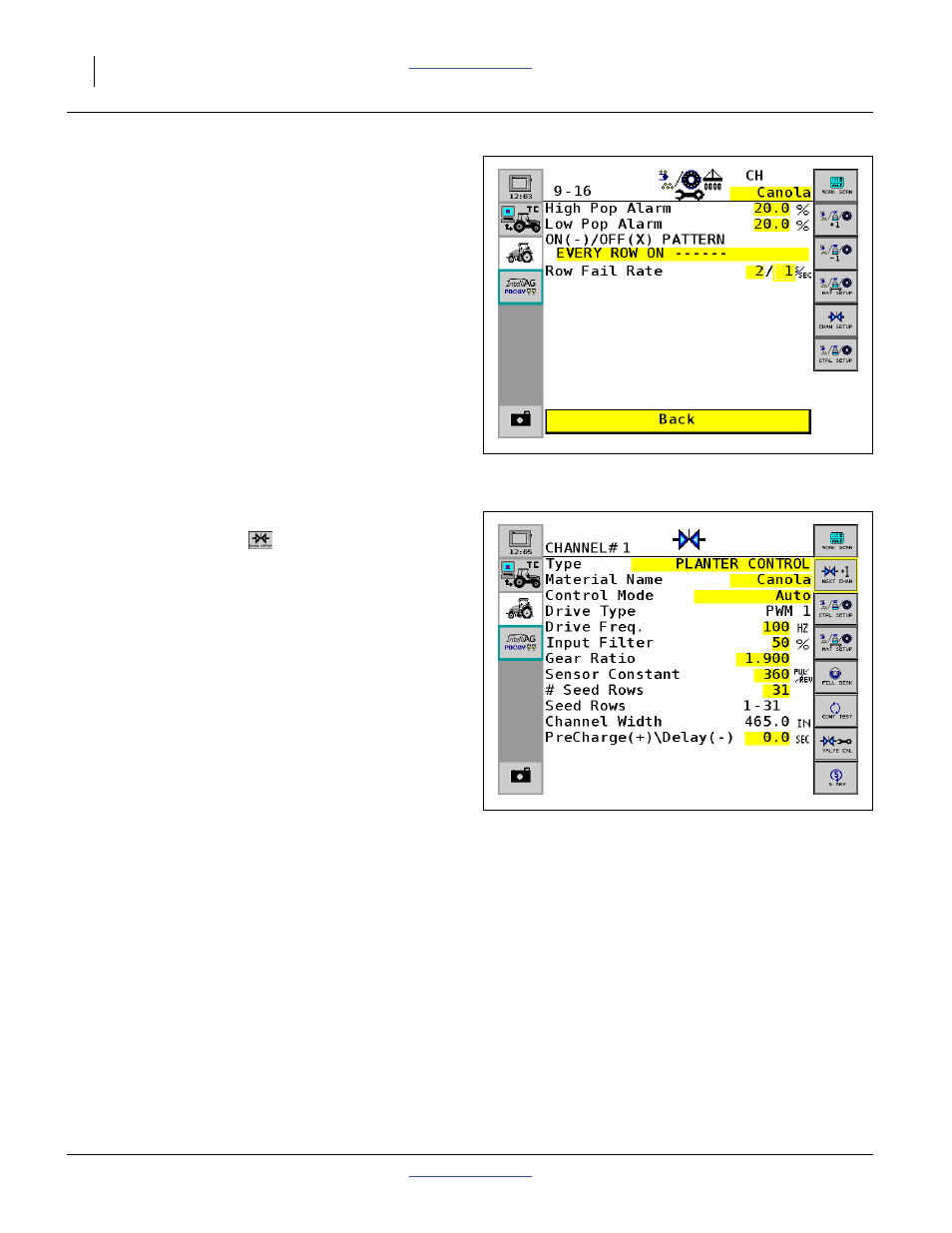

Refer to Figure 13(for a YP4025A-3115)
High / Low Pop
Alarm , but ignored
due to blockage setup later
PATTERN EVERY ROW ON ------
Row Fail Rate 2/ 1 s/sec
Figure 13
Material Setup, Hydraulic Drive
36074
Type must be PLANTER CONTROL
for hydraulic drive
Material Name the Canola name just set up
Control Mode Auto
Drive Freq. 100 Hz
Input Filter 50 %
Gear Ratio 1.900
Sensor Constant 360 Pul/Rev
# Seed Rows active row pattern>
PreCharge 0.0 Sec
Figure 14
Channel Setup, Hydraulic Drive
36071
