Great Plains Manufacturing, Inc.
Tractor Sensor Module Installation
401-768M
06/16/2011
John Deere Tracked Tractors
Refer to Figure 15
The Steering Sensor Module
with module master input
harness (gray end plug) connected.
Optional adaptor harness for John Deere tracked
tractors
is necessary when the tractor wheel angle
signal cannot be obtained from the CANbus on the trac-
tor.
833-546C HARNESS JD WHEEL ANGLE SENSOR
Null4:
Refer to Figure 16, Figure 17 and Figure 18
The tractor Steering Angle Sensor
is mounted on the
bottom end of the steering column. It is accessible from
the right side of the tractor just in front of the cab.
Null4:
Null4:

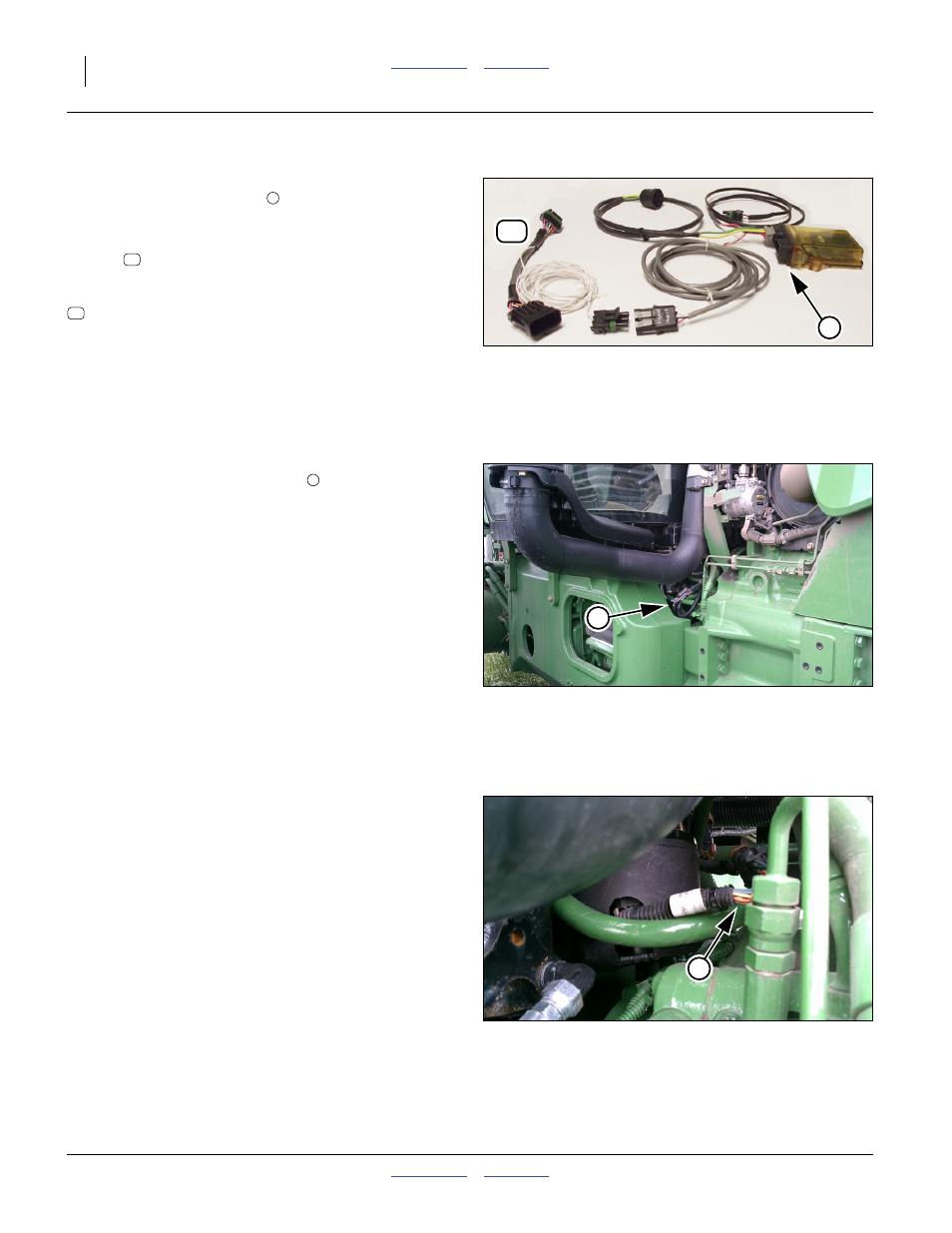

Figure 15
John Deere Tracked Tractors
Adaptor Harness
31837
1
1
Null4:
Figure 16
John Deere Tracked Tractor
Sensor Harness
31850
3
3
Null4:
Figure 17
John Deere Tracked Tractor
Right Side Sensor Location
31851
3
