Refer to Figure 16
6.
Check that the seed/fertilizer flap is closed so seed
and fertilizer cannot pass between compartments.
Flap flips forward to block passage. The flap top
edge is secured to the dividers. Rotate the bent clips
to engage the edge of the flap, and tighten the
knobs.
Refer to Figure 17
7.
Check that fertilizer clean-out door is latched
securely
as shown. Close all door latches before
loading fertilizer compartment.
Refer to Figure 18
8.
Open main seed box lid.
9. Raise spill flap over fertilizer compartment and swing
it forward until it rests against open drill box lid. The
spill flap serves as a spill guard to keep fertilizer out
of the seed compartment.
10. Fill fertilizer compartment.
11. Calibrate fertilizer application rate as explained in the
Seed Rate manual.

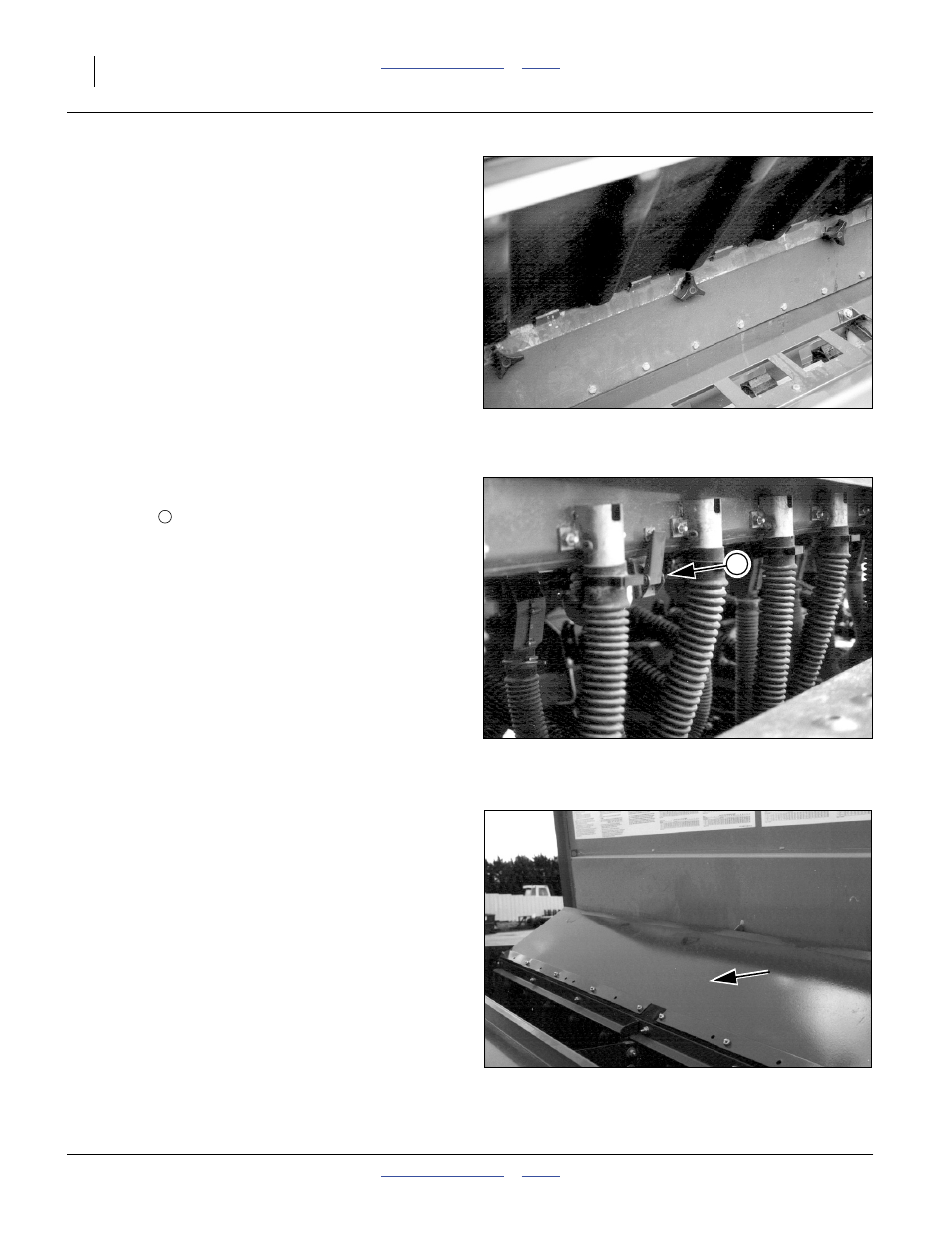

Figure 16
Seed/Fertilizer Flap Closed
16383
Figure 17
Clean-out Door Latch
16377
1
1
Figure 18
Spill Flap Open to Fertilizer
14875
