24 CTA4000
160-269M-A 08/03/2010
Folding and Unfolding
Fold and unfold implement on level ground. Be aware of
clearance required to fold implement. See “Specifica-
tions and Capacities” on page 55.
Electrocution hazard. To prevent serious injury or death from
electric shock, keep clear of overhead power lines when trans-
porting, folding, unfolding or operating all air implement com-
ponents. Machine is not grounded. At higher voltages,
electrocution can occur without direct contact.
Overhead crushing hazard. To prevent serious injury or death:
▲ Always use lock pins when implement is folded.
▲ Fold implement only if fold hydraulics are bled free of air
and fully charged with hydraulic oil. See “Bleeding
Hydraulics” on page 15.
▲ Keep away and keep others away when folding or unfolding
implement.
Folding the Implement
Refer to Figure 23
1. If installed, fold the markers
1
.
2. Set tractor circuits to neutral.
3. Set both valve handles to FIELD.
4. Activate the tractor circuit to raise the openers, and
then set the circuit control to neutral (not float).
Refer to Figure 24
5.
Set the Field/Transport valve handle to TRANS. This
hydraulically locks the openers in the raised configu-
ration.
Refer to Figure 25
6.
Turn the Field/Folding valve handle to FOLD.
7. Set tractor at low idle speed.
8. Engage tractor hydraulics and fold implement wings.
1 Great Plains does not presently offer markers for the CTA4000.
If installed, consult the documentation provided by the marker supplier.

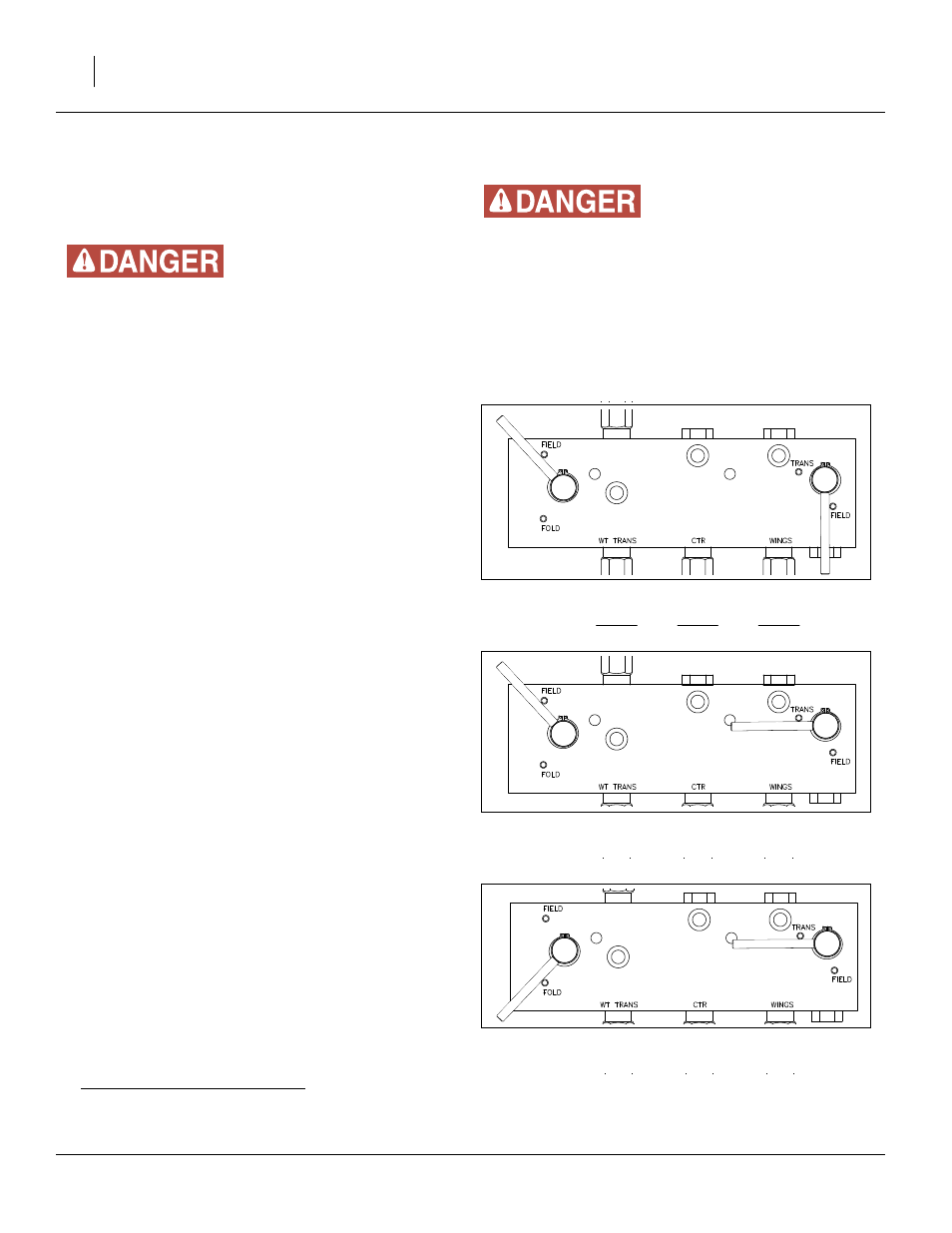

Figure 23
Handles for Pre-Fold Lift
26372
Figure 24
Handles for Pre-Fold Lift-Lock
26373
Figure 25
Handles for Fold
26373
