22 CTA4000
160-269M-A 08/03/2010

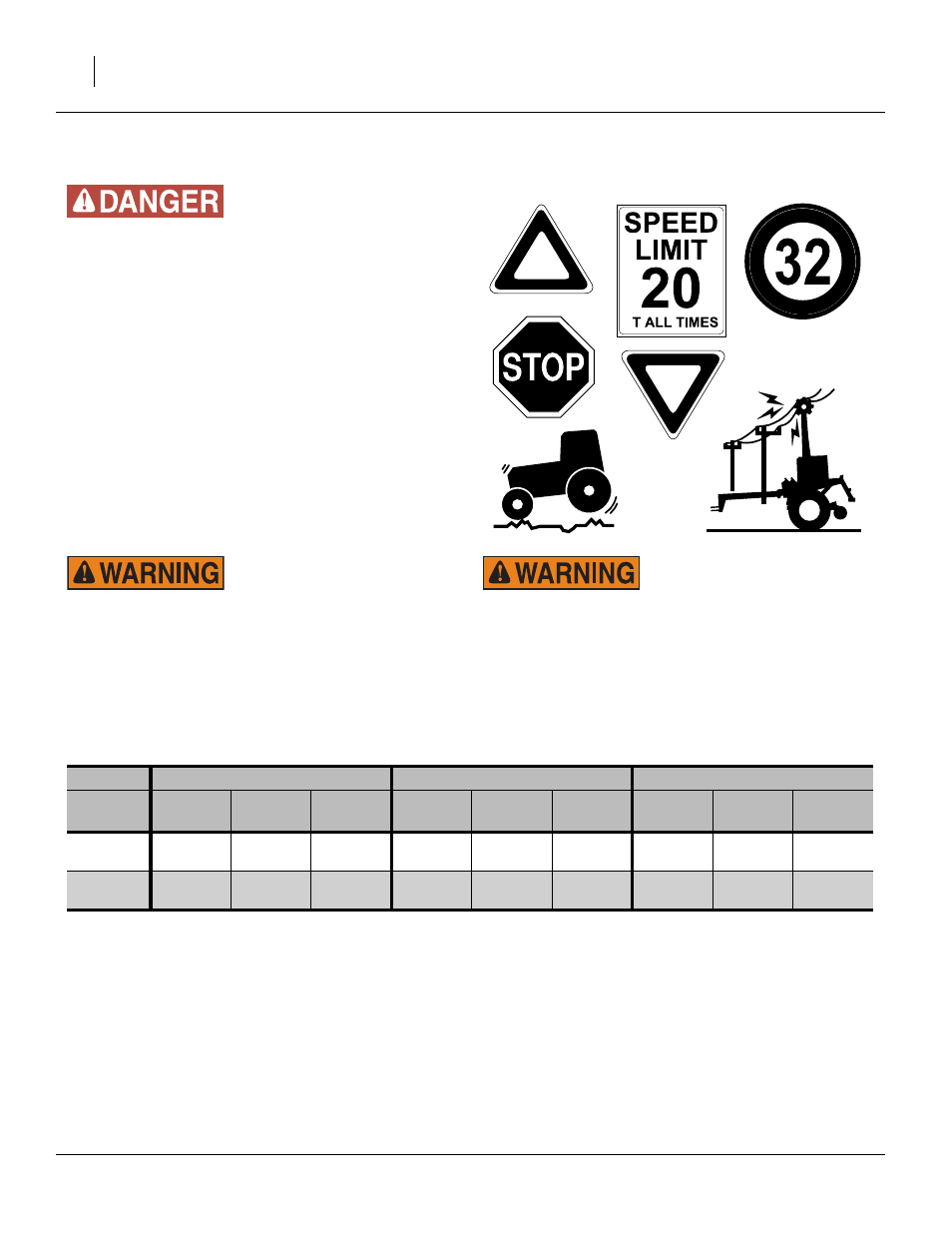

Transport
Electrocution hazard. To prevent serious injury or death from
electric shock, keep clear of overhead power lines when trans-
porting, folding, unfolding or operating all air implement com-
ponents. Machine is not grounded. At higher voltages,
electrocution can occur without direct contact.
Great Plains recommends transporting the assembly
with cart empty. Although designed for highway move-
ment when loaded, the additional weight of seed may
cause the implement assembly to exceed the rated abil-
ity of the tractor, makes the assembly more difficult to
control and stop, and increases wear on cart tires and
wheel bearings.
Use a tractor that weighs at least 2/3 (67%) of the imple-
ment plus cart assembly weight (see table below).
Towing the implement at high speeds or with a vehicle that is
not heavy enough can lead to loss of vehicle control. Loss of
vehicle control can lead to serious road accidents, injury and
death. To reduce the hazard:
▲ Do not exceed 20 mph (32 kph).
▲ Do not tow an assembly that weighs more than 1.5 times the
weight of the towing vehicle. (See table below)
The implement is designed to hitch to a Great Plains air cart
only. Hitching the implement to any vehicle other than a Great
Plains air cart will create an unstable towing load and can
lead to road accidents, injury and death. To avoid the hazard,
transport hitched to a Great Plains air cart.
A
CTA4000 No Extra Weights One Weight Kit Two Weight Kits
Rows
6 in
(15.2 cm)
7.5 in
(18.9 cm)
10 in
(24.8 cm)
6 in
(15.2 cm)
7.5 in
(18.9 cm)
10 in
(24.8 cm)
6 in
(15.2 cm)
7.5 in
(18.9 cm)
10 in
(24.8 cm)
ADC2350
Empty
21773 lbs
9876 kg
20700 lbs
9389 kg
19748 lbs
8958 kg
23173 lbs
10511 kg
22100 lbs
10024 kg
21148 lbs
9593 kg
24573 lbs
11146 kg
23500 lbs
10659 kg
22548 lbs
10228 kg
ADC2350
Full
44173 lbs
20037 kg
43100 lbs
19550 kg
42148 lbs
19118 kg
45573 lbs
20672 kg
44500 lbs
20185 kg
43548 lbs
19753 kg
46973 lbs
21307 kg
45900 lbs
20820 kg
44948 lbs
20388 kg
* Figures do not include markers. If near limit, use Appendix data to calculate actual weight of your cart and drill configuration.
