14 CTA4000
160-269M-A 08/03/2010

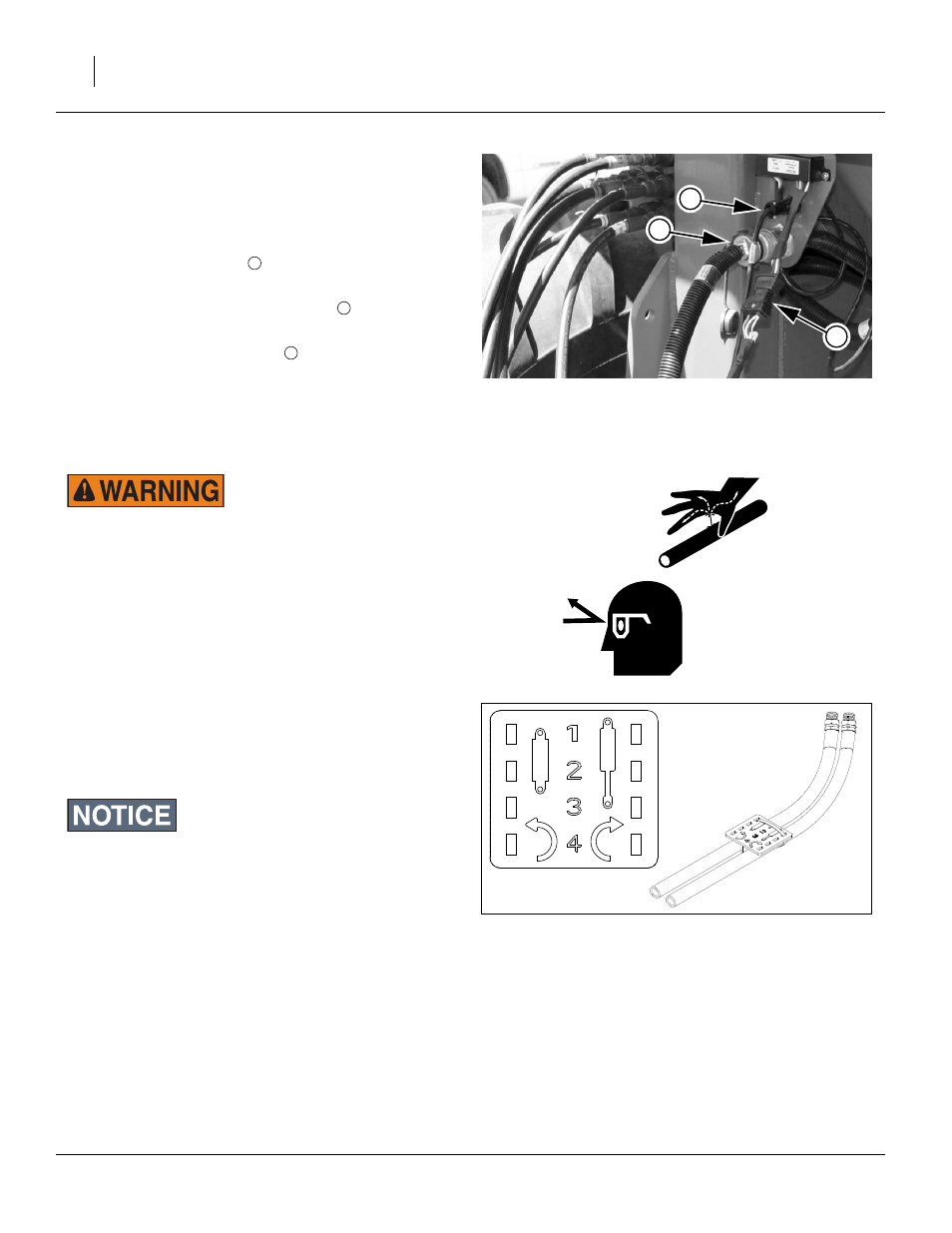

Make Electrical Connections
Refer to Figure 7
Make sure tractor is shut down with accessory power off
before making connections.
1. Mate the lighting plug to the outlet connector on
the cart.
2. Mate the implement lift switch plug to the outlet
connector on the cart.
3. Mate the seed monitor plug to the outlet connector
on the cart.
4. Secure cables so they are clear of moving parts at
the hitch.
Make Hydraulic Connections
Only trained personnel should work on system hydraulics!
Escaping fluid under pressure can have sufficient pressure to
penetrate the skin, causing serious injury. Avoid the hazard by
relieving pressure before disconnecting hydraulic lines. Use a
piece of paper or cardboard, NOT BODY PARTS, to check for
leaks. Wear protective gloves and safety glasses or goggles
when working with hydraulic systems. If an accident occurs,
seek immediate medical attention from a physician familiar
with this type of injury.
Refer to Figure 8
To distinguish hoses on the same hydraulic circuit, refer
to plastic hose label. The hose under an extended-cylin-
der symbol feeds a cylinder base end. The hose under a
retracted-cylinder symbol feeds a cylinder rod end.
DO NOT connect the return line to a
power-beyond-port.
Figure 7
Lift & Monitor
26439
2
3
1
1
2
3
Figure 8
Plastic Hose Label
817-348c
17641
