Eyebolt Adjustment
Refer to Figure 20
Before using the implement, check that the opener
frames are level across the implement. When fully
raised, the top of the opener mounts
should clear the
bottom of the top frame tube by at least 1 ⁄
2
inch
(13mm).
Adjust opener frames so all openers have the same
clearance. To raise or lower an opener frame, loosen jam
nut
on opener-lift cylinder and turn adjustment nut .
When openers are at correct height, retighten jam nut.
Repeat for each opener frame if necessary.

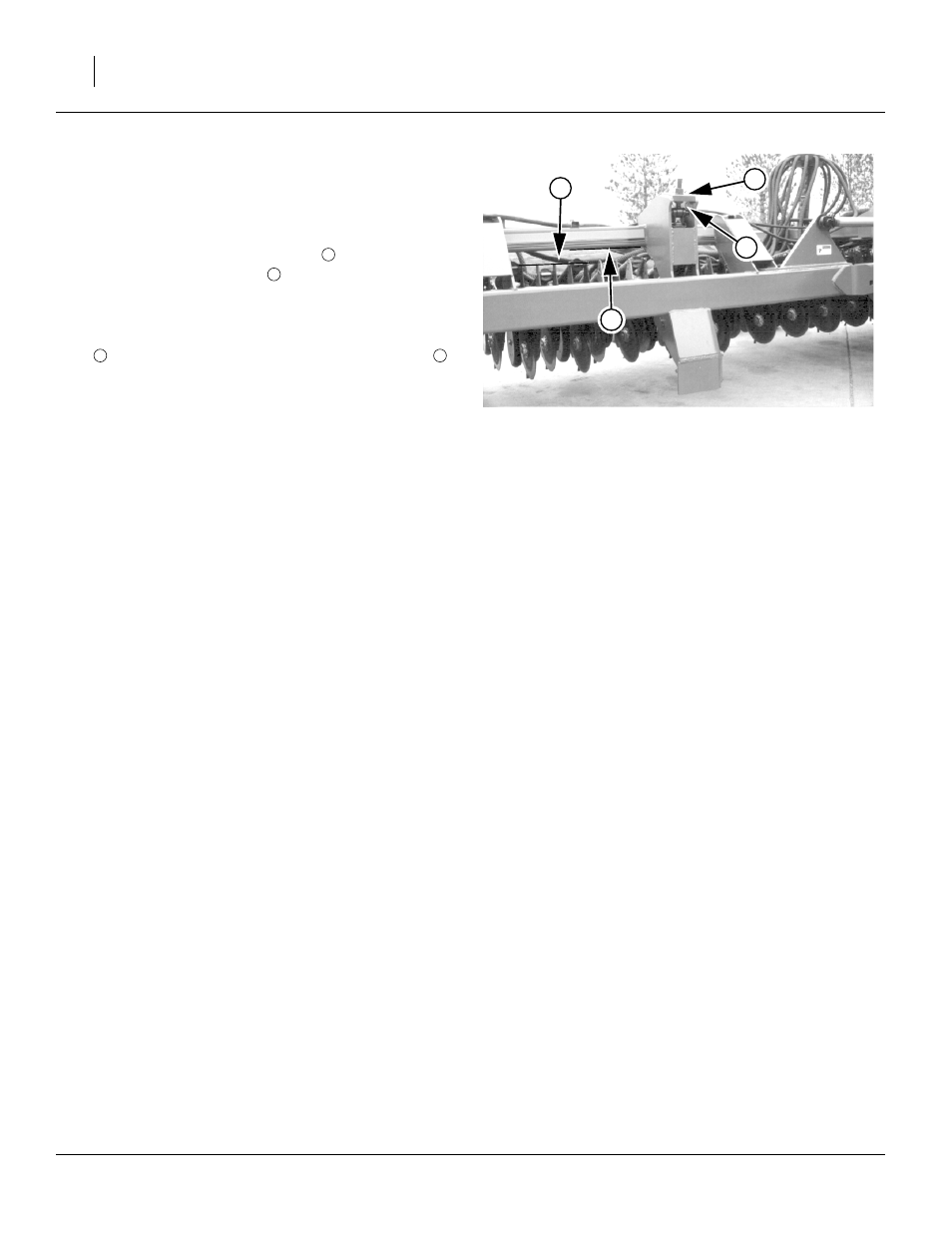

Figure 20
Opener Height Eyebolt
17159
2
1
3
4
1
2
3 4
