Rear Stand
Refer to Figure 14
If machine is equipped with a rear attachment, be sure you install
the rear jack stand so machine doesn’t tip backwards when unhook-
ing machine from tractor.
55. Attach the rear stand bracket
to the center of, the rear
tube of the drag frame as close to center of machine as
possible with 5/8 x 4 x 5 1/2 u-bolts
, 5/8 lock washers
and 5/8 nuts.
56. Slide the rear stand
through the rear stand bracket
,
secure with the 3/4 x 4 1/2 pin rear stand bracket
and
retainer.
57. Once the options are installed, fold the Plains Plow to
check for clearance and interferences, also watch that
hoses do not get pinched.
Note: Double check that all bolts are tightened to specs, See
“Torque Values Chart” on page 15.Consult the “Oper-
ator’s Manual”, for the first time field adjustments before
going to the field.
1

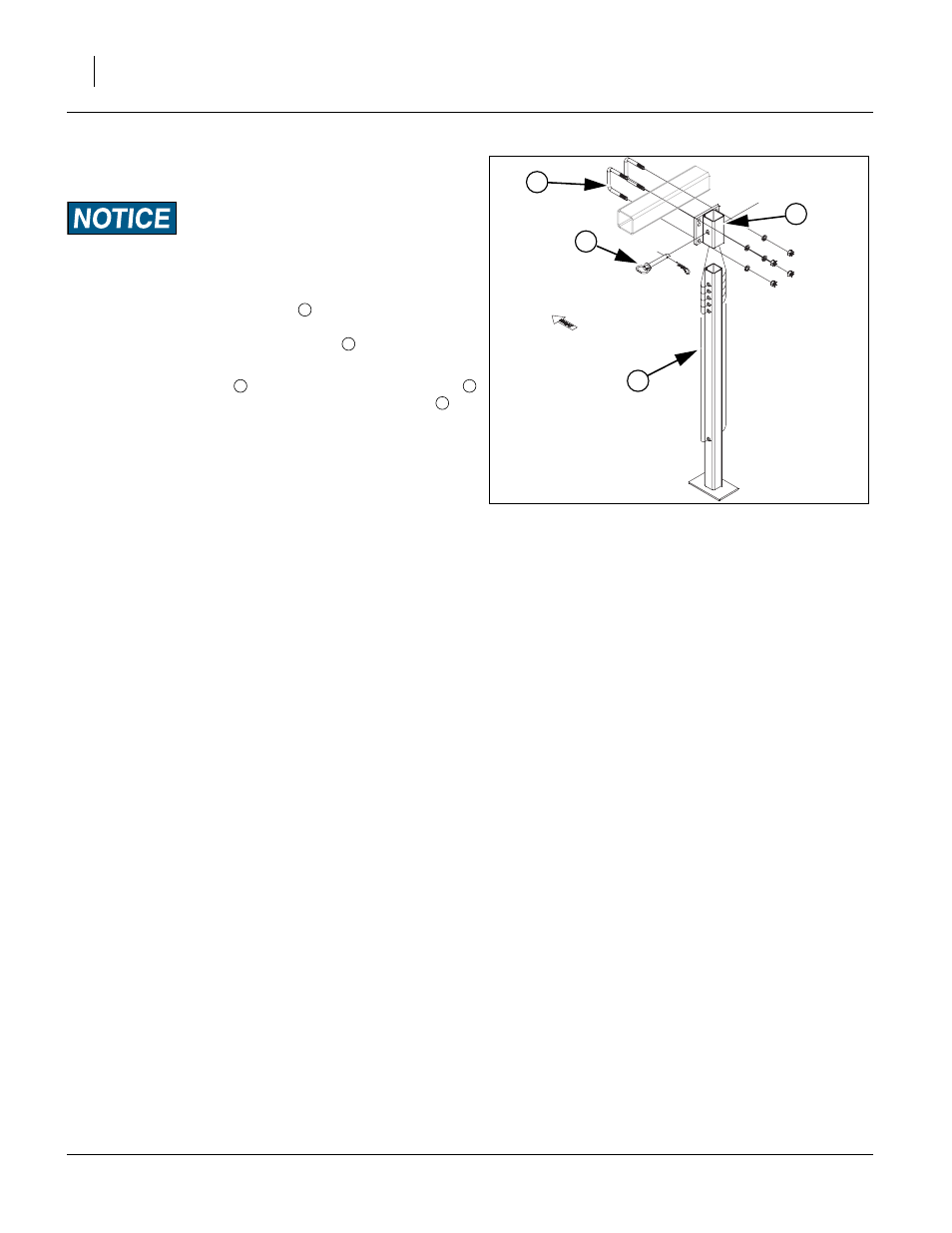

Figure 14
