8

9322-9756PP

Great Plains Manufacturing, Inc.

580-043Q

02/17/2014

9326-9756 Hitch Assembly

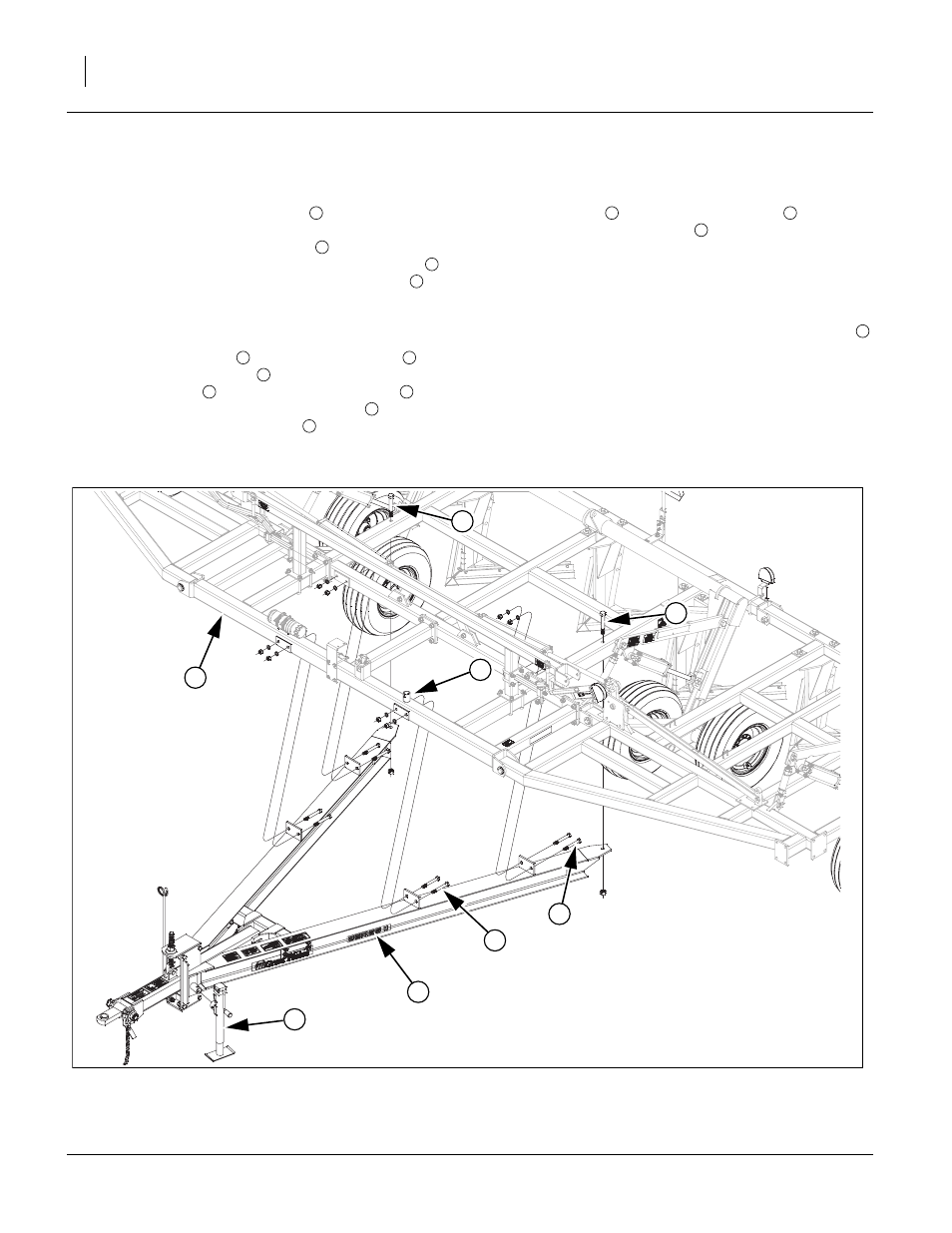

Refer to Figure 5
Note: The center frame and wings

will be shipped all

assembled and hydraulics all hooked up and
charged. The hitch assembly

will shipped with

all components installed. The hitch assembly
may need bolted to center frame assembly

,

hydraulics hooked to tractor and pulled off side of
truck if two heavy fork lifts are not available to
unload, as machines are very heavy.

22. Remove 1 hex bolts

and 3/4 x 6 hex bolts

from

center frame assembly

. Carefully align holes of

hitch assembly

to center frame assembly

, as

shown and re-install the 1 x 6 hex bolts

and 1 lock

nuts and the 3/4 x 6 hex bolts

, 3/4 lock washers

and 3/4 nuts to secure.

23. Remove jack

from center frame stub

and pin to

left side of hitch assembly

as shown.

24. Tighten all bolts with lock nuts snug but do not

torque, Tighten all other bolts to specs, See “Torque
Values Chart
” on page 15.

25. Unroll hoses and light harness that is on center

frame route under wing stop through hose support
on front of tractor. There should be about 3’ of hose
in front of hitch clevis to hook to tractor. The machine
may now be pinned to tractor and hydraulic hoses
attached, See “Hydraulic Hose Hookup” on
page 11 to mak
e rest of assembly easier to fold or
unfold wings or to raise and lower lift cylinders as
needed.

2

1

1

2

3

4

2

1

2

3

4

5

6

1

7

Figure 5

9326-9756 Hitch Assembly

43020

2

4

3

6

5

1

4

3
