Assembly
9322 Hitch Assembly
Refer to Figure 4
Note: The center frame and wings
will be shipped all
assembled and hydraulics all hooked up and
charged. The hitch assembly
will be shipped
with all components installed. The hitch assembly
may need bolted to center frame assembly
,
hydraulics hooked to tractor and pulled off side of
truck if two heavy fork lifts are not available to
unload, as machines are very heavy.
18. Remove 1 x 6 hex bolts
from center frame assem-
bly
. Carefully align holes of hitch assembly
to
center frame assembly
, as shown and re-install
the 1 x 6 hex bolts
, secure with the 1 lock nuts.
19. Remove jack
from center frame stub
and pin to
left side of hitch assembly
as shown.
20. Tighten all lock nuts snug but do not torque.
21. Unroll hoses and light harness that is on center
frame, route under wing stop through hose support
on front of tractor. There should be about 3’ of
hose in front of hitch clevis to hook to tractor. The
machine may now be pinned to tractor and hydraulic
hoses attached, See “Hydraulic Hose Hookup” on
page 11 to make rest of assembly easier to fold or
unfold wings or to raise and lower lift cylinders as
needed.
2
1
1
2
3
2
1
2
3
4
5
1
6

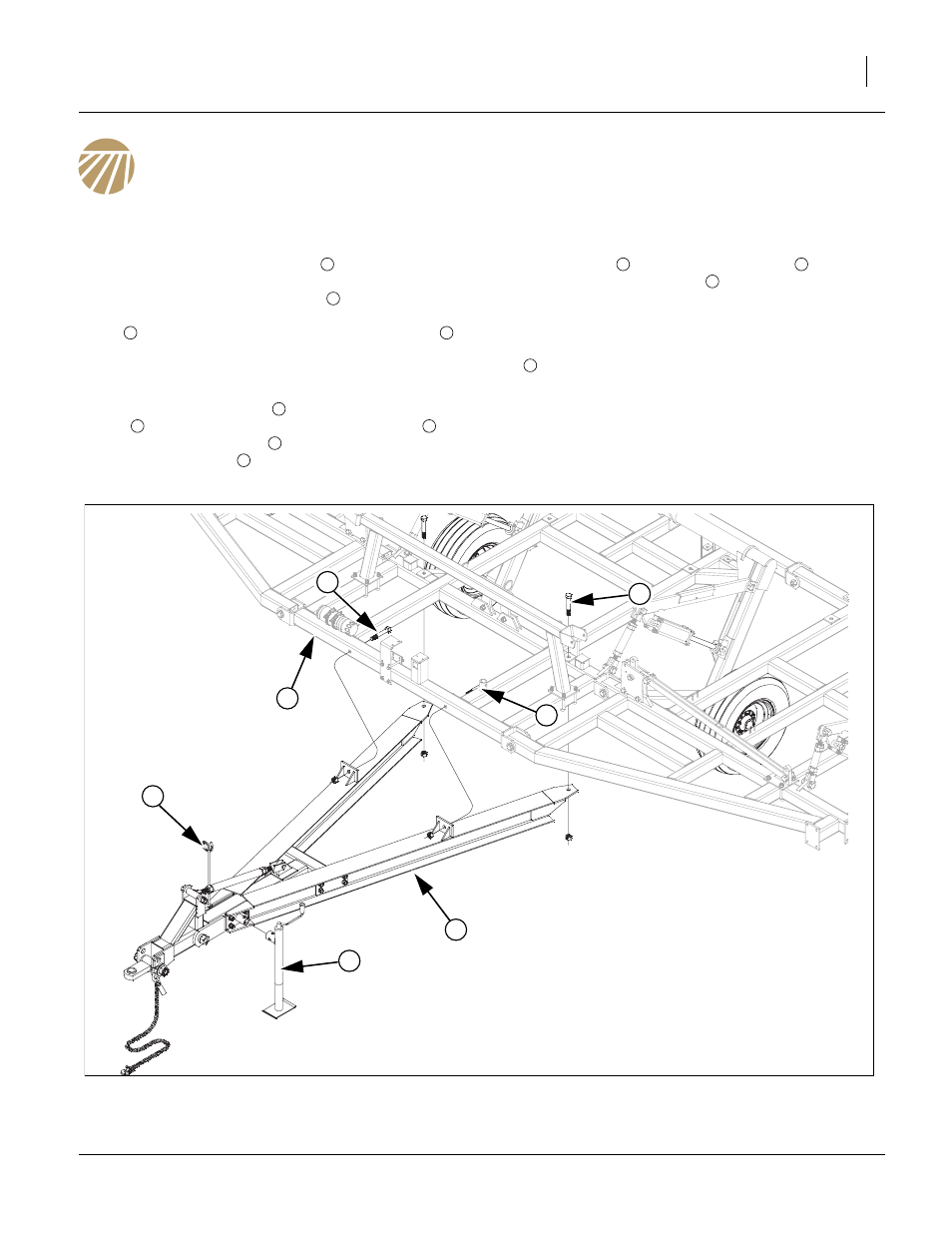

Figure 4
9322 Hitch Assembly
43022
