Section 7 Specifications and Capacities

12/29/2011

PH-15, PH-20, PFH-15 and PFH-20 Precision Fertilizer Hitch 148-365M

Great Plains Mfg., Inc.

Section 7

Specifications and Capacities

PH-15

PH-20

Coulter Spacing, Inches

6

7.5

8

10

15

Twin Row

6

7.5

8

10

15

Twin Row

Coulters per Hitch

30

24

22

18

12

12

40

32

30

24

16

16

Weight in Pounds*

6950

6560

6430

6170

5780

5780

7735

7215

7085

6695

6175

6175

Working Width

15 feet

20 feet

Transport Width

15 feet 4 inches

20 feet

Length, Hitch Alone

12 feet 1 3/4 inches

12 feet 1 3/4 inches

Length with Drill

18 feet 1 3/4 inches

18 feet 1 3/4 inches

Transport Height with Tanks

7 feet 5 inches

7 feet 5 inches

Transport Clearance, Coulters

16 1/4 inches

16 1/4 inches

Transport Clearance, Drill Open-

ers

17 inches

17 inches

Transport Tires

11L x 15, 18-Ply

11L x 15, 18-Ply

Tractor Requirements** Two hydraulic remotes (four outlets); 110 -

1l50 horsepower

Two hydraulic remotes (four outlets); 145 -
185 horsepower

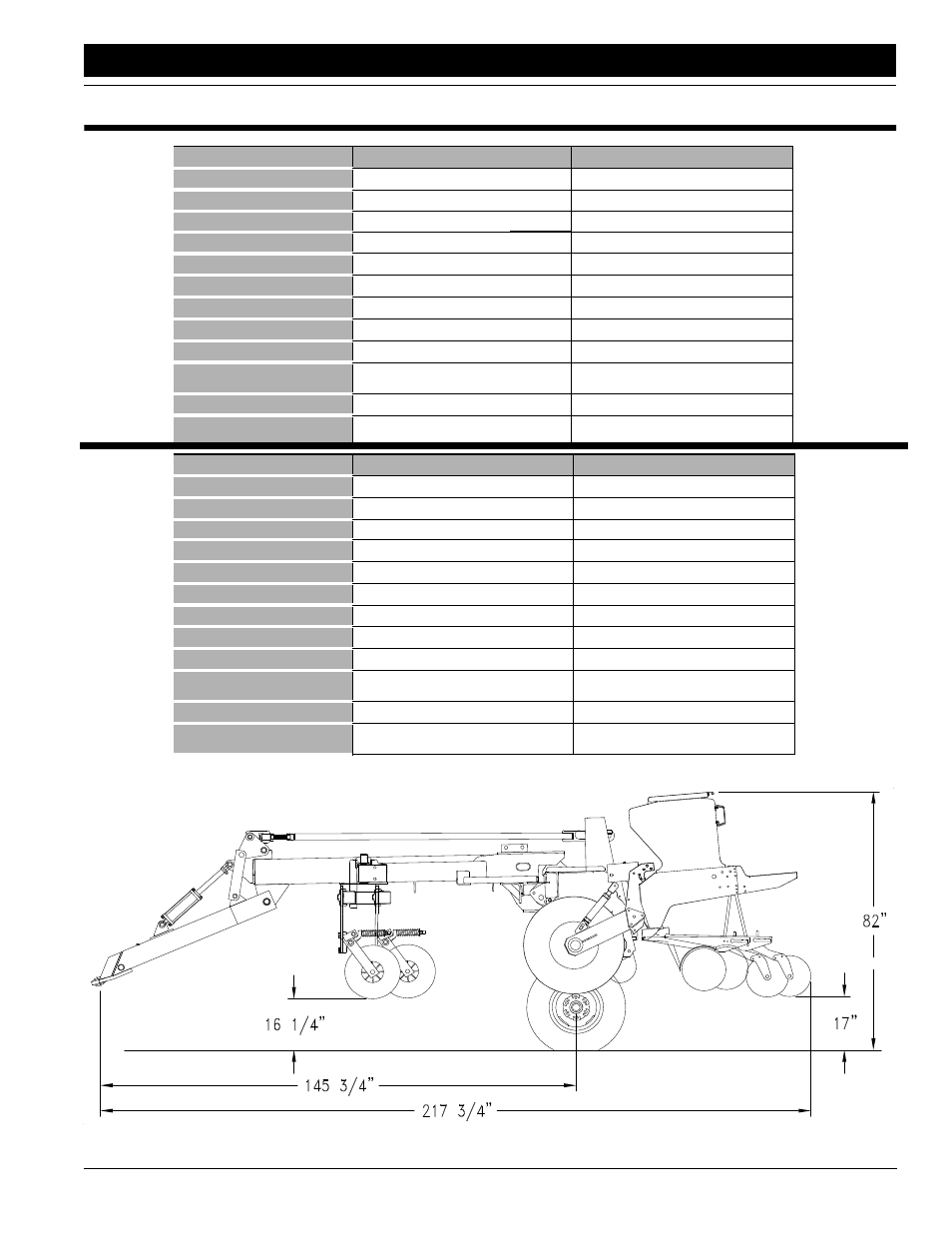

Figure 7

Specification Drawing

18148

* Listed weights include fertilizer options on the PFH models and marker attachments on all models

** Horsepower requirements will vary with field conditions, terrain and optional attachments.

PFH-15

PFH-20

Coulter Spacing, Inches

6

7.5

8

10

15

Twin Row

6

7.5

8

10

15

Twin Row

Coulters per Hitch

30

24

22

18

12

12

40

32

30

24

16

16

Weight in Pounds*

8160

7686

7528

7212

6738

6738

9125

8493

8335

7861

7229

7229

Working Width

15 feet

20 feet

Transport Width

15 feet 4 inches

20 feet

Length, Hitch Alone

12 feet 1 3/4 inches

12 feet 1 3/4 inches

Length with Drill

18 feet 1 3/4 inches

18 feet 1 3/4 inches

Transport Height with Tanks

7 feet 5 inches

7 feet 5 inches

Transport Clearance, Coulters

16 1/4 inches

16 1/4 inches

Transport Clearance, Drill Open-

ers

17 inches

17 inches

Transport Tires

11L x 15, 18-Ply

11L x 15, 18-Ply

Tractor Requirements** Two hydraulic remotes (four outlets); 110 -

150 horsepower

Two hydraulic remotes (four outlets); 145 -
185 horsepower
