28

Section 3 Adjustments

PH-15, PH-20, PFH-15 and PFH-20 Precision Fertilizer Hitch 148-365M

12/29/2011

Great Plains Mfg., Inc.

Marker Adjustments

Folding Speed
Adjust folding speed with hex adjustment screws on the
sequence-valve body. See . There is one adjustment
screw for raising speed (1) and one for lowering speed (2).
Identify adjustment screws by markings stamped in valve
body.

With tractor idling at a normal operating speed, adjust
marker folding to a safe speed. Turn adjustment screws
clockwise to decrease folding speed and counterclock-
wise to increase folding speed. Excessive folding speed
could damage markers and void the warranty.

After adjusting folding speed, tighten jam nuts on hex
adjustment screws to hold settings.

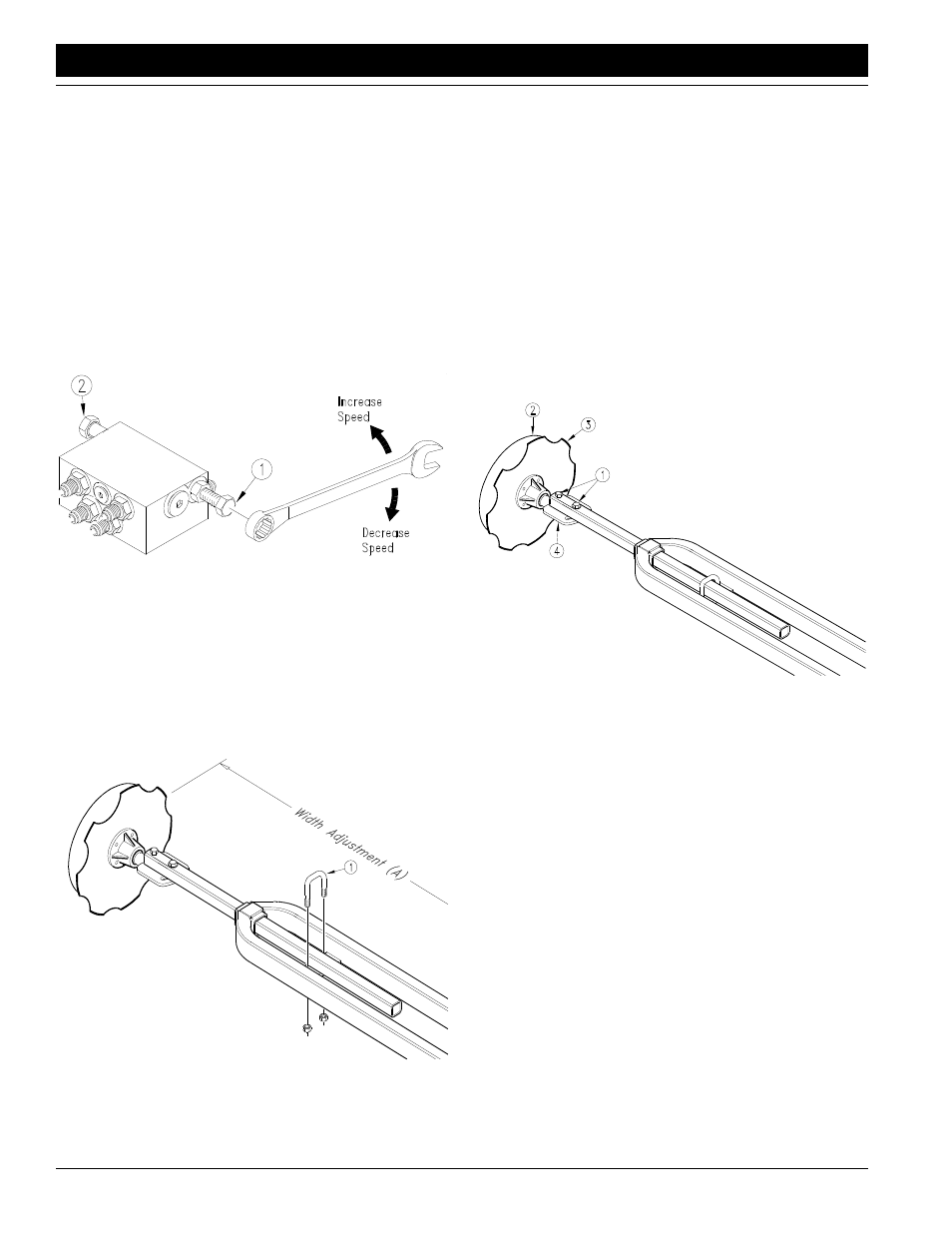

Figure 3-18

Speed Adjustment, Sequence Valve

Marker Width
Refer to .

To adjust marker width, loosen marker tube u-bolt (1) and
slide marker tube in or out as necessary. After adjusting,
retighten u-bolt.

Figure 3-19

Marker Width Adjustment

14048

15835

Disk Adjustments
The mark left by the marker disk may be changed by two
methods.

Refer to Figure 3-20.

1.

Disk Angle

To change the angle of cut, loosen bolts (1), rotate
spindle assembly (4) and retighten bolts.

2.

Direction of Cut

To change the direction the disk cuts:

a.

Remove four lug bolts on disk hub and reverse
depth band (2) and blade (3). Reinstall lug bolts.

b.

Remove bolts (1) and spindle assembly (4). Rein-
stall spindle assemble so it is on top of marker
tube. Tighten all bolts.

Figure 3-20

Marker Disk Adjustments

17928
