Drive System Maintenance
Refer to Figure 61 and Figure 62
For proper operation and to prevent downtime and repair,
keep drive chains properly adjusted and lubricated.
Regularly check drive chains for excess slack and wear.
Adjust idlers to remove any excess slack from chains.
Note: Be sure chain is installed with the chain connector
link retainer towards the centerline and the clip
opening (split end) is facing the opposite way of the
chain travel.

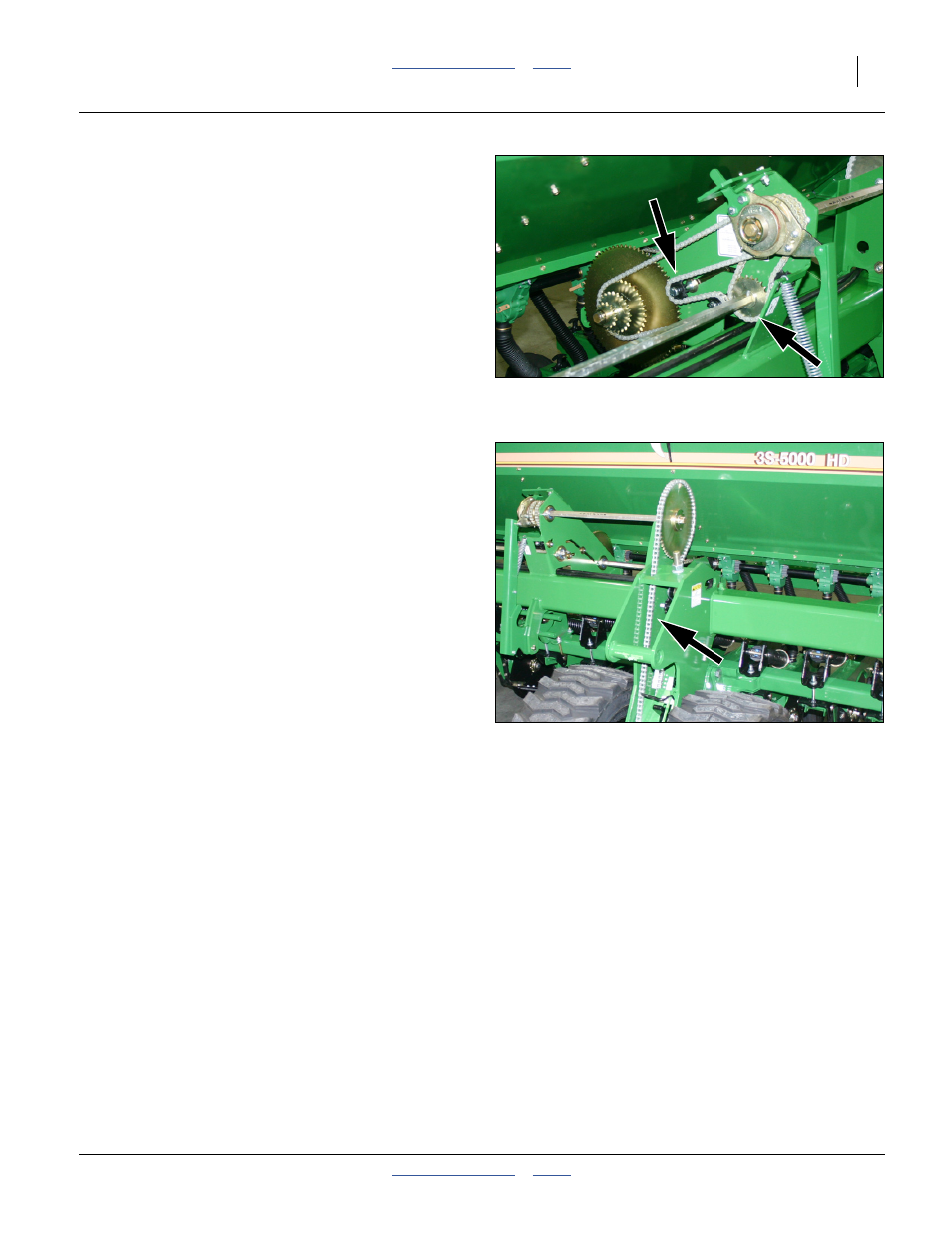

Figure 61
Drive Chains and Idlers
34305
Figure 62
Drive Chains and Idlers
34304
