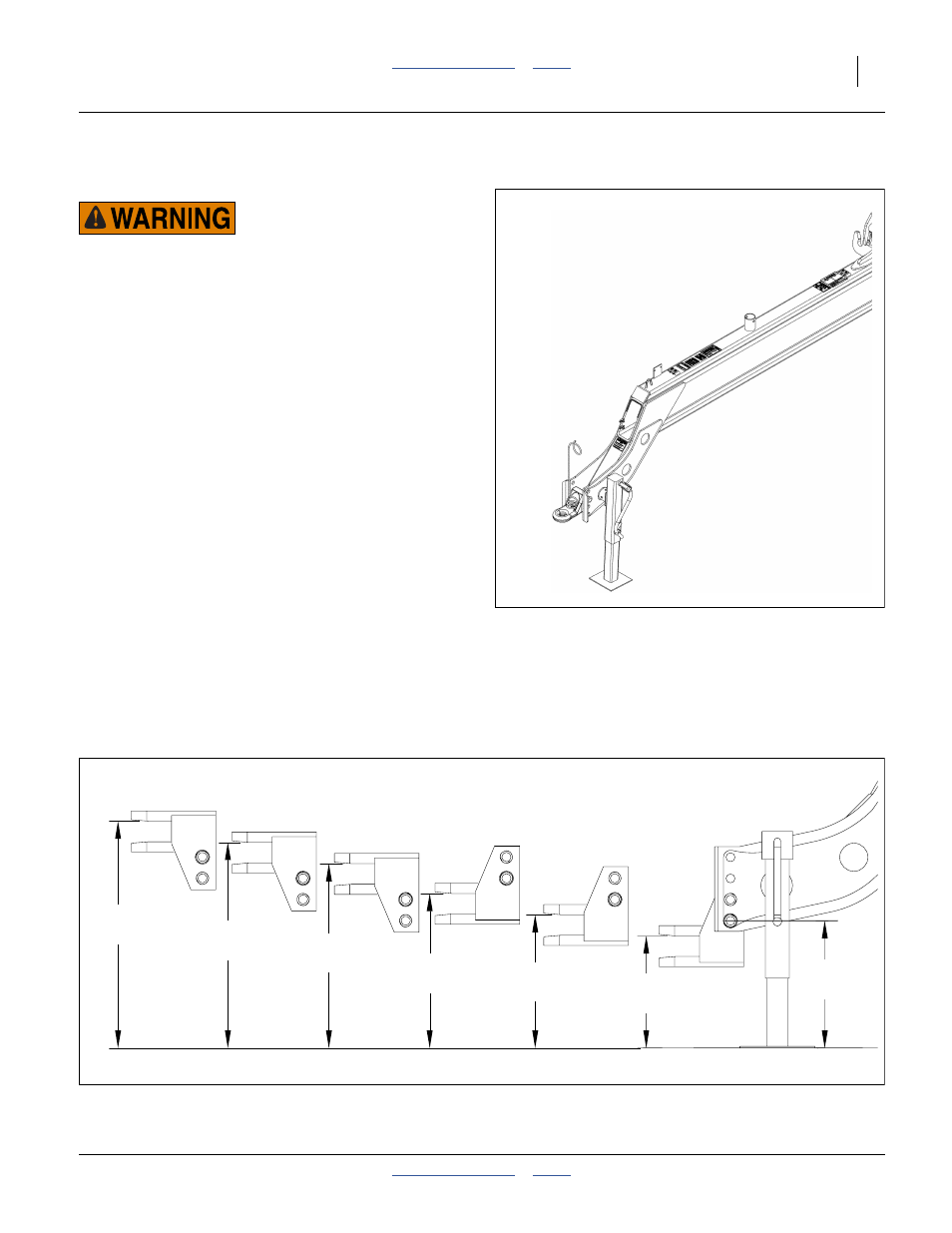

Adjusting the Drill Hitch
Refer to Figure 10 and Figure 11
Crushing Hazard:
You may be severely injured or killed by being crushed
between the tractor and drill. Do not stand or place any part of
your body between machines being hitched. Stop tractor
engine and set parking brake before installing hitch pin.
2.
To adjust the drill hitch to match your tractor-drawbar
height, mount tongue jack on side of tongue. Use
jack to raise drill tongue so lowest hitch hole is
18 inches off ground.
Note: When hitching drill to a different tractor, check for a
difference in drawbar heights. If heights are
different, readjust hitch height accordingly.
3.
Securely attach safety chain to an anchor on a
tractor capable of pulling the drill.
4.
Store jack on top of tongue.
5.
Plug drill electrical lead in tractor seven-pin
connector. If your tractor is not equipped with a
seven-pin connector, contact your dealer for
installation.
Figure 10
Jack In Lifting Location
34349
Figure 11
Hitch Heights
34232
32.0 inch
(81.3cm)
29.0 inch
(73.7cm)
26.0 inch
(66.0cm)
21.5 inch
(54.6cm)
18.5 inch
(47.0cm)
15.5 inch
(39.4cm)
18.0 inch
(45.7cm)
HITCH HEIGHTS AT VARIOUS POSITIONS
CORRECT TONGUE HEIGHT
