WHEATHEART - GHR & WHR GRAIN AUGERS 3. A SSEMBLY
PTO-SD D RIVE M ODEL 3.17. M ODEL D ECAL P LACEMENT
30641 R1 39
3.17. MODEL DECAL PLACEMENT

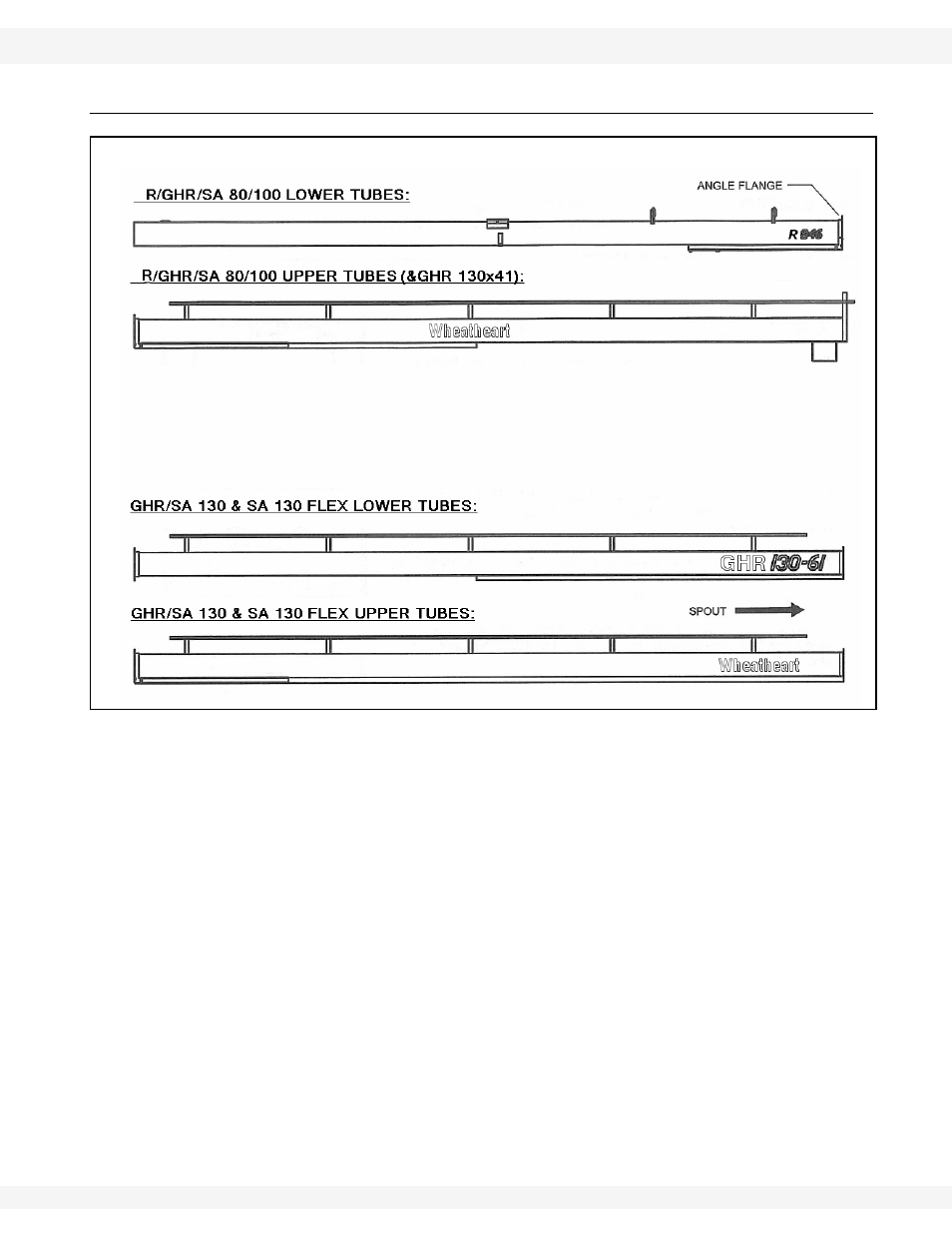

Figure 3.29
Important: Do not cover any existing safety or instruction decals with the model decals.
For most decal placement, follow the figure above. Apply decals to both sides of
auger tube.
Lower Tubes: Place decals just below the angle flange, centered on the tube.
Decals must be easily seen from the ground when auger assembly is complete.
(For 36' augers, the model decal can be located in the center of the lower tube.)
Upper Tubes: Place Wheatheart decals in the center of the upper tube, where
they are easily seen from the ground when auger assembly is complete. For the
GHR130/SA130/SA130 FLEX series, the Wheatheart decal is located at the top
end of the upper middle tube.
