WHEATHEART - GHR & WHR GRAIN AUGERS 3. A SSEMBLY
PTO-SD D RIVE M ODEL 3.14. W INCH & L IFTCABLE
30641 R1 35
Important: Where applicable, make sure that the lower reach arms are attached to the
proper reach arm bracket (Figure 3.12 and 3.13).

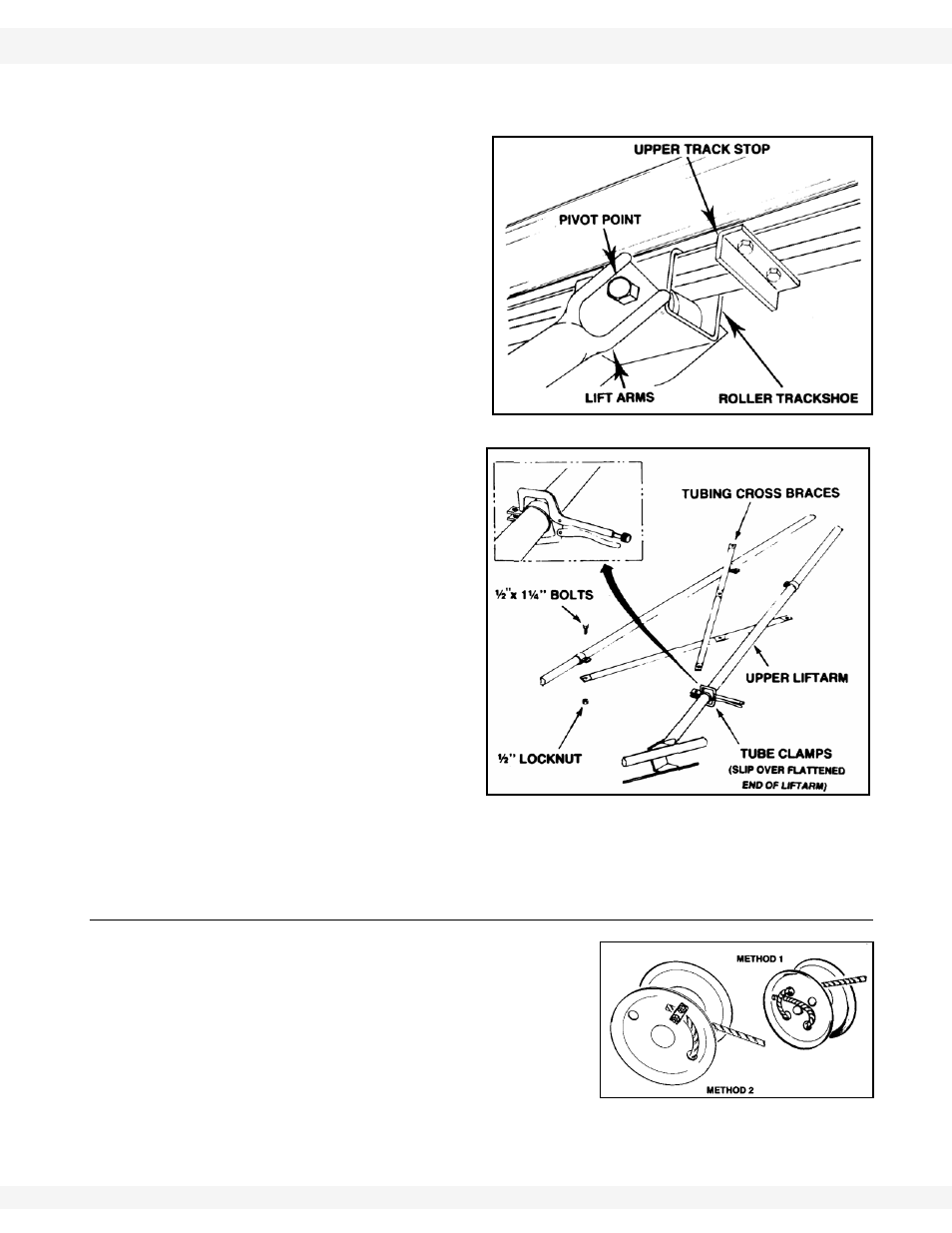

10. Attach upper lift arms to roller
track shoe with one

5/8” x 6-1/2” bolt and locknut.
Do not overtighten. Tighten
snug only; this bolt acts as a
pivot point (Figure 3.21).
• The 8" x 56’-61’-71' and
the 10" x 51’-61’-71'
augers require a 3/4” x

6-1/2” bolt and locknut.
11. The 8" x 56’-61’-71' and the
10" x 61’-71' augers require
additional tubing cross
braces mounted to the
upper lift arms.
• To correctly assemble,
slip the tube clamps over
the flat pressed ends of
the lift arms (where they
are attached to the
frame) and loosely
attach the tubing cross c-
clamp vise grip to
squeeze and hold the
tube clamps in position
for attachment to the tub-
ing cross braces.
• Once in position, tighten
the bolts (Figure 3.22).
3.14. WINCH & LIFTCABLE
1. Attach cable to winch using one of the 2
methods shown, depending on supplied
winch.
• If method 2 is used, the nut must be on
the outside of the drum to prevent dam-
age to the cable. Leave about one inch
(2.54 cm) of cable extending past the
clamp. Cable must leave winch from
bottom side.
Figure 3.21

Figure 3.22

