3. A SSEMBLY WHEATHEART - GHR & WHR GRAIN AUGERS
3.13. T RANSPORT U NDERCARRIAGE PTO-SD D RIVE M ODEL
34 30641 R1


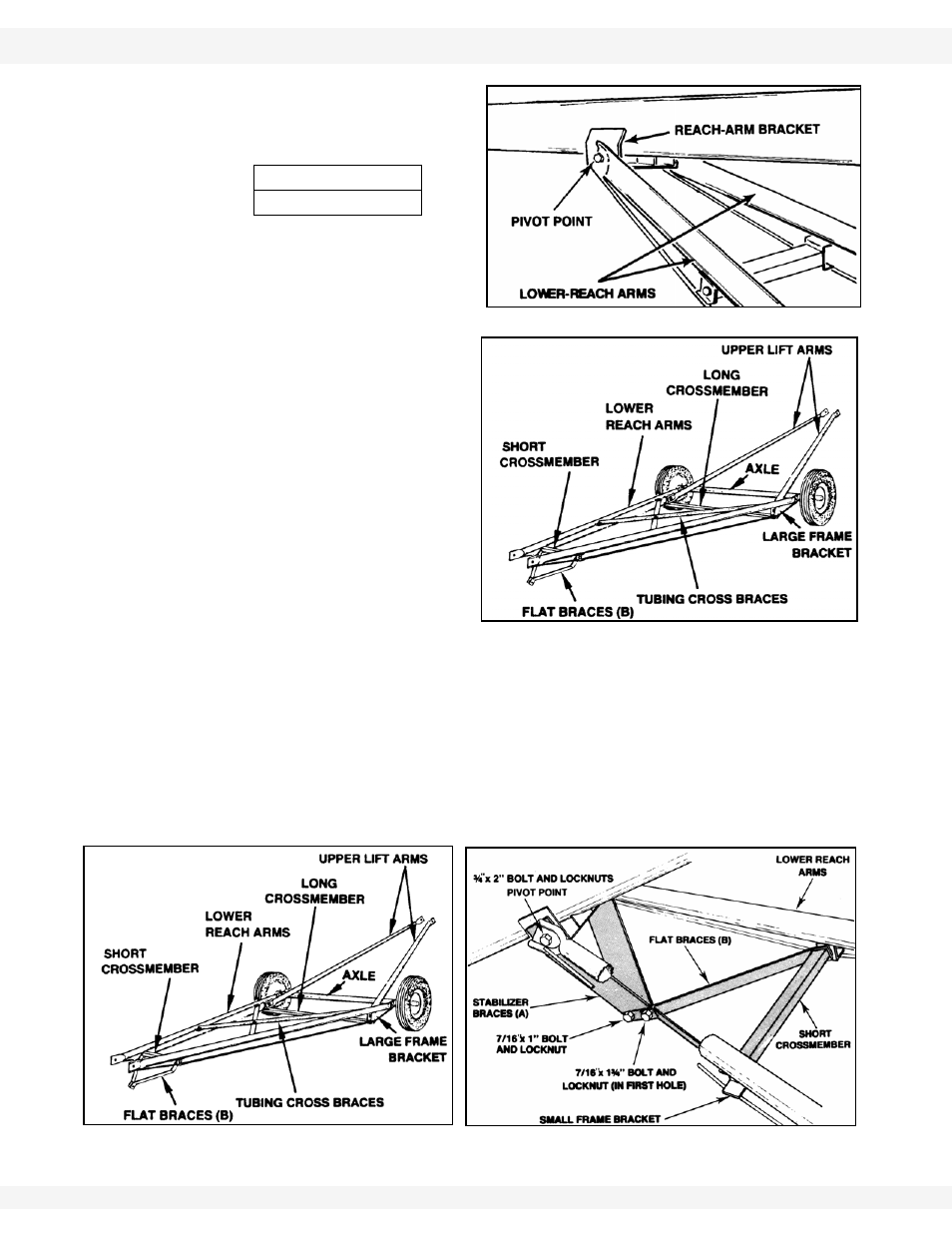

9. Add the Stabilizer Kit as part
of above Step 9 to the
following augers:
a. Attach short crossmember
to small frame brackets
loosely with two 1/2” x

1-1/2” bolts and locknuts,
sandwiching the flat
braces (B) between the
short crossmember and
small frame braces on
each side (Figure 3.18).
b. Place undercarriage
beneath the tube
assembly, then position
stabilizer braces (A) as
shown in Figure 3.19 and
attach lower reach arms to reach arm bracket welded on lower end of
auger tube with two 3/4” x 2" bolts and locknuts. Do not overtighten.
Tighten snug only; these bolts act as pivot points.
c. Next, fasten flat braces (B) to first set of holes (furthest from intake) on
stabilizer braces (A) with one 7/16” x 1-3/4” bolt and locknut. Place one

7/16” x 1" bolt and locknut in the other hole of the stabilizer brace.
8" x 56’-61’-71'
10" x 51’-61’-71'
Figure 3.17
Figure 3.18
Figure 3.20 Figure 3.19
