WHEATHEART - GHR & WHR GRAIN AUGERS 3. A SSEMBLY
PTO-SD D RIVE M ODEL 3.6. L EFT H AND PTO D RIVE
30641 R1 25

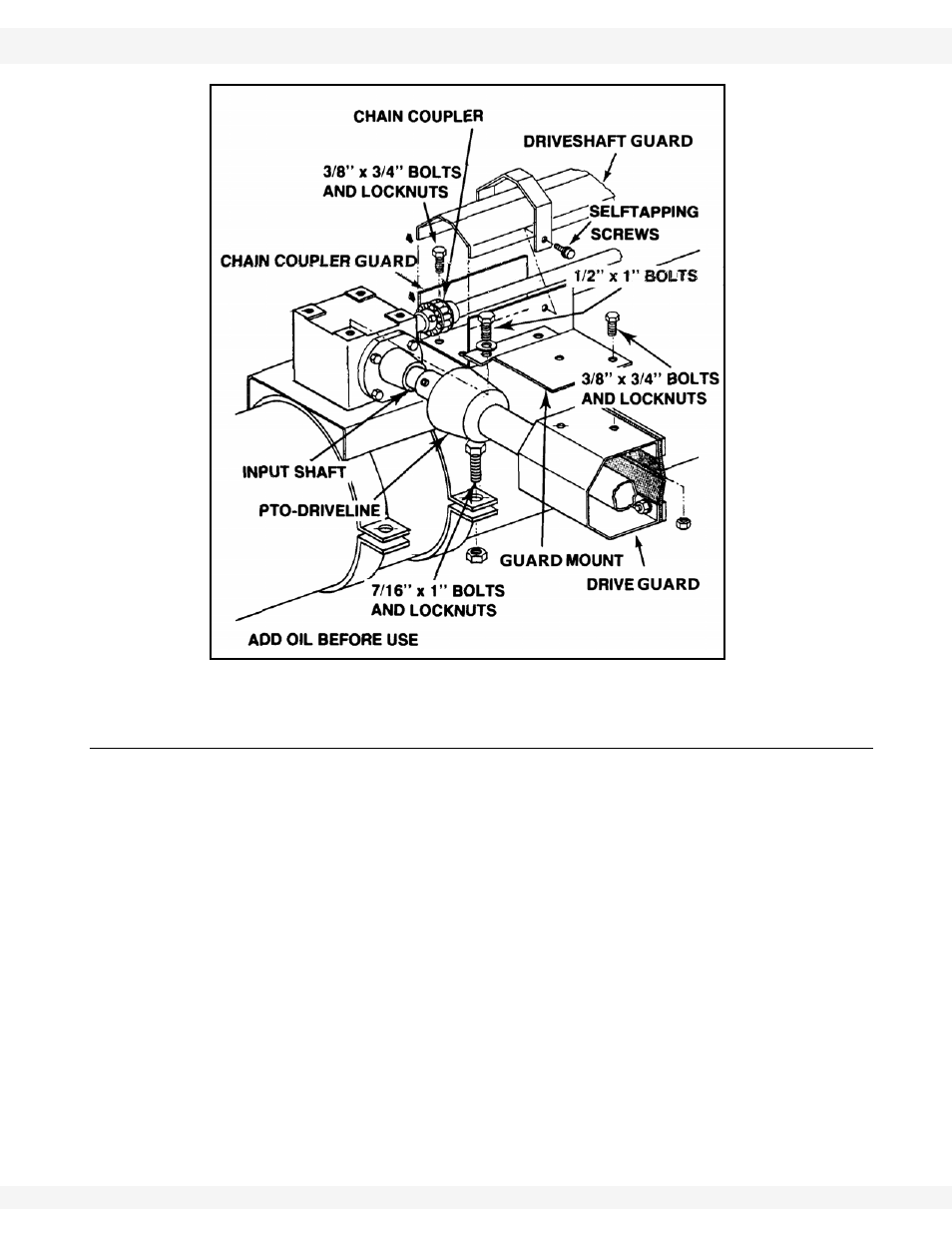

Figure 3.9
3.6. LEFT HAND PTO DRIVE
To change auger from a right-hand drive to a left-hand drive as seen when
standing at intake end facing the discharge end, proceed as follows:
1. Remove the gearbox guard and the connector/coupler guard and set aside.
Note: Where applicable, remove the coupler chain.
2. Remove the gearbox from mount and place on side (with input shaft pointing
up).
3. Switch drain plug (bottom of gearbox) with air vent plug (top of gearbox) and
reinstall on mount with input shaft to left side and air vent up.
4. Reinstall gearbox.
Important: To reinstall gearbox assembly on auger, see “Shaft Drive Gearbox” on page 23.
