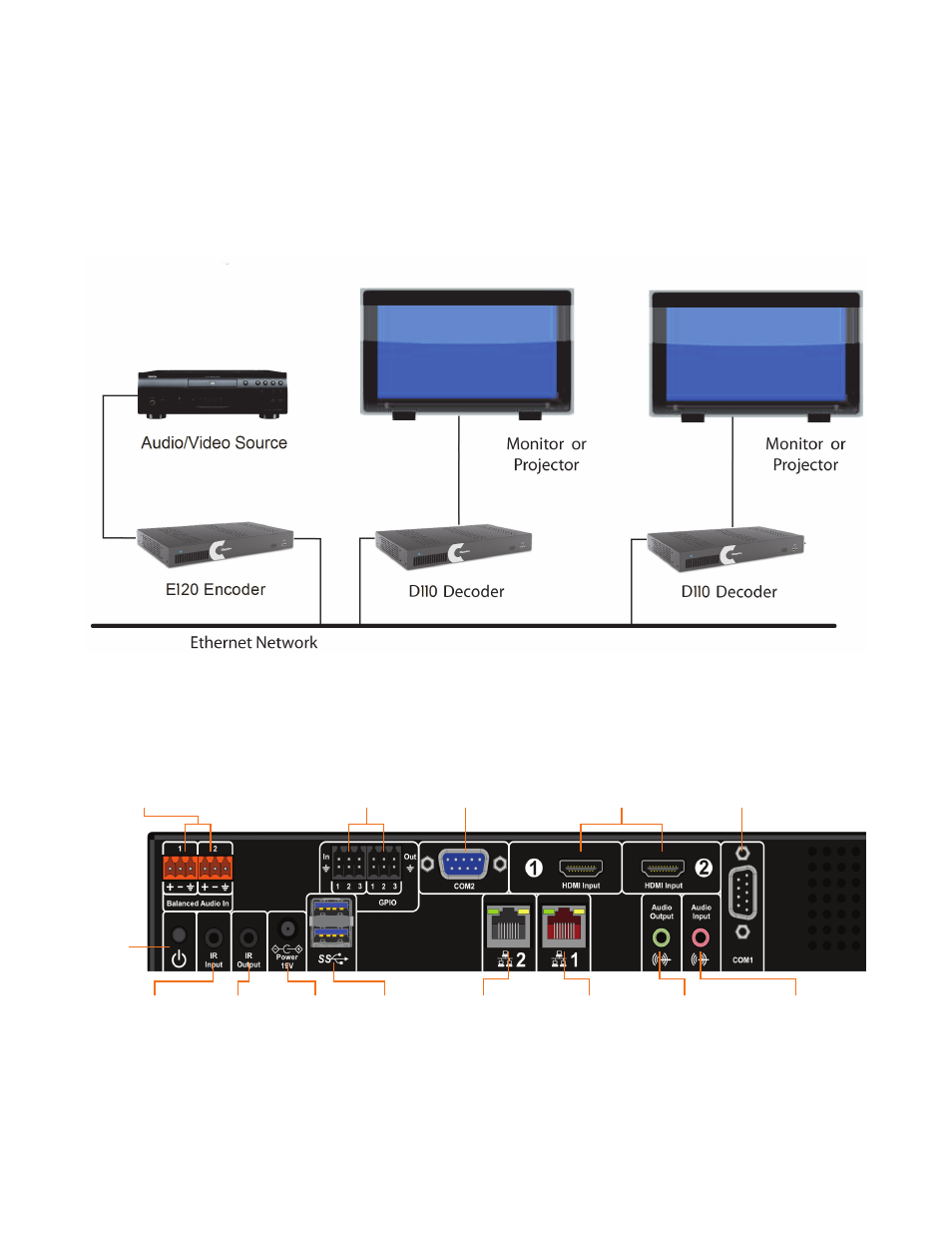

THE E120 IN A NETWORK
The VIEW Pro E120 encoder takes digital video and audio from source devices such as media/disc
players, cable/satellite boxes, DVRs, and cameras, and then makes the digital video and audio
available anywhere on the StreamNet® IP network. a StreamNet TCP/IP network using a standard
10/100/1000 Mbit Ethernet connection. The VIEW Pro decoders, as counterparts, are installed at
the locations of the target video displays. They operate together: the encoders providing the IP
data for the decoders to deliver to the displays..
CONNECTING THE E120
The E120 Encoder connections are from the back of the unit as shown in the following diagram.
Left/Right
Balanced
Inputs
COM2 Port for
Source/3rd-Party
Device Control
COM1 Port for
Source/3rd-Party
Device Control
6 GPIO Ports
for Control
3 Inputs and
3 Outputs
3.5mm IR Input
IR Learning
3.5mm IR
Output for
Source Display
or 3rd-Party
Control
Network Port2
(Currently Not Used)
Network Port1 3.5mm Audio
Output for Line-level
Audio or Digital
Audio Output
3.5mm Line-level
Audio Input
2 x USB
3.0 Ports
for USB
Audio/Video
Devices
19 VDC
Input from
Power
Adapter
Power
On/Off
2 HDMI
Audio/Video Port
DSP forced
air intake
(Currently Not Used)
