P O R T A L T I
Portal Installation Manual Rev C
2
achieve this dimension, the Portal base frame should be located 26 in. from the
conveyor centerline as shown in Figure 1.

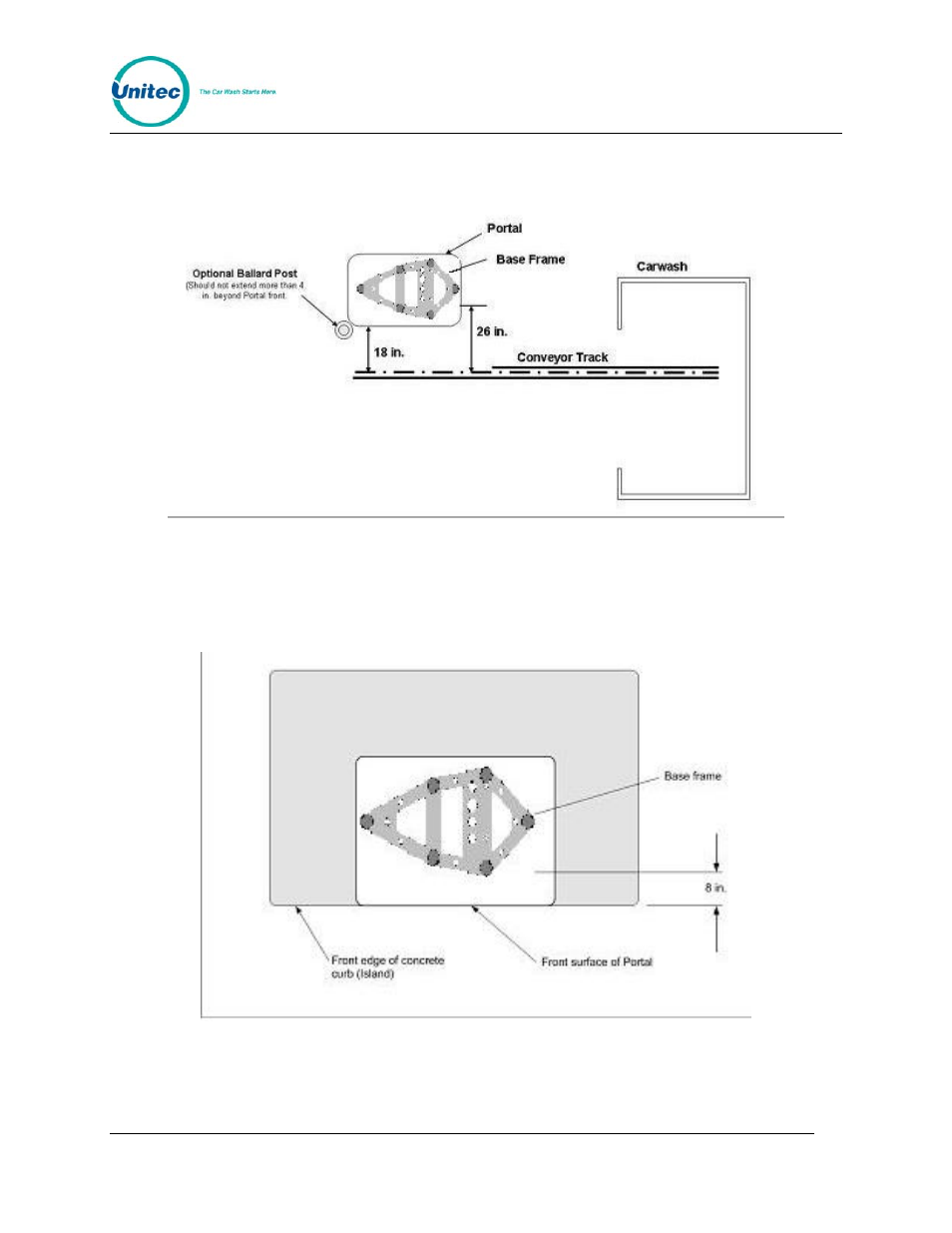

Figure 1. Portal Installation at the Wash Entrance
For curb mount applications, the front surface of the Portal should be even with the
edge of the curb. To achieve this dimension, the base frame should be installed so
its leading edge is 8 in. from the edge of the curb as shown in Figure 2.
Figure 2. Frame Location for Curb Mount
Document #: PTL1001
