General Information
The 1Torch TM SL60 and SL100 Torches work with most
plasma cutting power supplies. The Torches are equipped
with either O2B connectors or the Victor Thermal Dy-
namics ATC connector and are connected using various
Adapter Kits sold separately.
A label on the torch handle indicates the torch model
number. SL60 Torches provide cutting capabilities of up
to 60 amperes. SL100 Torches provide cutting capabilities
of up to 100 amperes. The torches use compressed air as
both the plasma and secondary gas.
The torches are suitable for drag cutting (with the torch tip
in contact with the workpiece, at up to 40 Amps output);
40-100 Amp shielded drag cutting (with shielded torch
parts (cap, etc.) in contact with the workpiece); standoff
cutting; or gouging.
Refer to the Complete Assembly Replacement page for
configurations and catalog numbers.
These instructions are important for the proper instal-
lation of the Torches. Read the instructions thoroughly
before attempting the installation. Keep these instructions
for reference.
Supplied Parts
The Replacement Torches include:
• Torch With Leads - 1 each
• Installation Instructions - 1 each
• Consumables (Installed on the Torch):
Electrode,
Starter Cartridge, Tip, Shield Cup Body and Drag
Shield Cap)
NOTE
The consumable parts installed in the Torch may
not necessarily be optimized for your Power Supply
or cutting application. For best results, refer to the
selection charts in this manual to choose the proper
consumables for your application.
Options
The following options are available. Refer to the complete
assembly replacement list for catalog numbers.
• ATC Adapter Kit (for Torches with ATC Connectors)
• Leads extensions (for Torches with ATC Connectors)
• Cutting Guide Kits
• Leather Leads Covers
• Standoff Cutting Guide
Torch Specifications

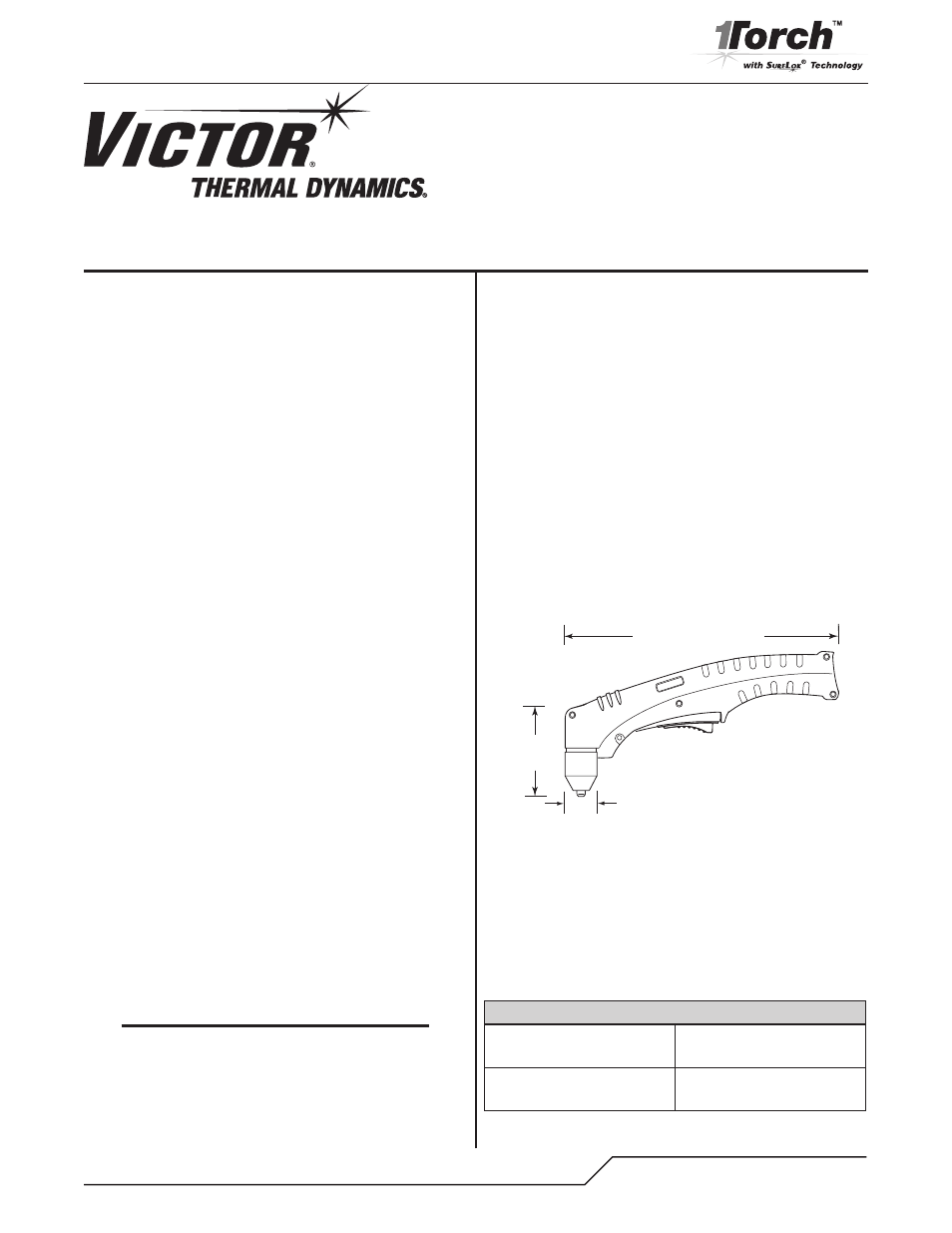

A. Torch Configurations and Dimensions
The torch head is at either 75° or 90° to the torch handle.
The torch includes a torch handle and torch trigger as-
sembly.
10.125" (257 mm)
3.75"
(95 mm)
1.17" (29 mm)
Art # A-03322_AB
B. Torch Leads Lengths
20 foot / 6.1 m, or 50 foot / 15.2 m
For torches with ATC Connectors, leads extensions
are available to extend the leads to a maximum of 50
feet / 15.2 m. Total leads lengths must not exceed
the power supply manufacturer's recommendations.
C. Current Rating (Refer to Note)
SL60 & SL100 Current Ratings
SL60 Torch & Leads
Up to 60 Amps, DC,
Straight Polarity
SL100 Torch & Leads
Up to 100 Amps, DC,
Straight Polarity
Original Publication Date: 2002 Manual no.: 0-2880
Revision Date: 2013 Revision: AD
SL60 and SL100
Replacement Plasma
Cutting Hand Torches
Installation Instructions
