March 6, 2006 4 Manual 0-4738 Rev. AA
Gas & Water Inputs (Check Valves)
Connection Panel
To Torch Valve Assembly
To Torch Valve Assembly
To Power Supply
SHIELD PLASMA PREFLOW
H O
SHIELD
2 H O 2
AIR N2 O2
H35
TVA POWER
SUPPLY
COMM
J57 J56
INPUTS
When Cutting With O2 Plasma
Air MUST BE Connected
Ground Stud
SHIELD PLASMA
PREFLOW
H O
SHIELD
2 H O 2
AIR N2 O2
H35
TVA
POWER
SUPPLY
COMM
J57 J56
INPUTS
When Cutting With O2 Plasma
Air MUST BE Connected

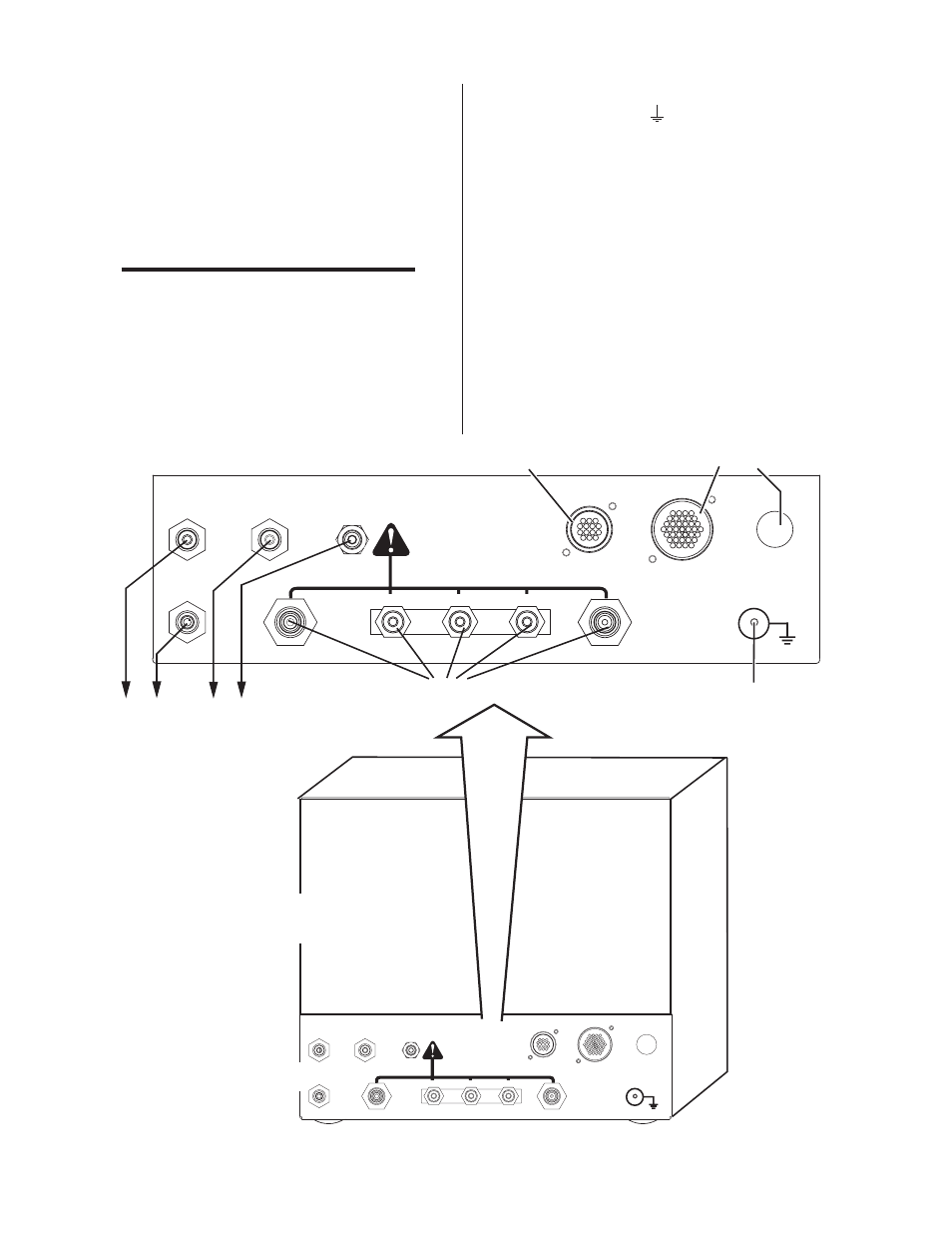

Gas Control Module
Rear Panel
Art # A-07283
Supply, Control, and Output Connections
1 Position the module on a flat, horizontal sur-
face.
2. Ensure that the flowmeters are plumb.
3. Fasten the module to the mounting surface.
4. Connect inputs and outputs as shown.
NOTE
Water shield is not used in all applications.
5. Make all other connections as required to the
rear of the module. The connections and cables
are labeled or keyed. Gases must be connected
to the appropriate ports. Air must be connected
when cutting with O2 (oxygen) plasma.
6. The module must be grounded; the grounding
terminal is marked . Use #10 AWG (or thicker)
wire for grounding. Keep the ground wire as
short as possible.
NOTE
Every effort has been made to provide com-
plete and accurate information in this
manual. However, the publisher does not
and hereby disclaims any liability to any
party for any loss or damage caused by er-
rors or omissions in this manual, whether
such errors arise from negligence, accident,
or any other cause.
